Name: MT-3K Rev.5 Stereo Tone Control Pre Amplifier with Balanced/Unbalanced Output stage
SKU: 3749
Availability: InStock

MT-3K Rev.5 Stereo Tone Control Pre Amplifier with Balanced/Unbalanced Output stage

Availability:

10 in stock

Description

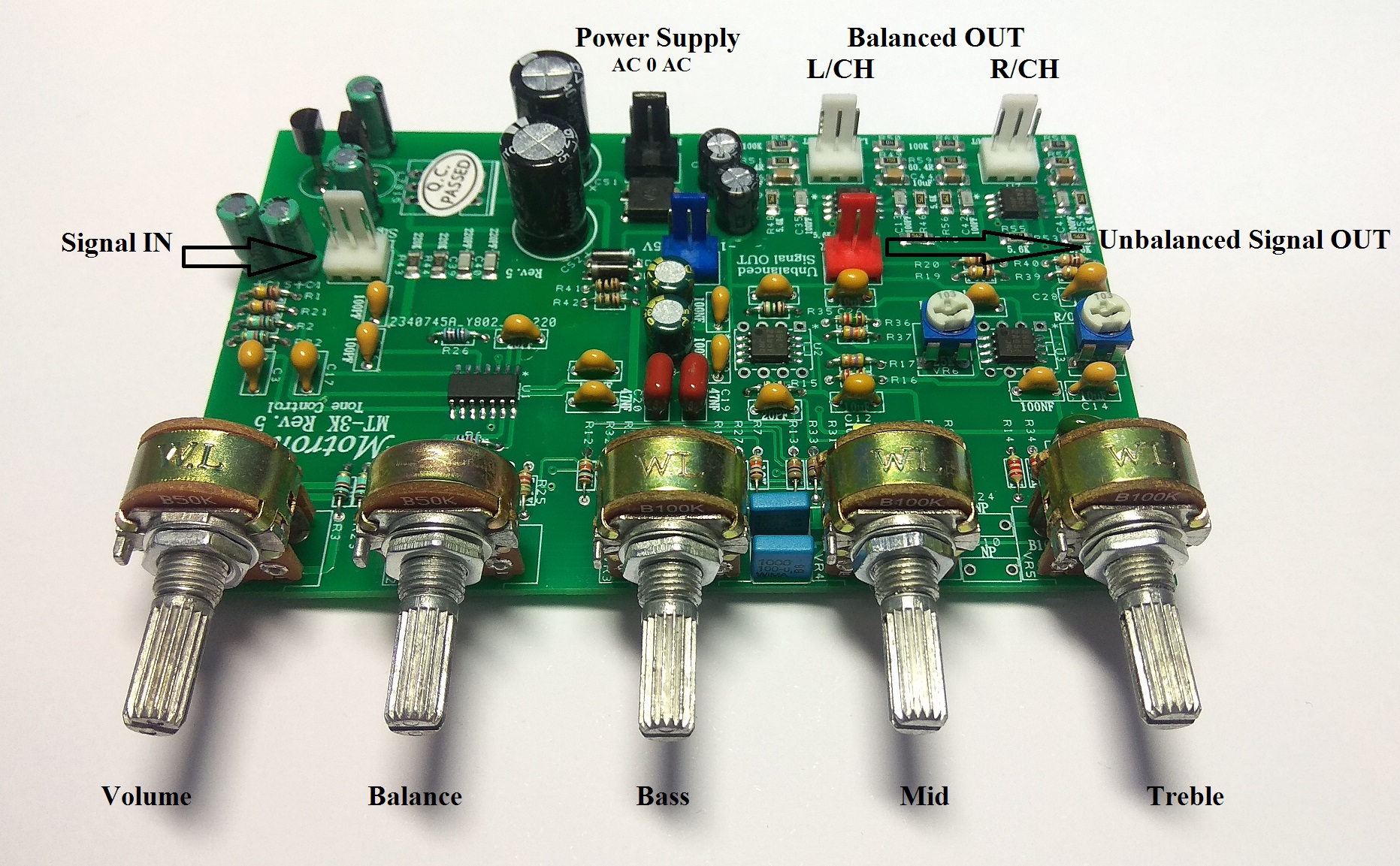

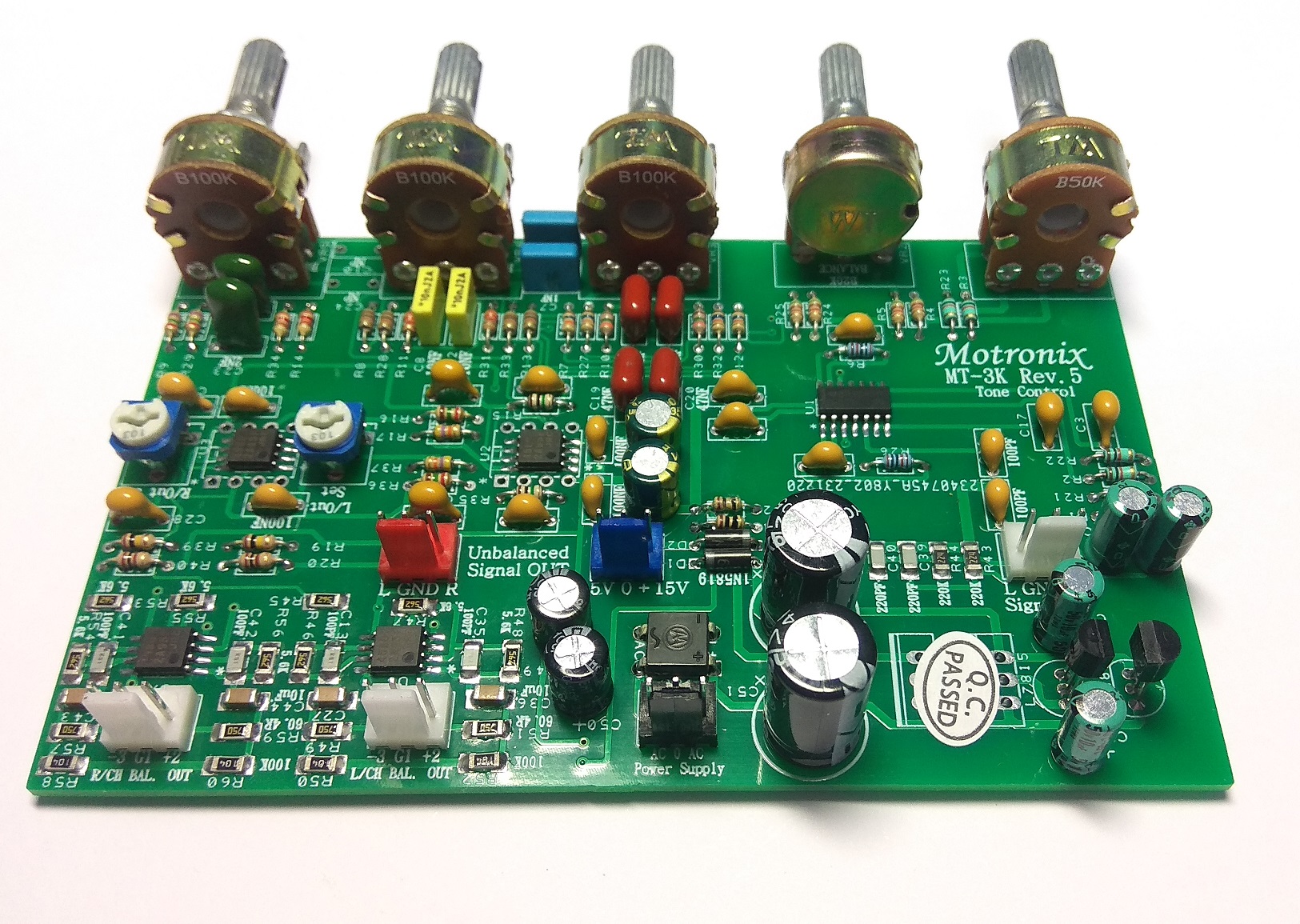

MT-3K Rev.5

Stereo High Quality Tone Control Pre Amplifier

Pre Amplifier Tone Control With Volume,Balance,Bass,Mid,Treble

Pre OUT: Balanced and Unbalanced

Unbalanced Stereo Input

This Is Professional High Performance Analog Stereo Tone Control Amplifier

Very Wide & Clean Good Sound Quality

Low Noise Original Genuine Input & Tone Stage Op Amp !

Input & Output PCB Connectors will supply

Input sensitivity: 245mv-2.2V -10db to +9db

Input Resistance: 100KΩ (Unbalance)

Output Resistance: Unbalance 100KΩ/ Balanced 75Ω

Max output voltage: 8Vrms +20db Unbalanced/Balanced

Frequency response 15Hz-100Khz (Tone at Flat)

Tone control:

Bass +/- 18db @ 40Hz

Mid +/- 12db @ 1.5Khz

Treble +/- 15db @ 20Khz

Working Voltage:

AC Dual 12-15 Vac (AC 0 AC)

DC Dual 15 Vdc (-15Vdc 0 +15Vdc)

PCB Size:118mm*75mm double-sided HAL,FR4 1.6MM

Potentiometer Gap: 25mm (Center to Center)

Applications: DIY Home Amplifiers,Integrated Amplifiers,Pre Amplifiers
