MTI-DIST58 Guitar Overdrive/Distortion/Fuzz Effect DIY

Availability:

5 in stock

Description

MTI-DIST58
Overdrive/Distortion/Fuzz Effect with Tone Control

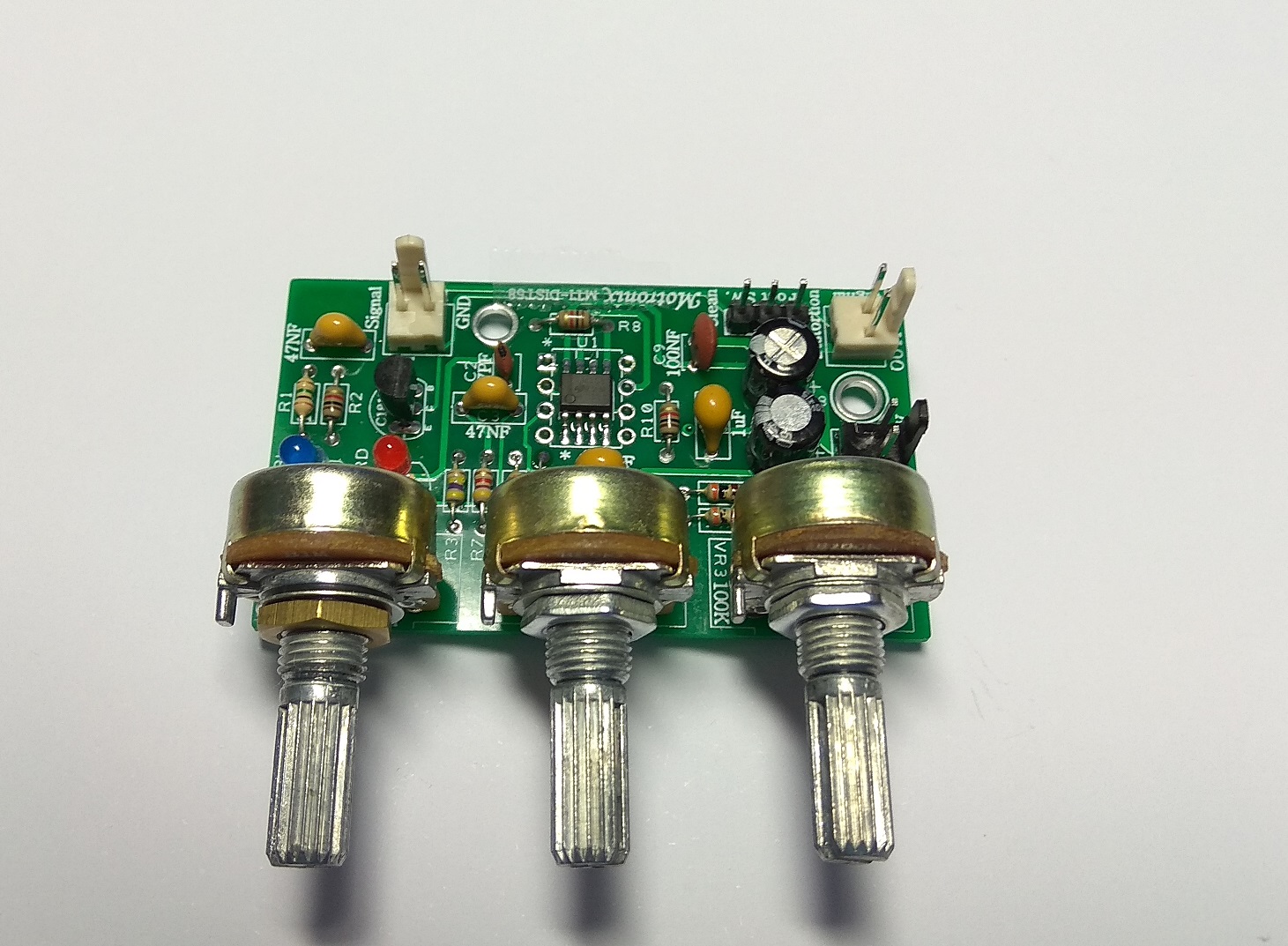

DIY Assembled Board

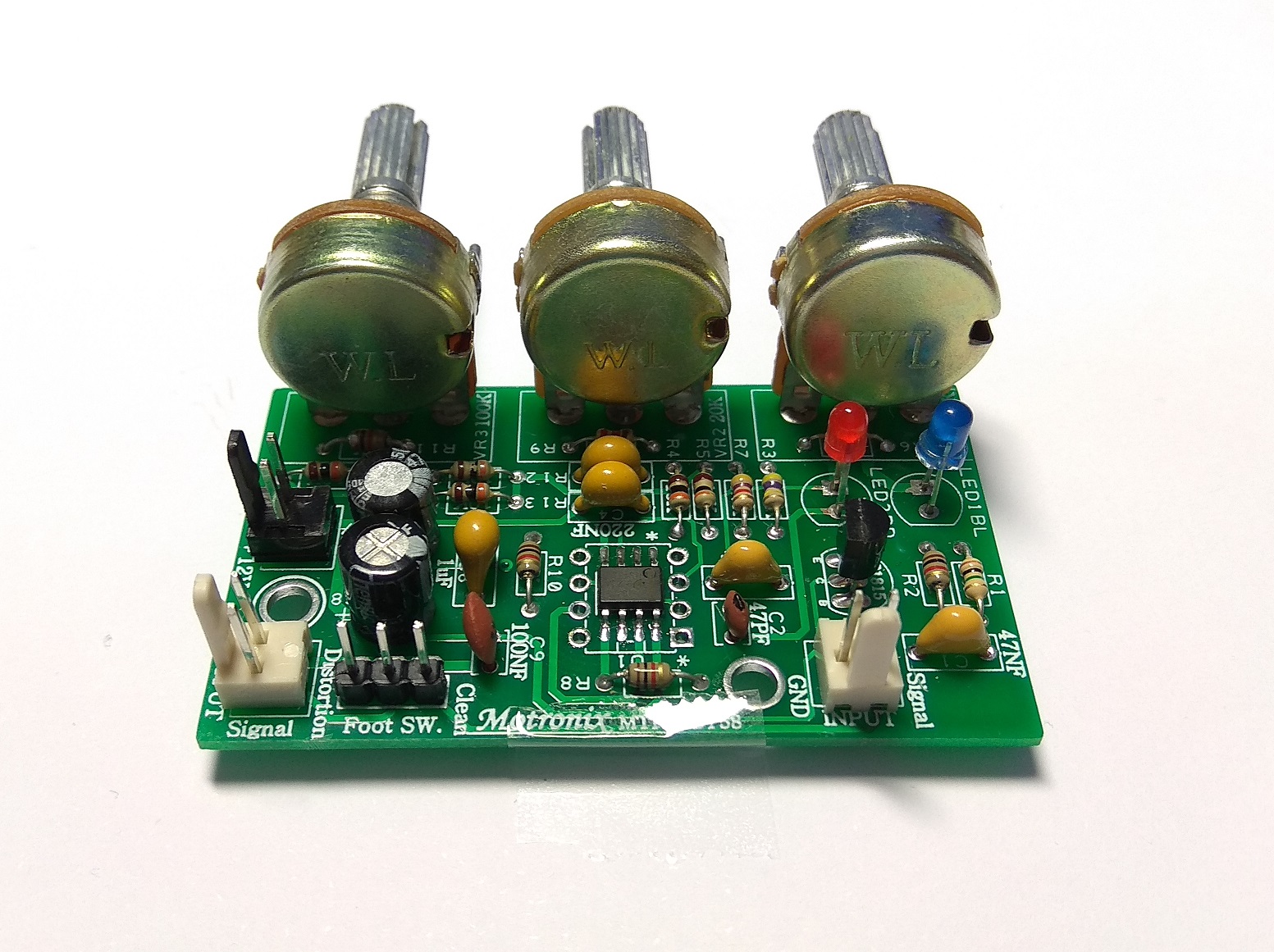

This design Using 2 different color diodes (red and blue),
the Vth of each diode is different causing asymmetrical clipping.
This creates a mix of even and odd order distortion to simulate the complex distortion characteristics of tube amplifier

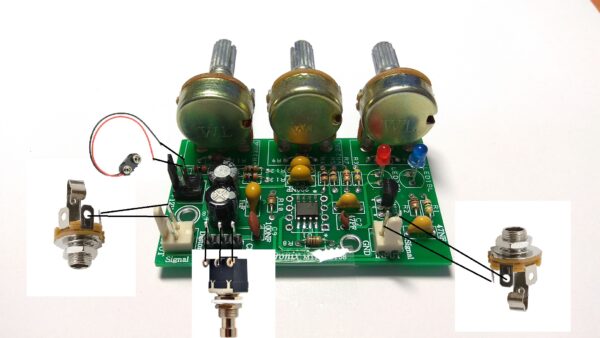

Input & Output Connectors will supply
Power Input : 9-15Vdc (Recommended: 12Vdc Regulated)
Current Consumption: 30mA

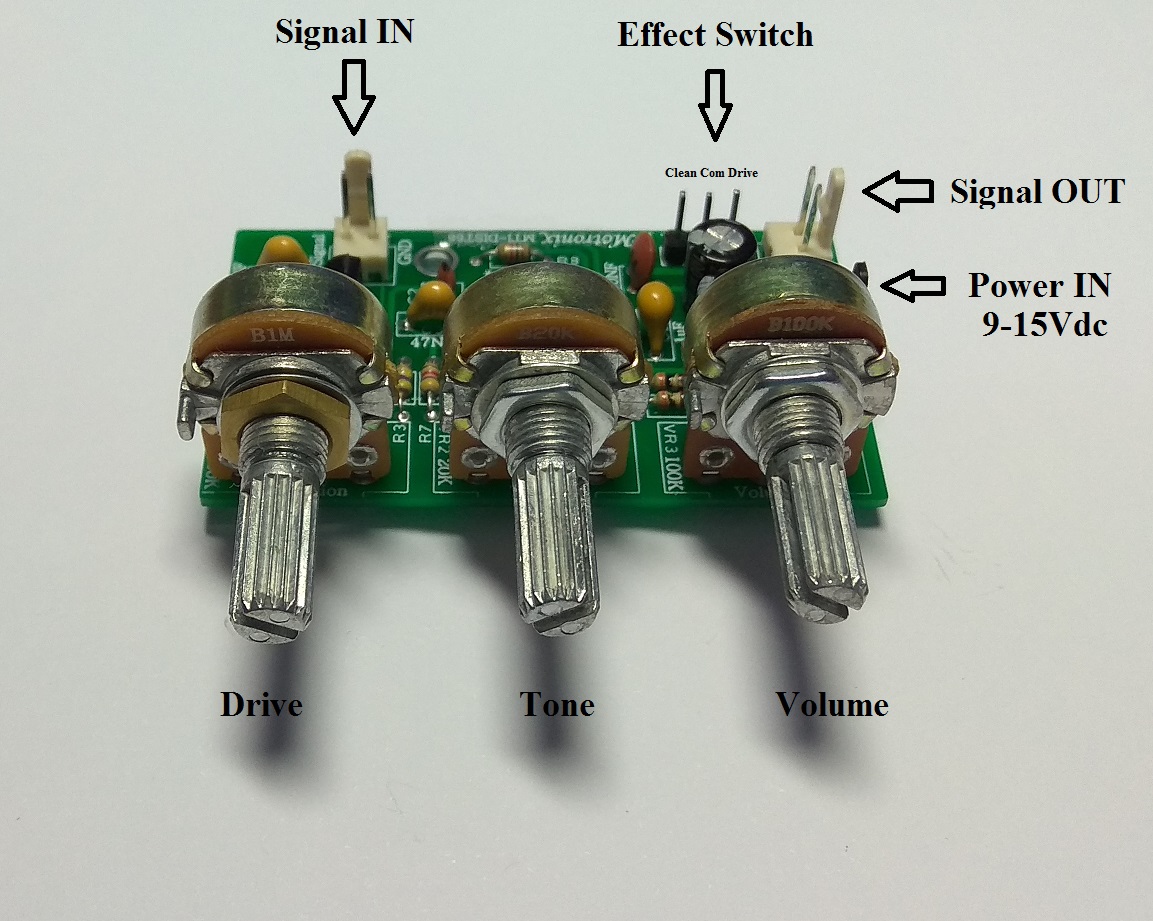

Control : 1 Volume + 1 Distortion/Gain + Tone Control
On Board Connector for Foot switch Effect (Effect IN/Effect OUT)
Foot switch Not Included!!!
PCB Size:
59mm*35mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 20mm (Center to Center)
Applications: DIY Guitar Effect
