Description
MV-U4200

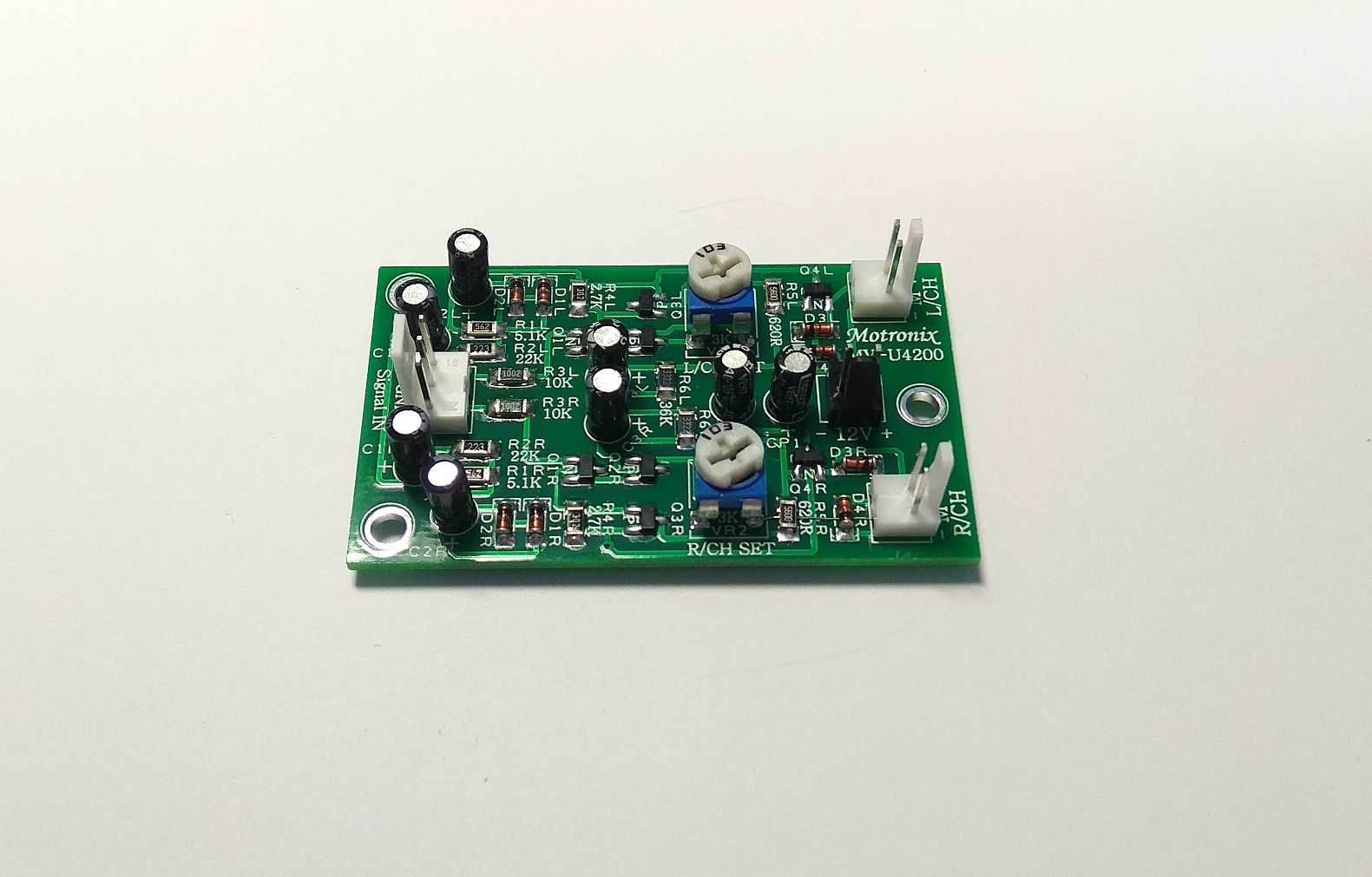

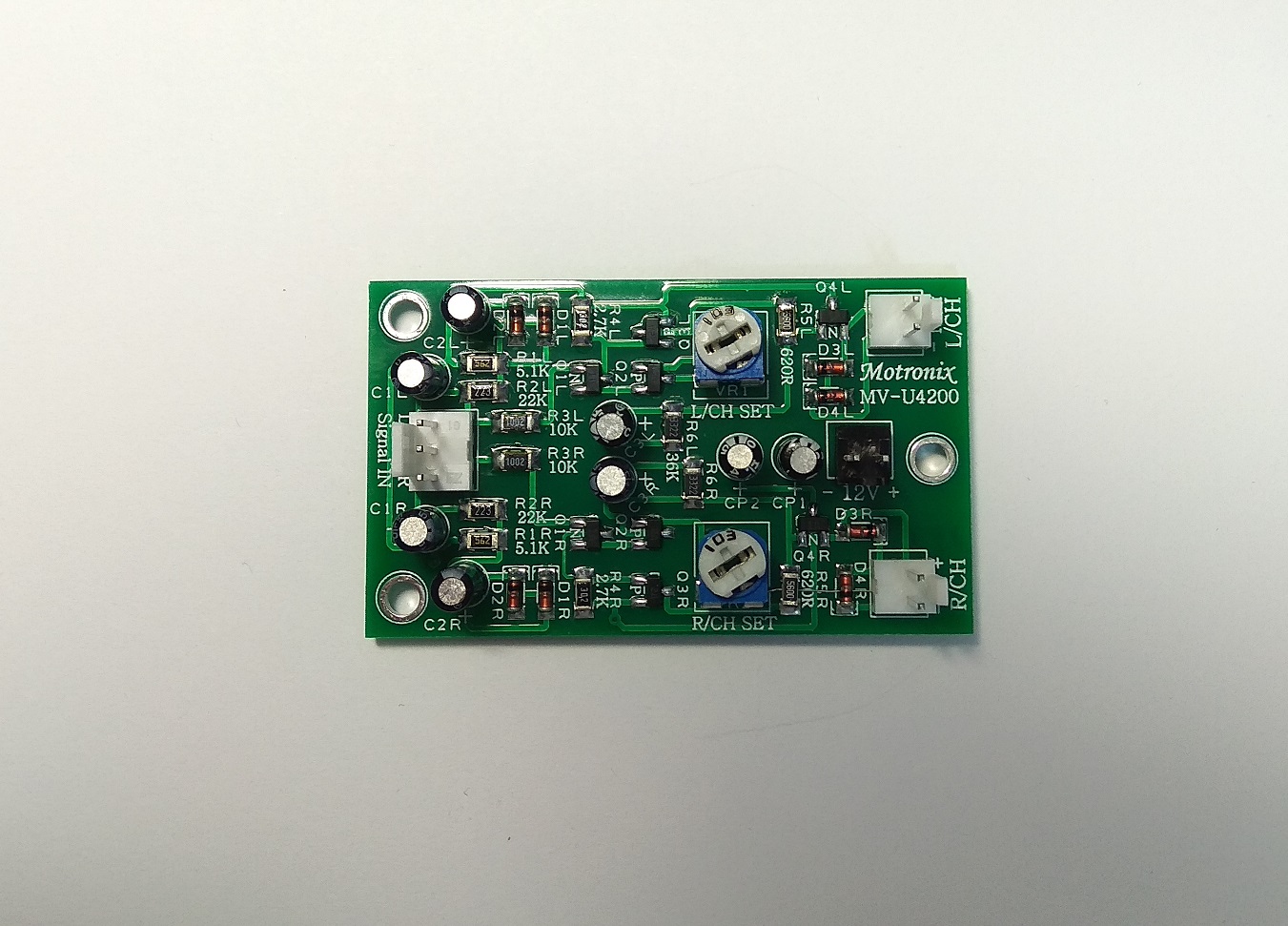

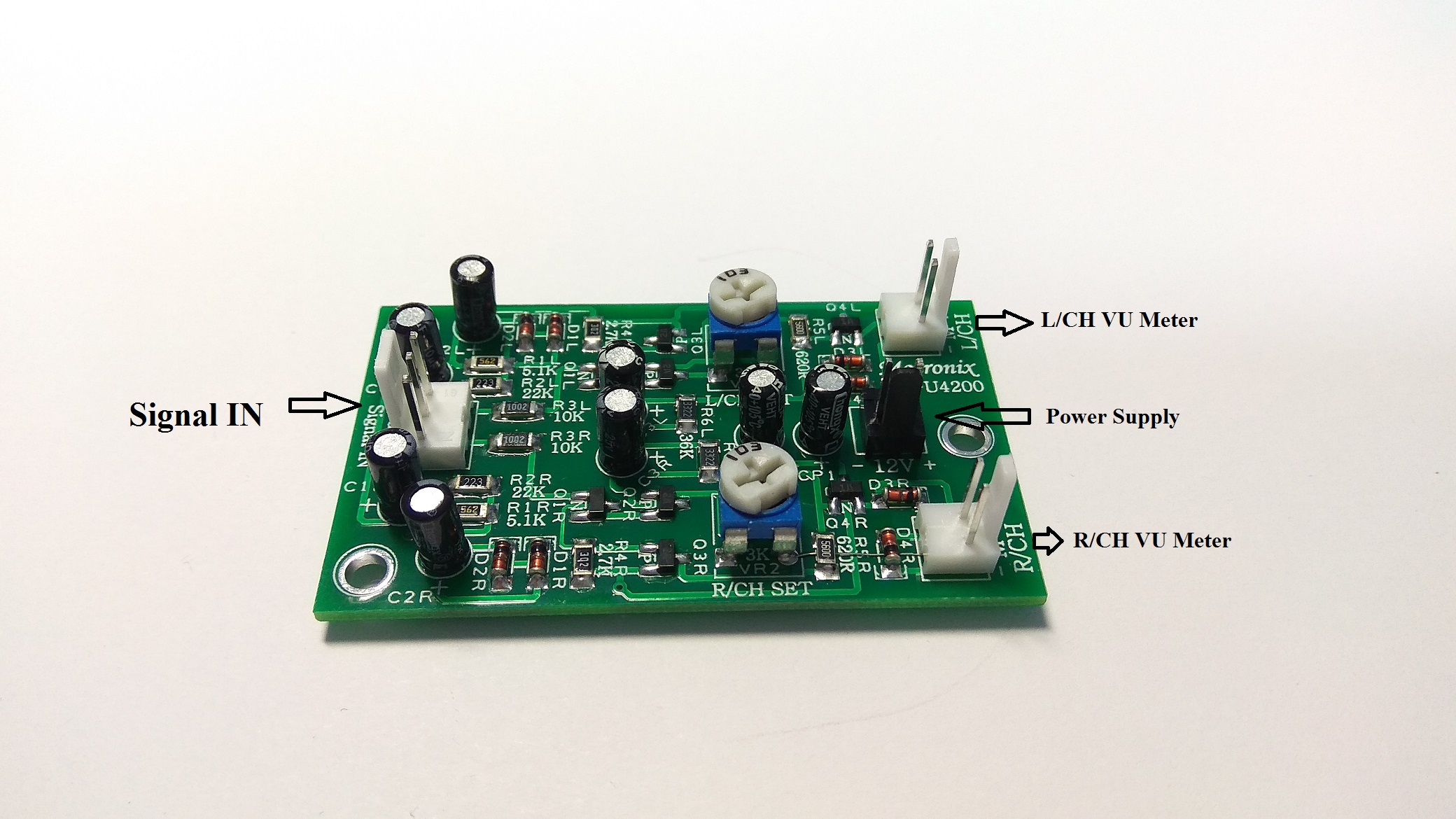

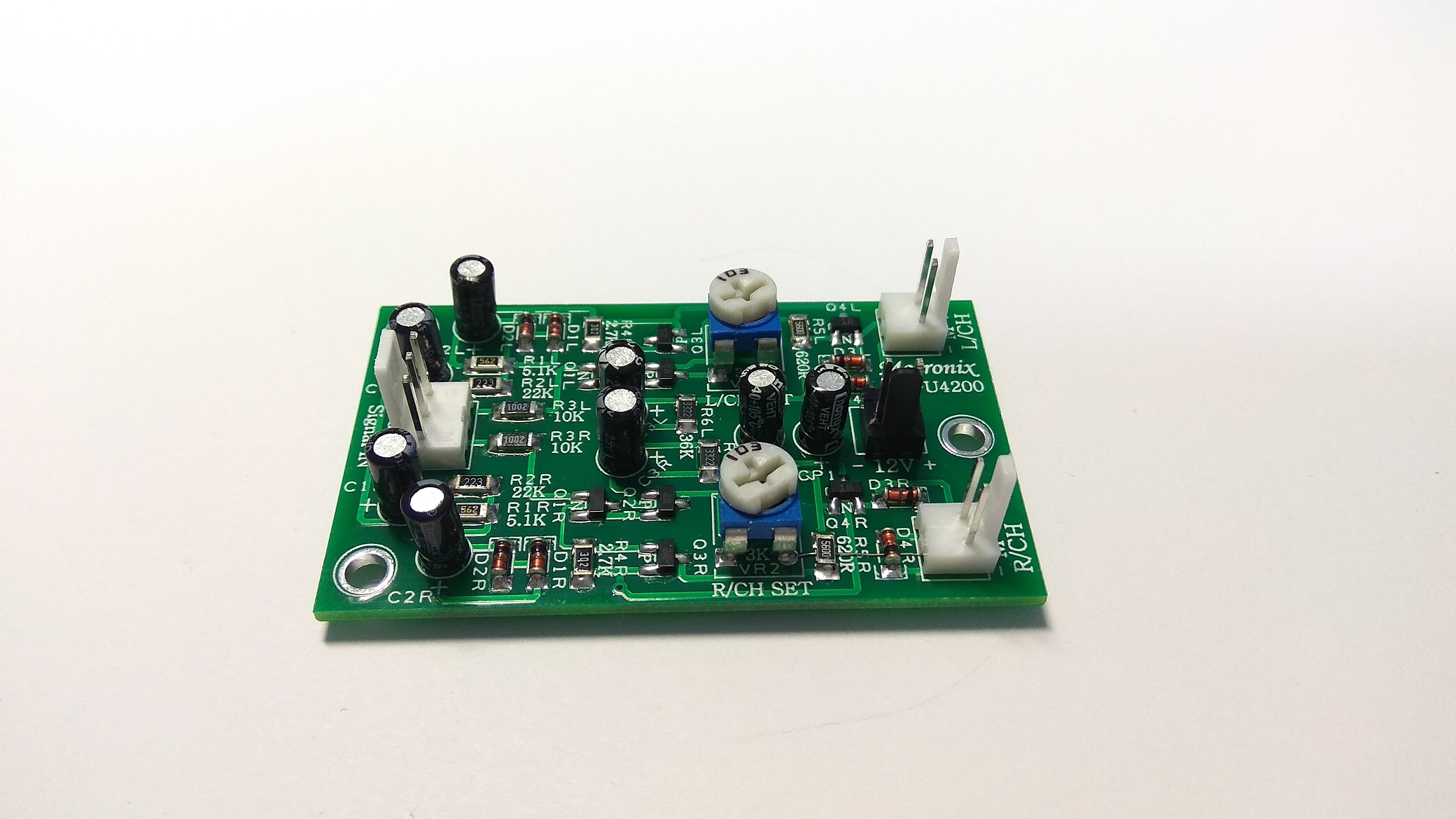

Analog VU Meter Audio Level Special Version Driver Board
Stereo / 2 CH Driver Board
This is high quality VU Meter driver board
Amazing performance
2 Version option:
1. no illumination = no output voltage for VU LED illumination
2. with illumination = with output voltage for VU LED illumination
Molex Female Connectors and Pins Included
Working Voltage: Single 9-24Vdc
You can get a version that works on 5 volts by special request
On PCB VU Meter SET Calibration Trimmer
Calibrate to 0dbm 0.775Vrms with Standard VU Meter
PCB: 60X35mm
Applications: Power Level Indicator/VU Meter For All Power/Pre Amplifier
