Description
MXLR-MQ3 2ch Stereo
MXLR-MQ1 1ch Mono
Professional Balanced Input Stage
High Quality Stereo Balance to Unbalance Power Amplifier Driver Stage
This item to Drive all DIY Power amplifiers boards that don’t have Balance Input
Low Noise OP Amp
Working Voltage : min.2x12Vdc to 2x15Vdc max. (Regulated DC)
Current Consumption: 12mA
Freq. Response: 15Hz-100Khz
PCB Size:

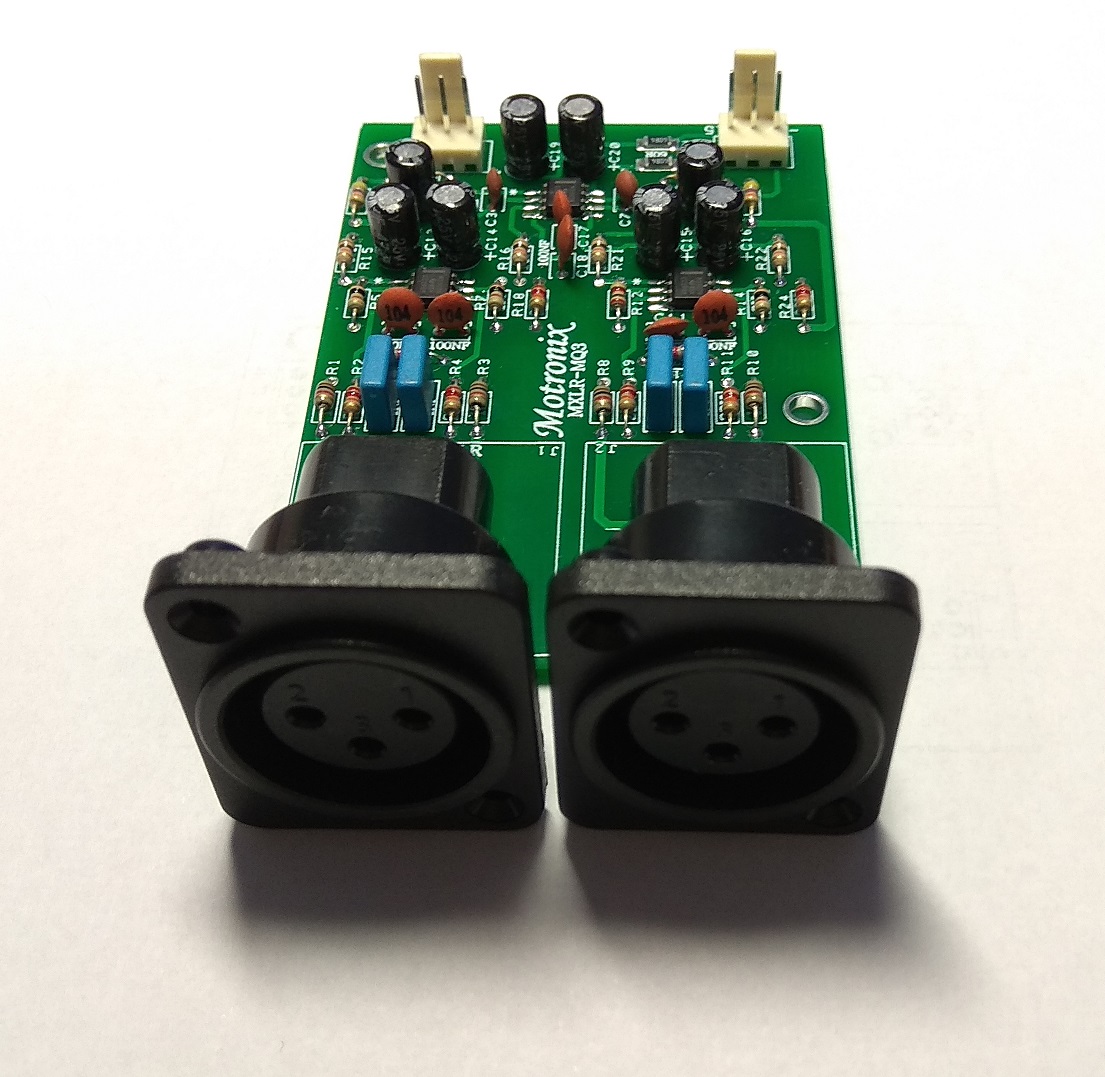

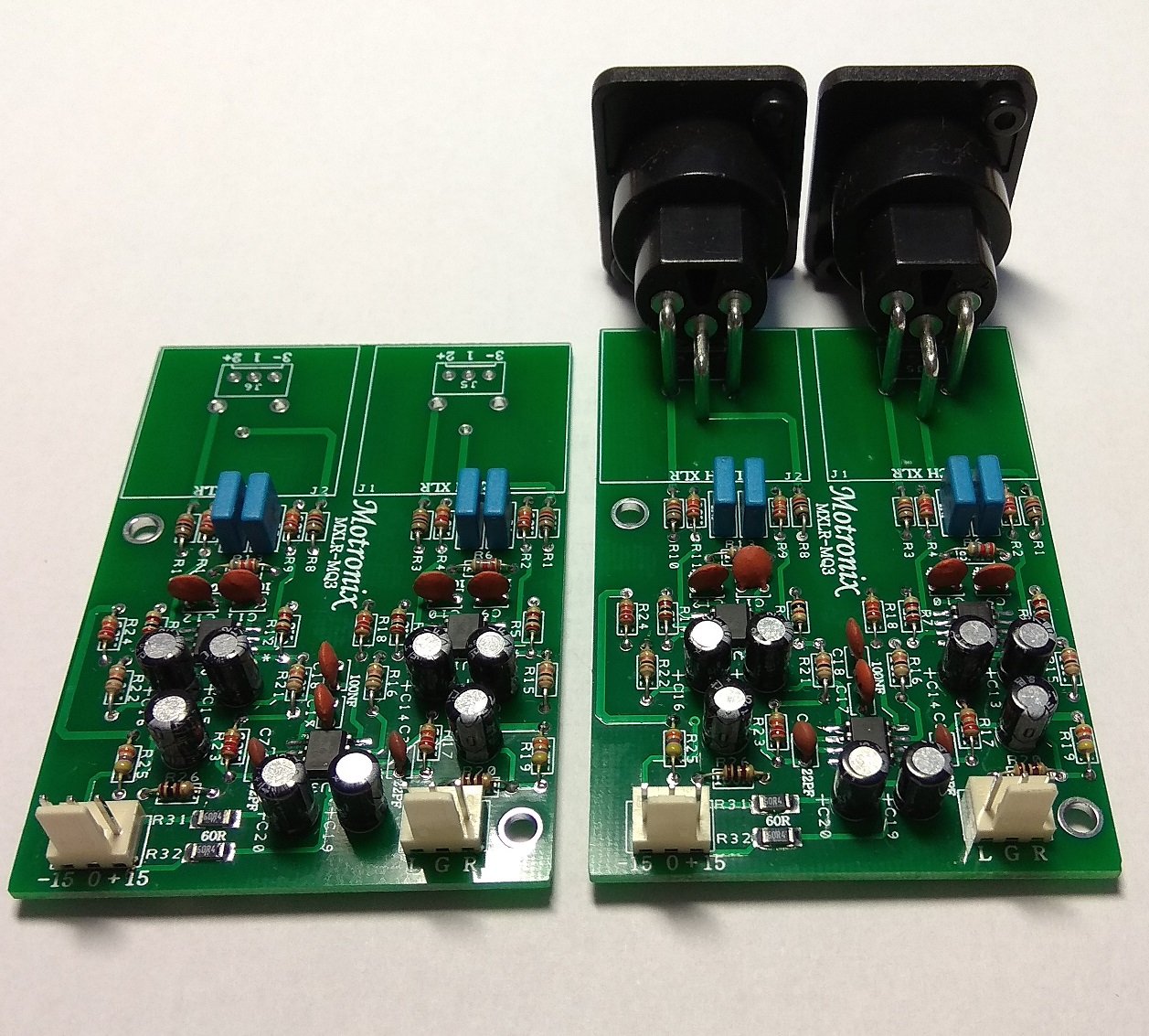

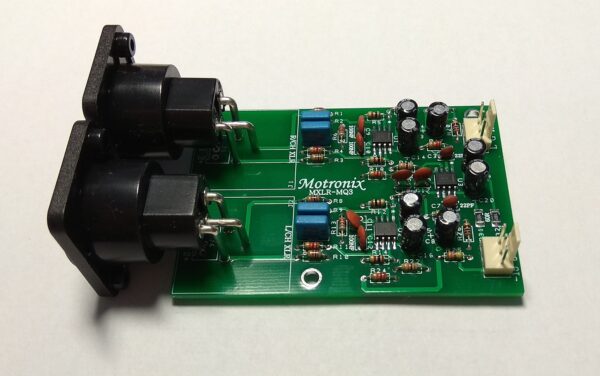

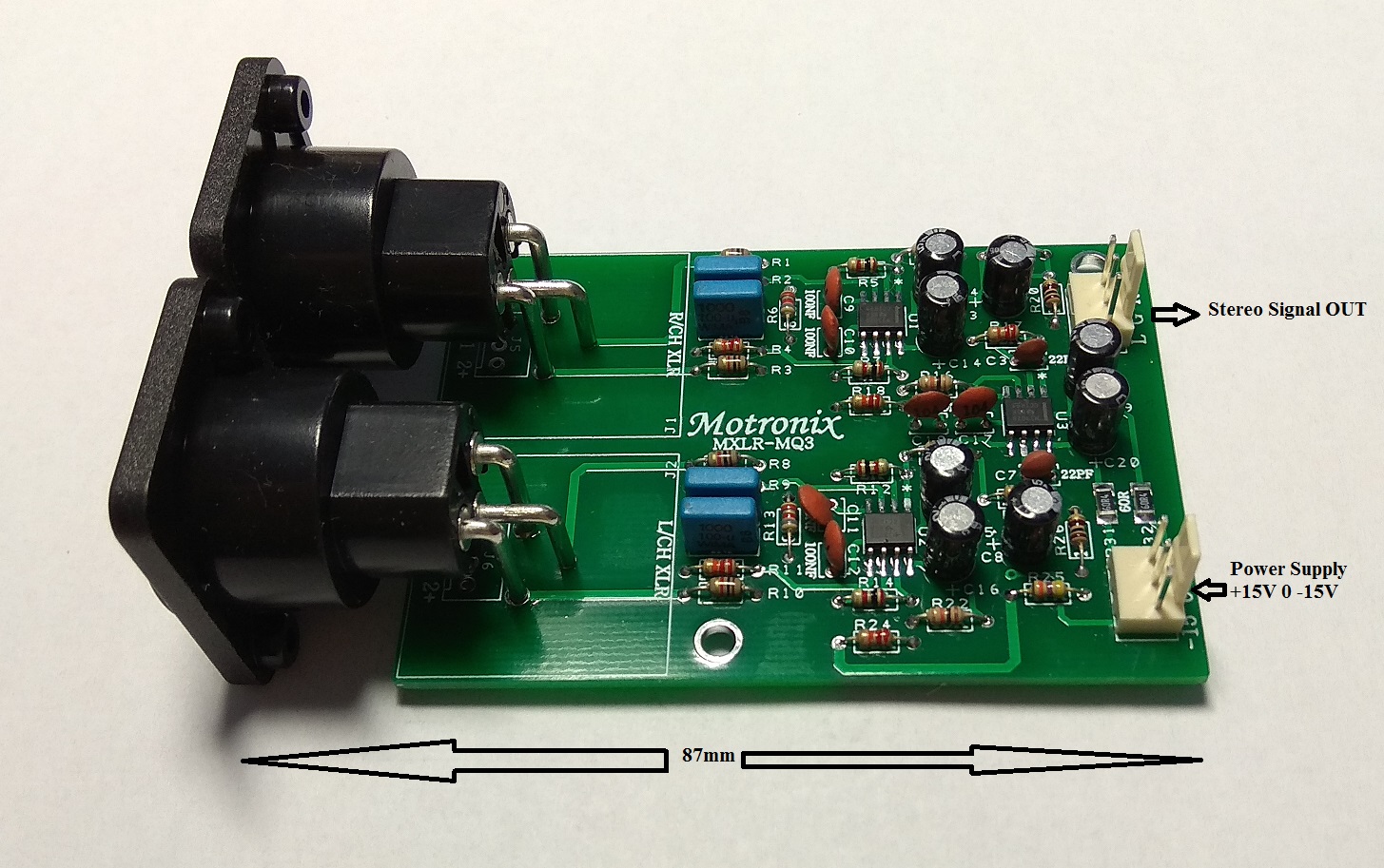

MXLR-MQ3 With XLR Connectors 87mm*53mm Green double-sided HAL,FR4 1.6MM

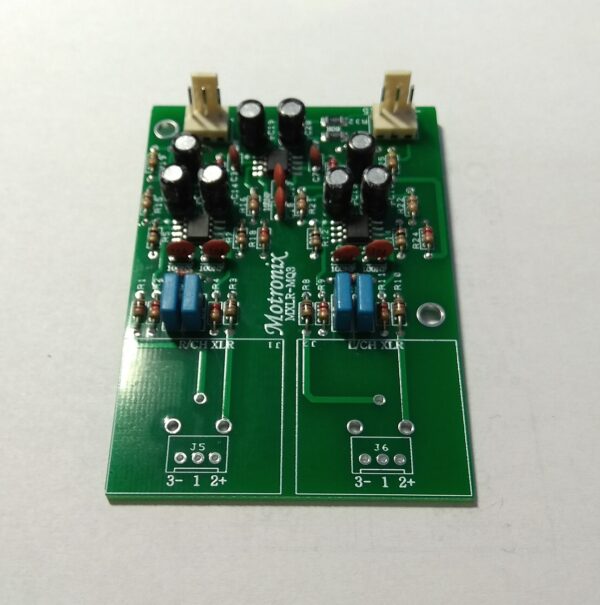

MXLR-MQ3ย Without XLR Connectors 75mm*53mm Green double-sided HAL,FR4 1.6MM

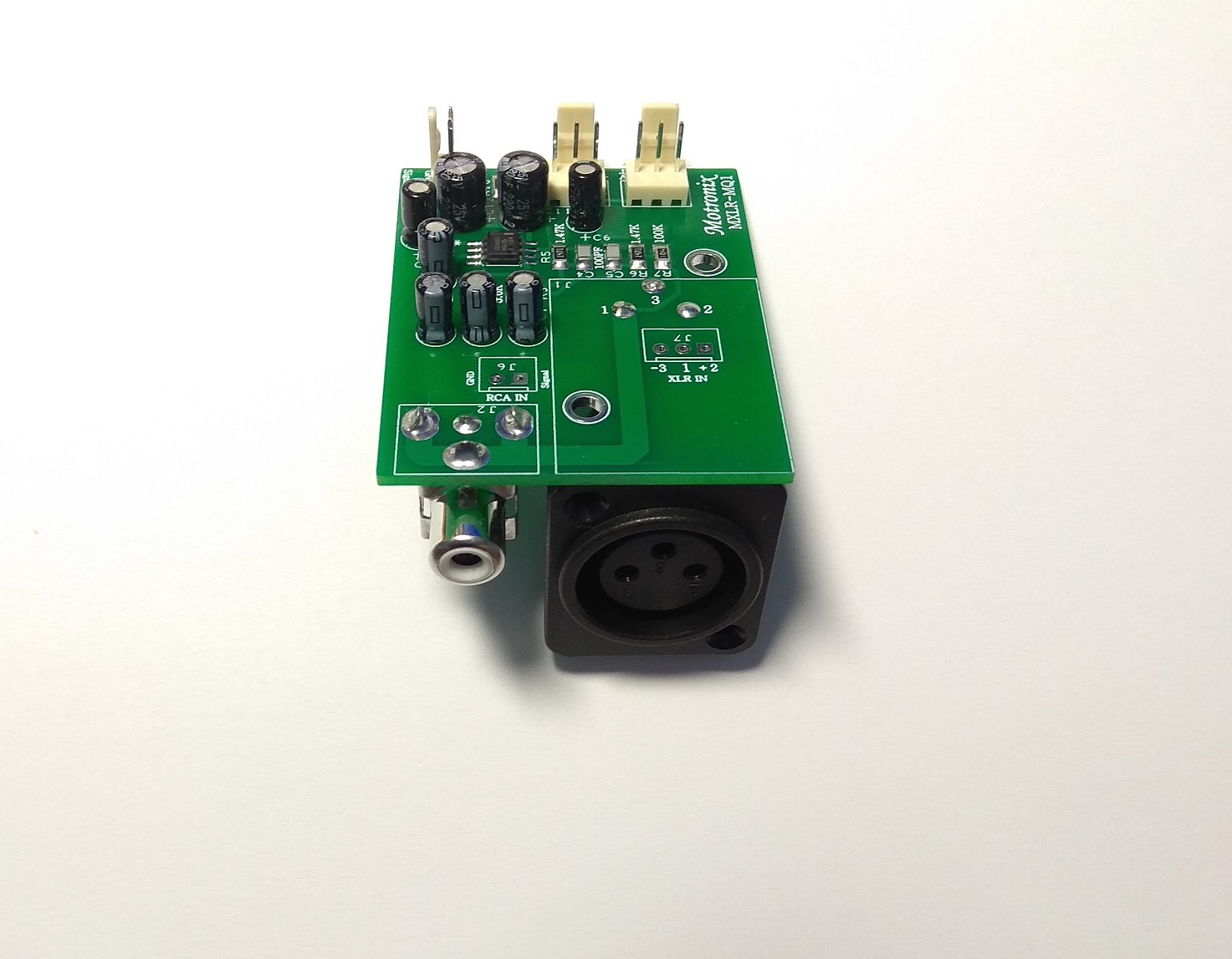

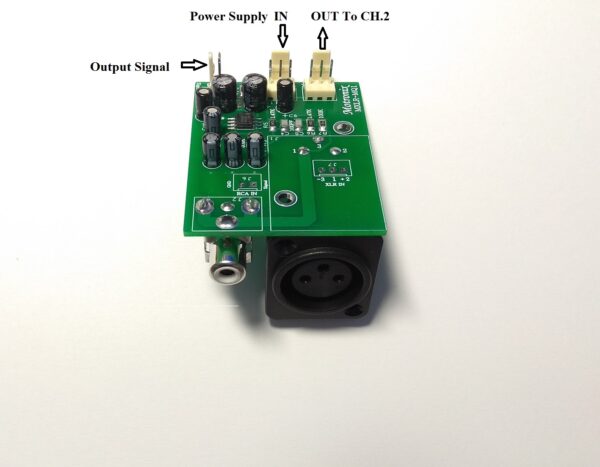

MXLR-MQ1 With XLR Connectors 58mm*49mm Green double-sided HAL,FR4 1.6MM
***Connectors and Pins provided***
***Molex Female Connectors and Pins provided***
