PA-HC2 Bipolar HIFI Black Edition High Quality Power Amplifier For 2-8Ω Speaker
PA-HC2 Bipolar HIFI Black Edition High Quality Power Amplifier For 2-8Ω Speaker
$
35.00
Add to Wishlist
Availability:
10 in stock
PA-HC2 Bipolar HIFI Black Edition High Quality Power Amplifier For 2-8Ω Speaker quantity
Add to cart
Category:
Bipolar
Tags:
Bi-Polar
,
Amplifier
Description
Description
PA-HC2
Black Edition

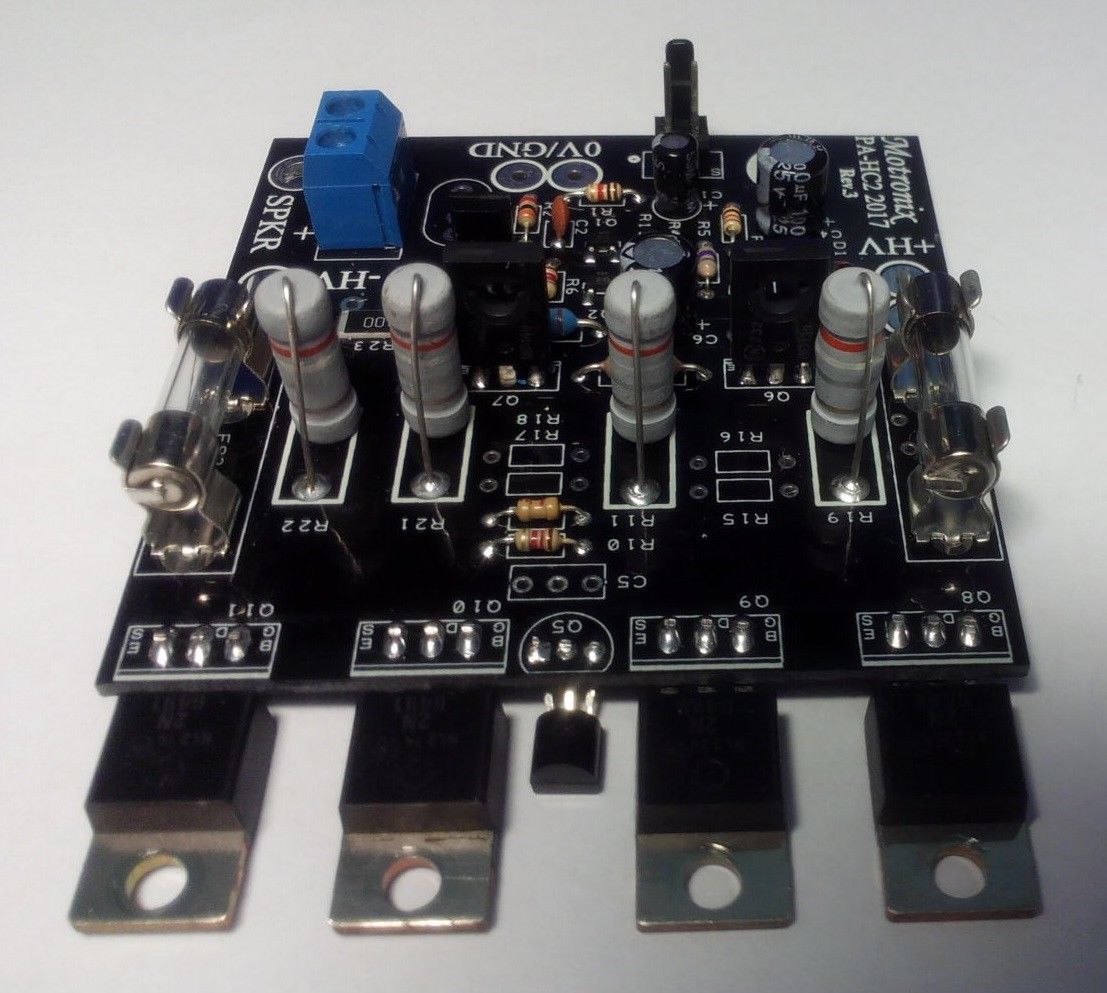

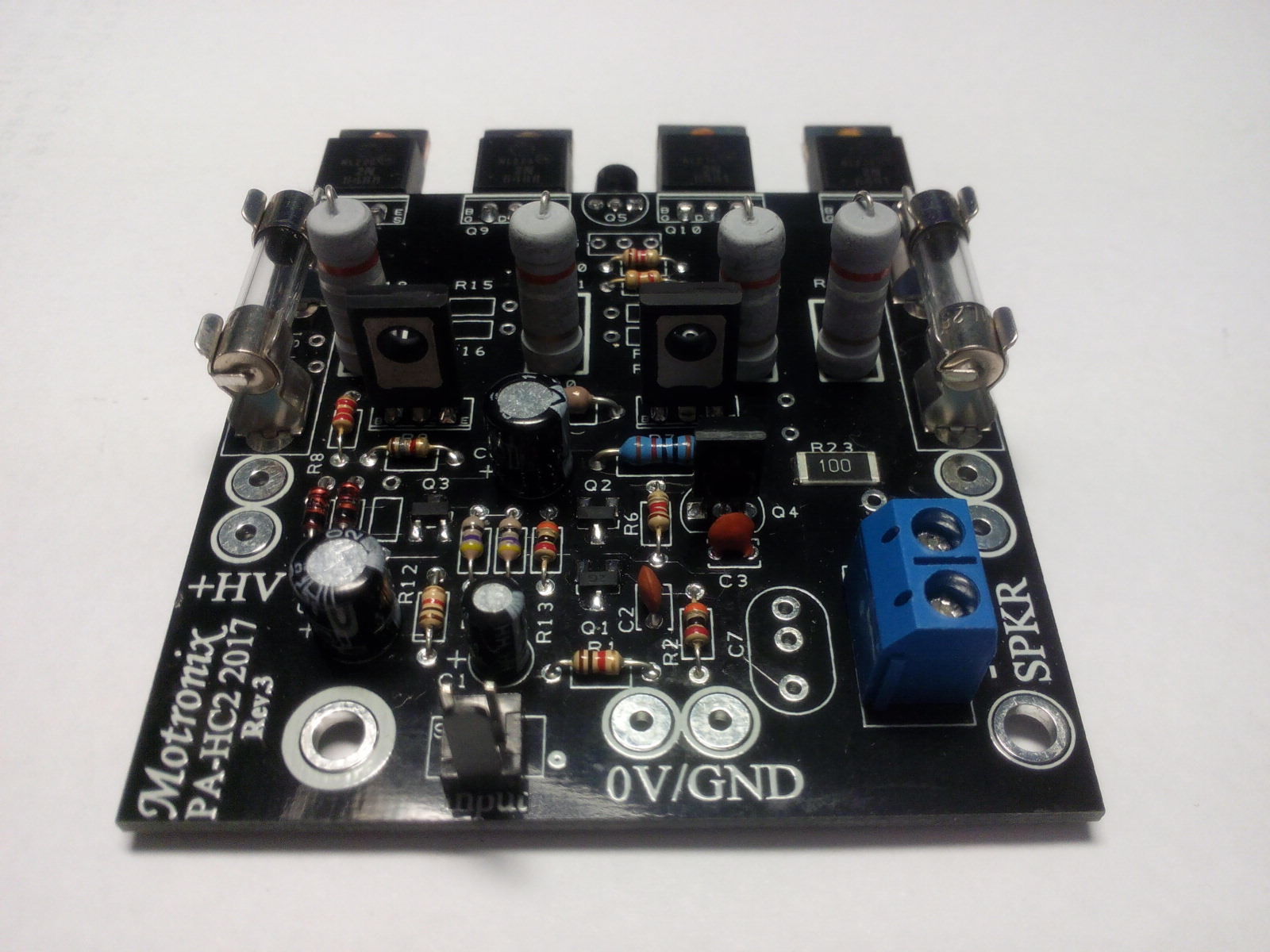

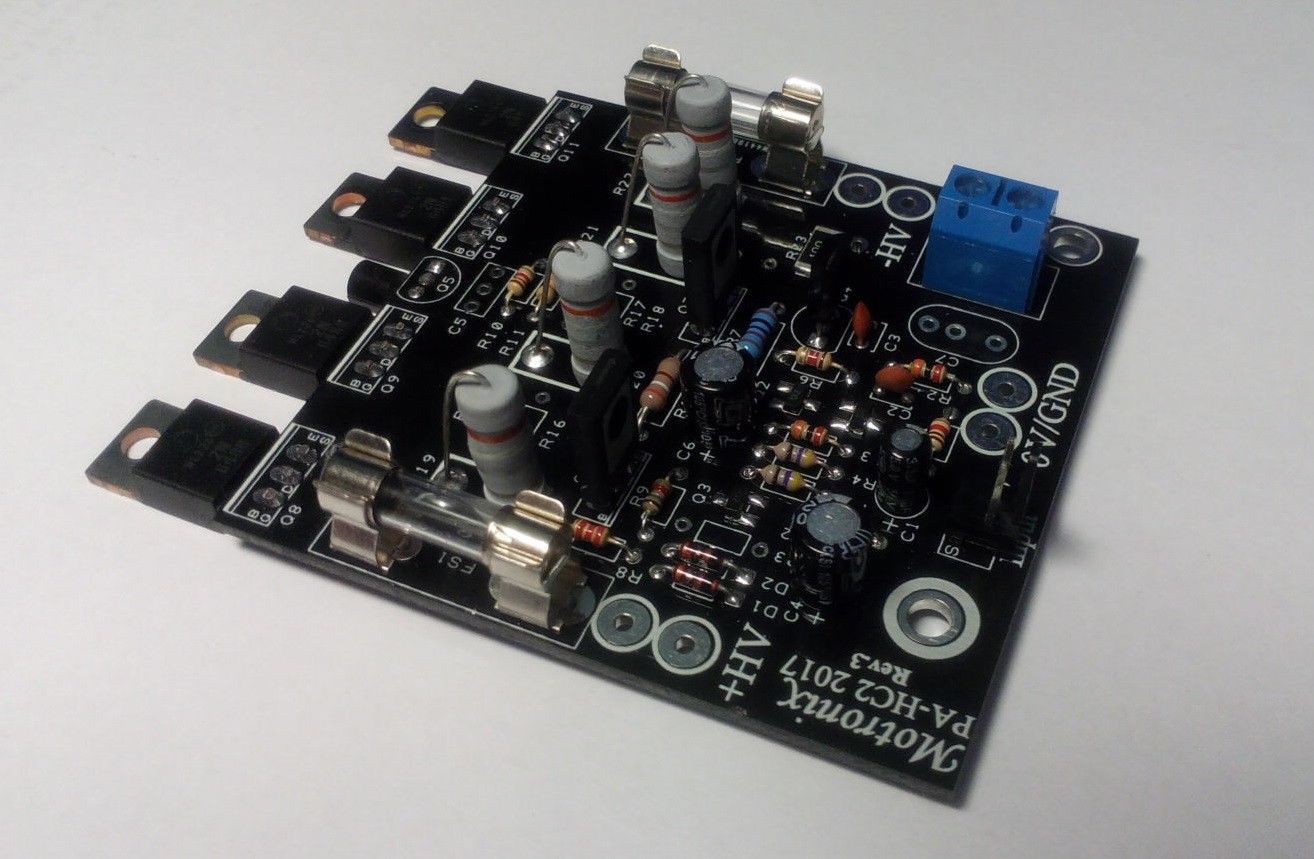

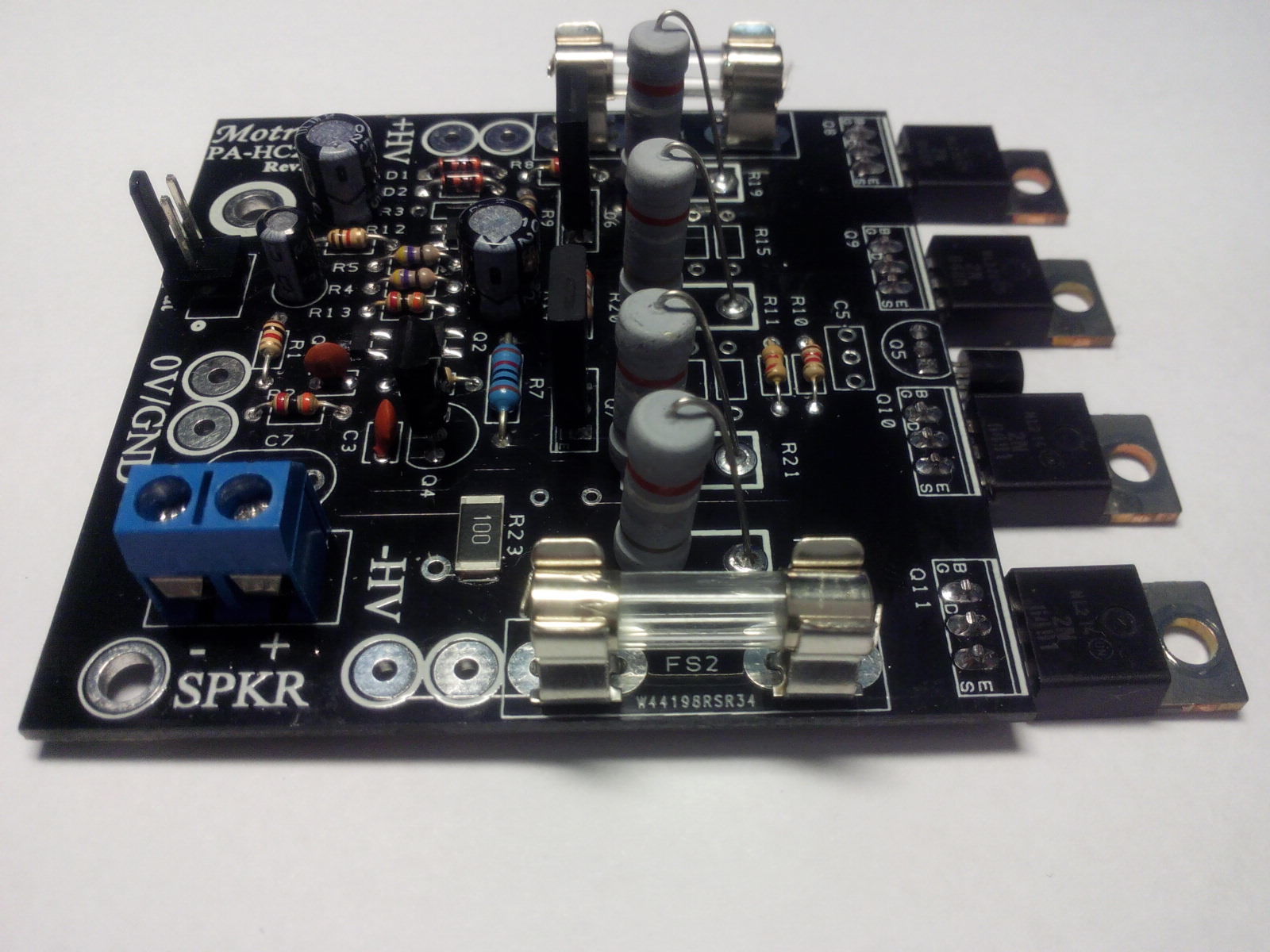

Build your own 80W Bipolar HIFI Black Edition High Quality Power Amplifier For 2-8Ω Speaker
Small High quality and reliability Black FR4 1.6MM PCB
For Stereo Version You Need 2 pcs
For 2.1 System You Need 3 pcs
For 5.1 For Home Theater You Need 6 pcs
Output Stage with 4 Transistors Can drive down to 2ohm Speaker
Excellent performance Amplifier
This item is PCB with all components assembled ready to use.
only need Heatsink and Power Supply
Easy and simple to connect.
The recommended transformer for this amplifier is:
2-4 Ohm Stereo version: 2X21VAC 5A (250-300VA)
8 Ohm Stereo version: 2X32VAC 3.5A (200VA)
DC Working Voltage: +/- 25V VDC TO MAX. +/- 42 VDC
Power Out: 90W @ 4Ohm [+/-32 VDC] OR 80W @ 8Ohm [+/-42 VDC]
PCB Size: 64mm*64mm double-sided Red HAL,FR4 1.6MM
Specification:
RMS continuous power:
80 W Into 8Ω @ 2X42 VDC, THD 1%
90 W Into 4Ω @ 2X32 VDC, THD 1%
90 Watts driven into a 4Ω load (tested with 2X32V DC Power Supply)
80 Watts driven into a 8Ω load (tested with 2X42V DC Power Supply)
0.012% Total Harmonic Distortion (THD+N)
Load: 4-8Ω (*** Can work with 2Ω load when use 2X25V DC Power supply)
Signal-to-Noise Ratio: >103dB A-weighted
Frequency Response: 20Hz to 20kHz
Bandwidth: 15Hz to 65kHz -1dB
Damping factor(100 Hz @ 4Ω): 200
Input sensitivity: 1.1 VRMS For Max. Power Output
Input impedance: 20KΩ
Load impedance: 2Ω-8Ω
DC Offset: < 10mv
Quiescent Current: 30mv
Applications:
DIY HI-FI Home/Car Power Amplifier, HI-FI Home/Car Subwoofer Amplifier
