Description

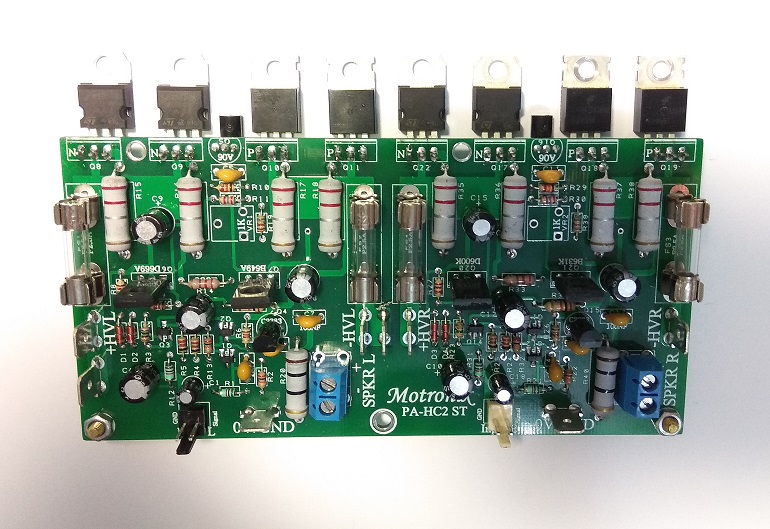

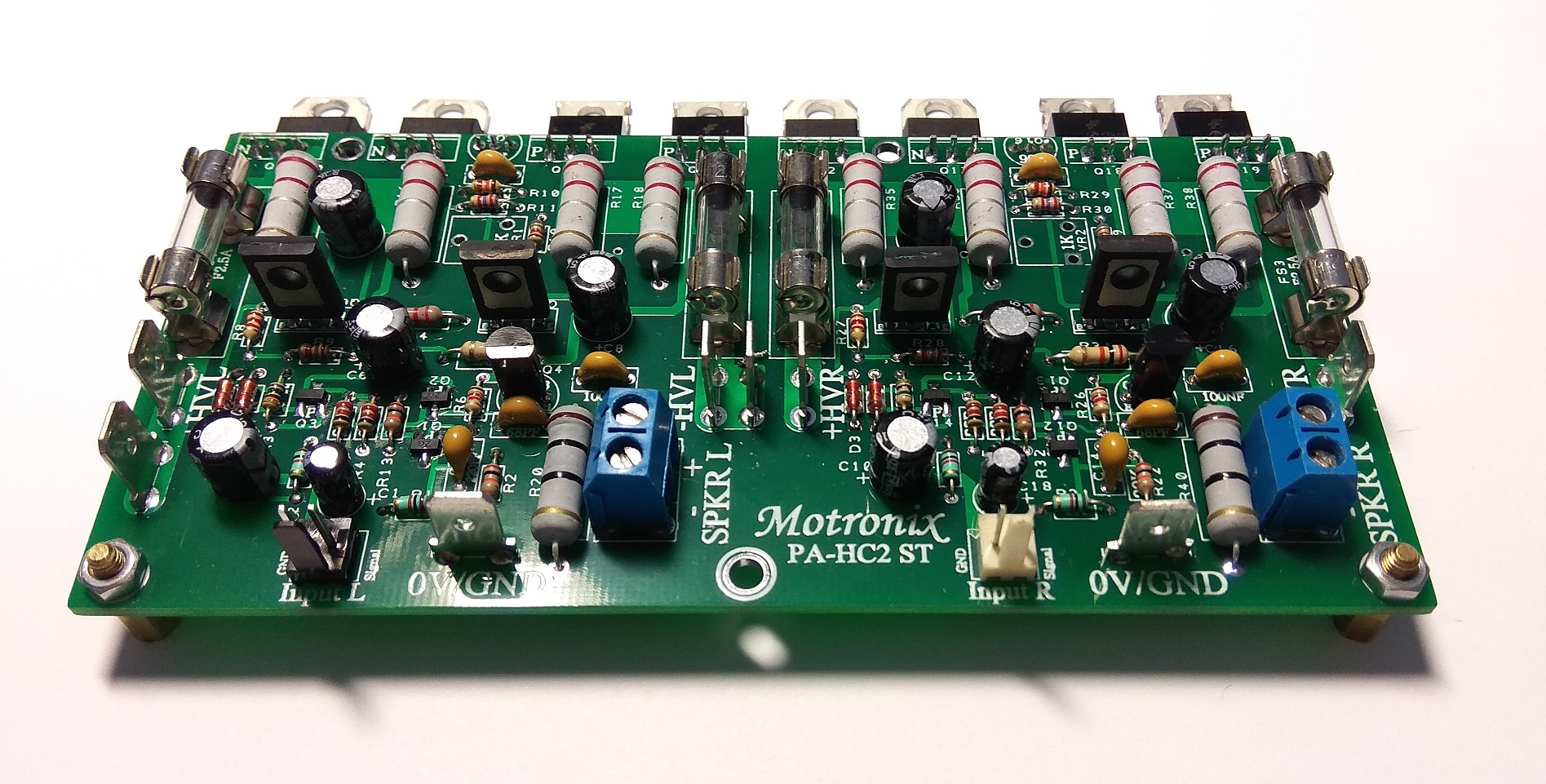

PA-HC2 ST
2 CH High quality Audio Power Amplifier
Class AB Power Amplifier
DC Power Stage
Very Good and Clean Sound Amplifier
High quality Product and reliability FR4 1.6MM PCB
Working Voltage : 2X25Vdc to 2X35Vdc
Quiescent Current: 60mA (Both Amplifiers)
Input Sensitivity: 1Vrms (For full output)
Power OUT:
2x50Wrms 8 Ohm (With 2x35Vdc Power Supply)
2x70Wrms 4 Ohm (With 2x35Vdc Power Supply)
Amplifier Bandwidth: 15Hz to 100kHz

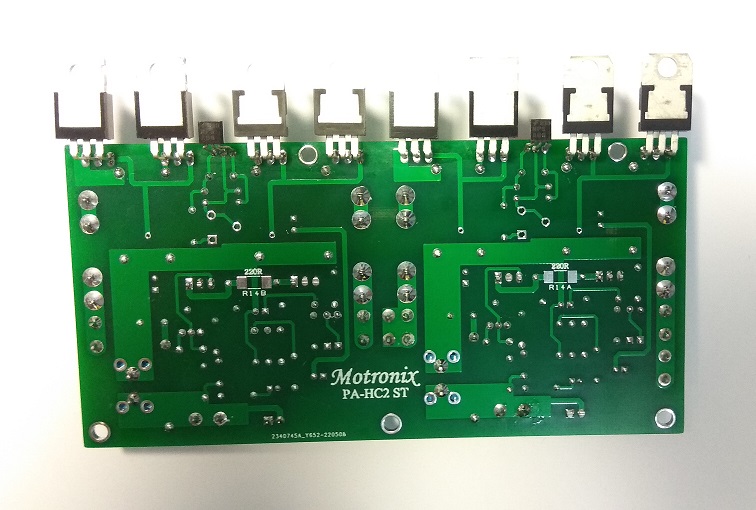

PCB Size: 130mm*65mm Green double-sided HAL,FR4 1.6MM
