Description

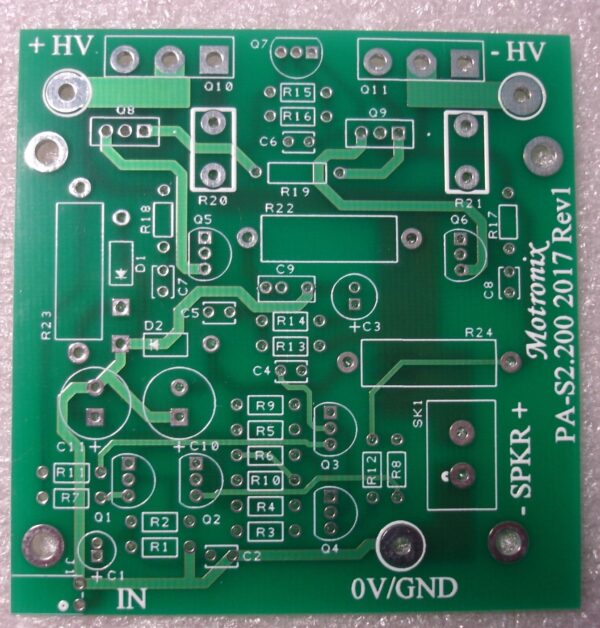

PA-S2.200 Power Amplifier DIY
Price is for 2 PCB Board

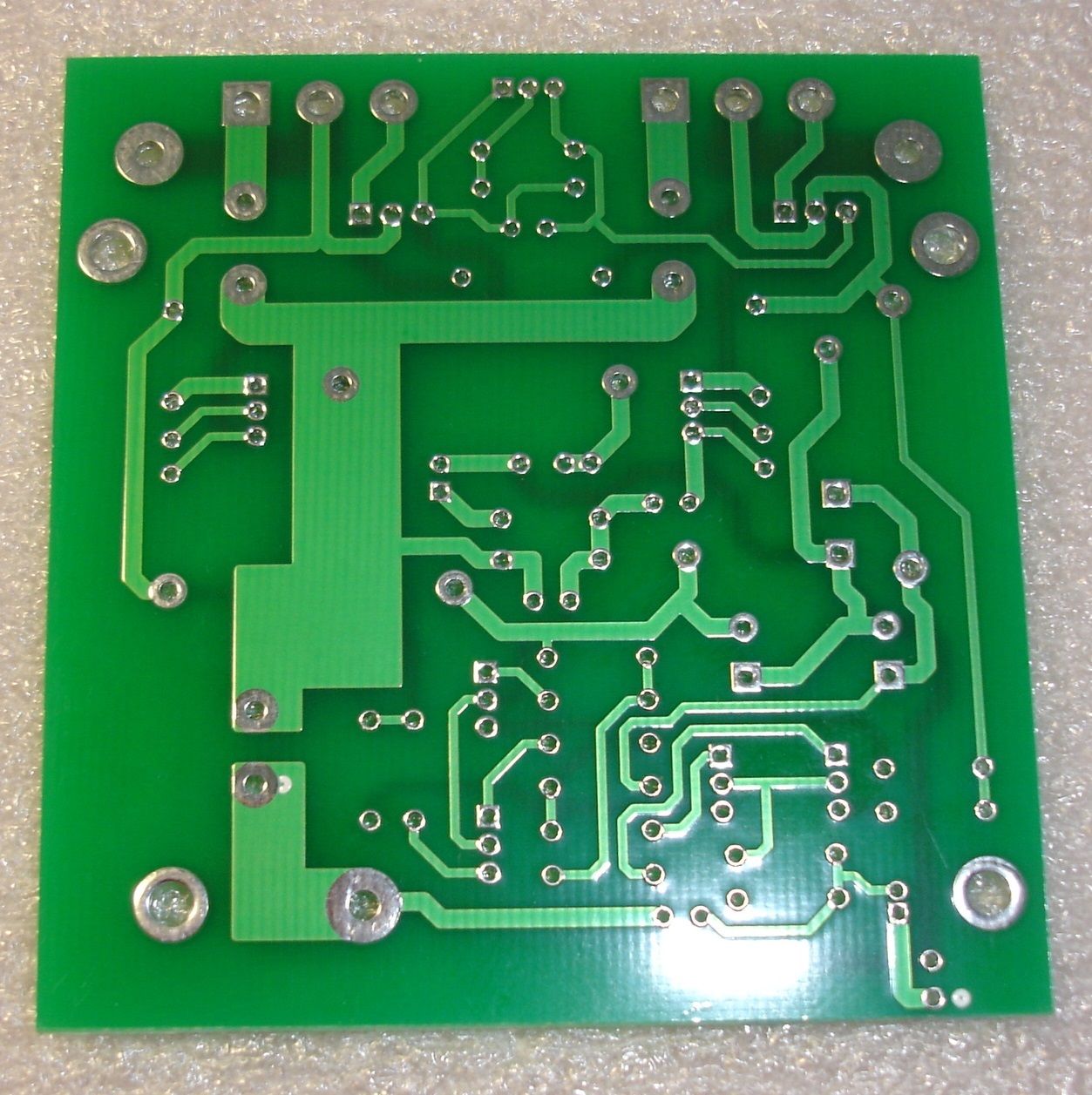

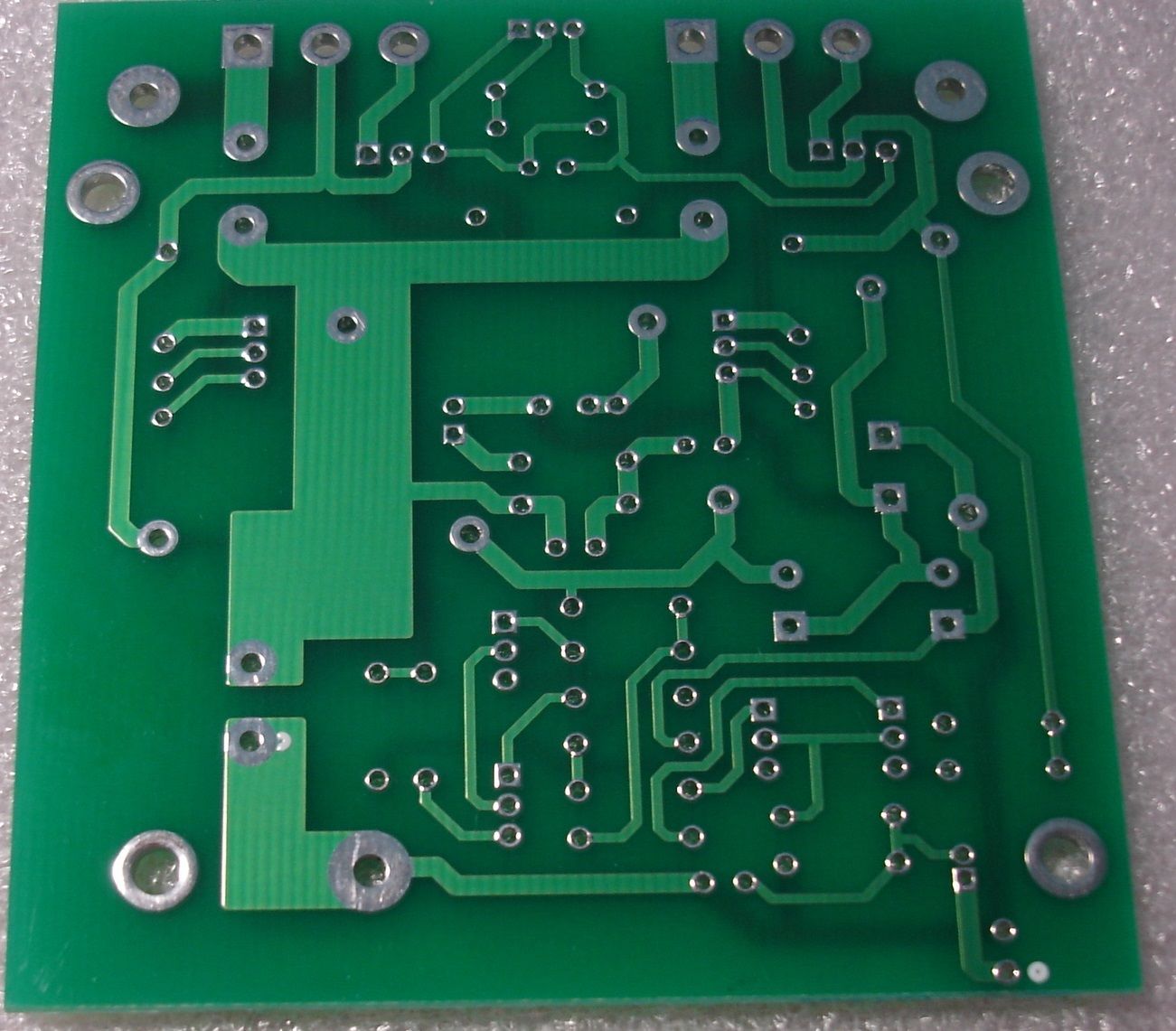

BI-Polar Class AB Power Amplifier Bare PCB DIY for TO-3P or TO-247 Output Transistors
Fully symmetry Class AB Power Amplifier
Very Easy to build
Use your own components
High quality and reliability FR4 1.6MM
Will send 2 PCB Without Components!!!

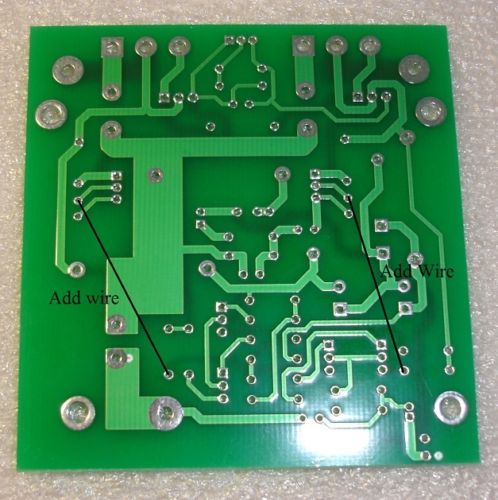

This item is only PCB without components. it has 2 line missing that need to connect with resistor jumper.
the 2 jumper will supply + full assembly instruction

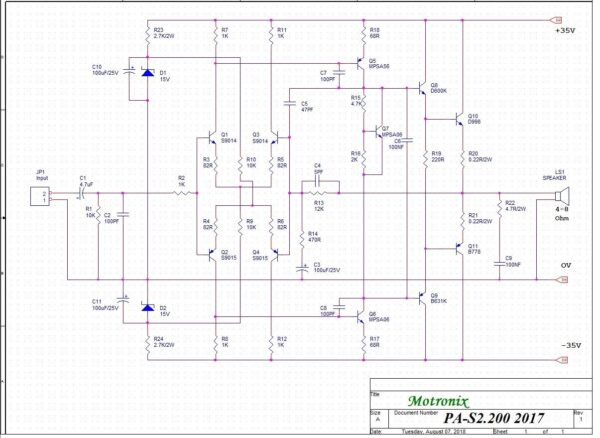

Amplifier components: 24 resistors,11 capacitors,11 transistors
Working Voltage: +/- 25V Vdc TO MAX. +/- 52 Vdc
PCB Size: 69mm*71mm double-sided HAL,FR4 1.6MM
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier
