Description
PA-S200.2

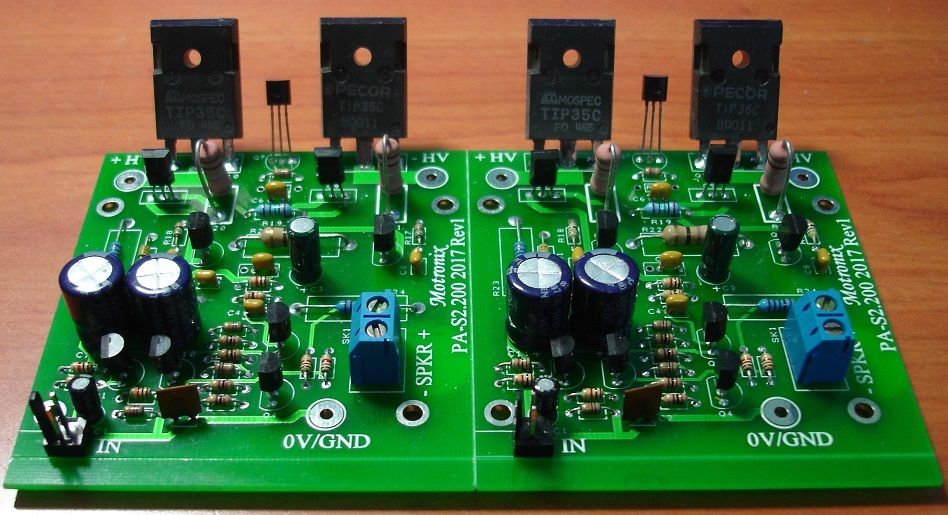

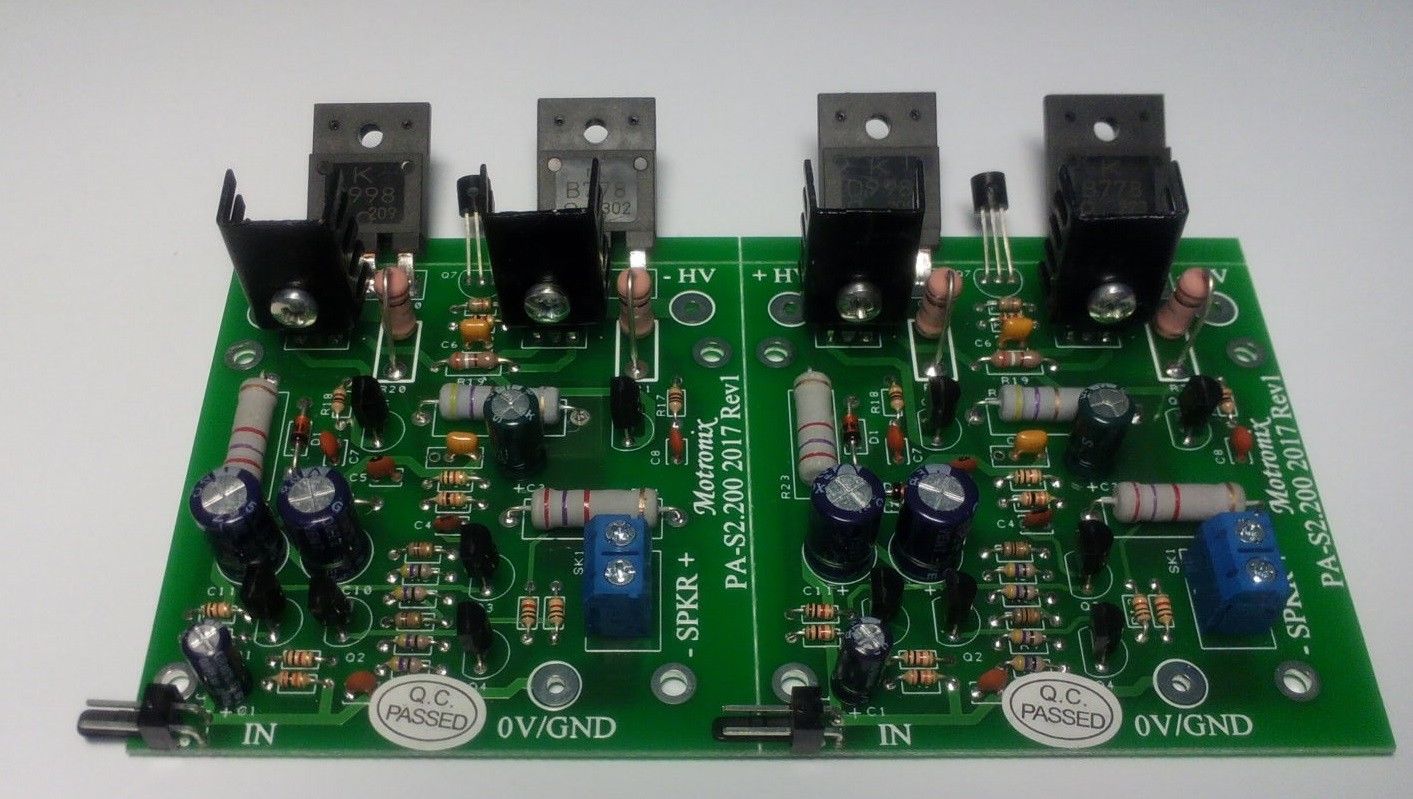

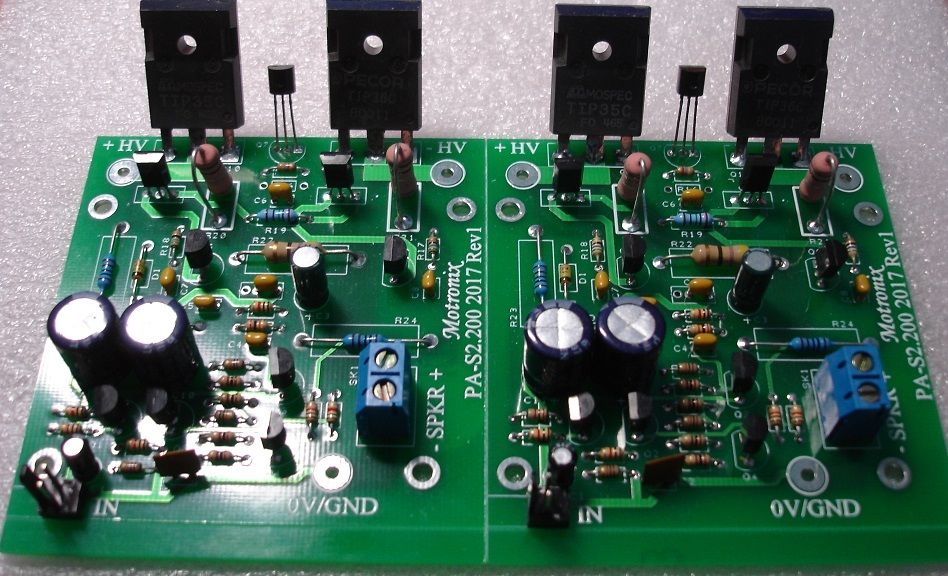

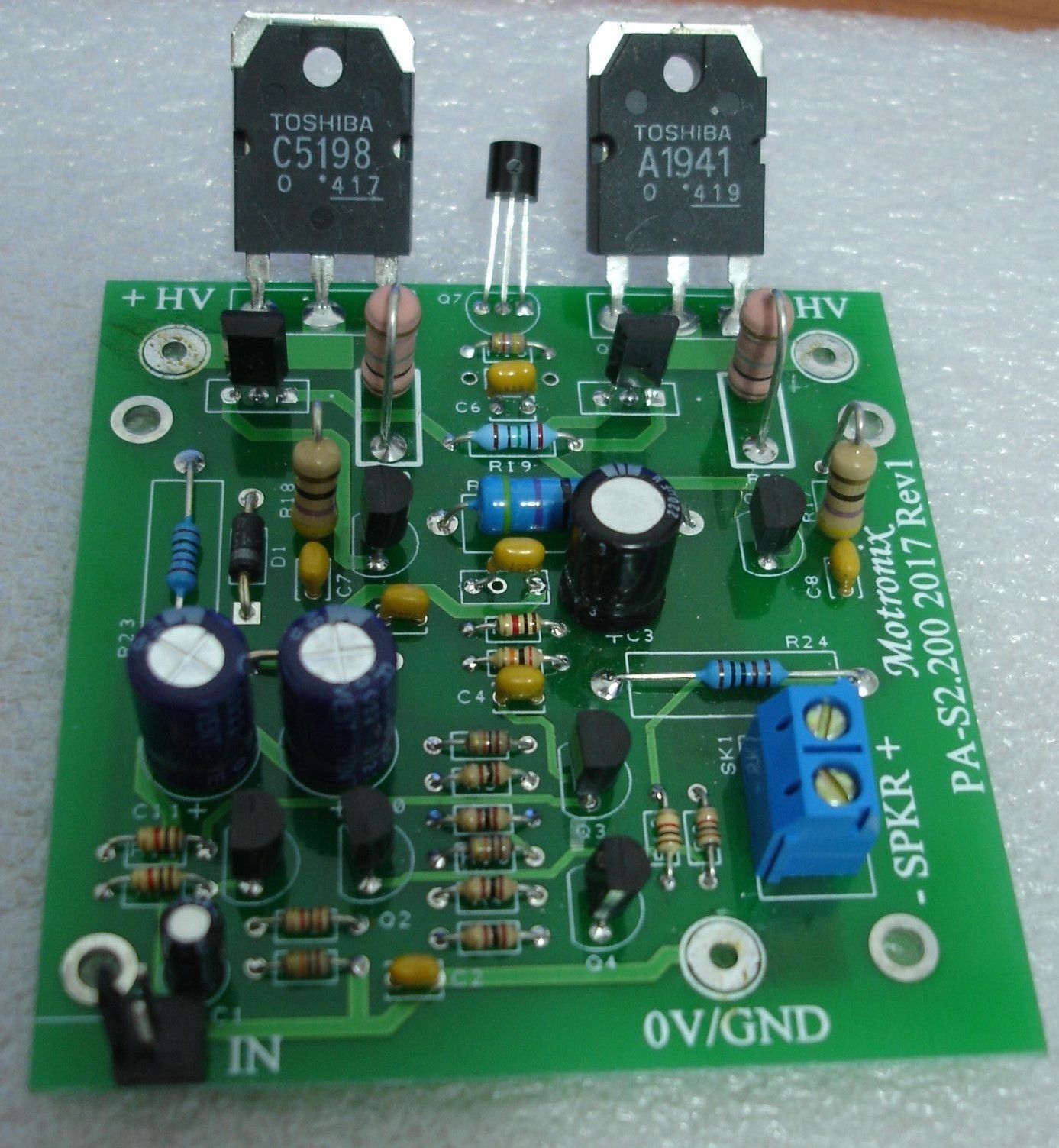

HIFI 100W 4-8 Ohm Bipolar Class AB Power Audio Amplifier assembled PCB & tested.High Quality
High quality and reliability FR4 1.6MM PCB & Components
Fully symmetry Class AB Power Amplifier
For Stereo Version you need Order 2 PCB !!!
This item is 1 (One) PCB with all components assembled ready to use. only need add to Heatsink and Power Supply
Amplifier components: 24 resistors,11 capacitors,11 transistors
Easy and simple to connect. YOU WILL NEED ADD 2X30V OR 2X40V DC POWER SUPPLY
The recommended transformer for this amplifier is:
4 Ohm Stereo version: 2X25Vac 5A
8 Ohm Stereo version: 2X35Vac 3.5A
