PAN-HD1 Class AA HQ Headphones Amplifier With LM833/NE5532/NJM2114

$5.00 – $15.00

Add to Wishlist

Type

Clear

SKU: N/A Category: Headphones Amplifier

Description

PAN-HD1

Class AA HQ Headphones Amplifier With LM833/NE5532/NJM2114

HiFi High Quality Amplifier for DIY

4 Option Order:

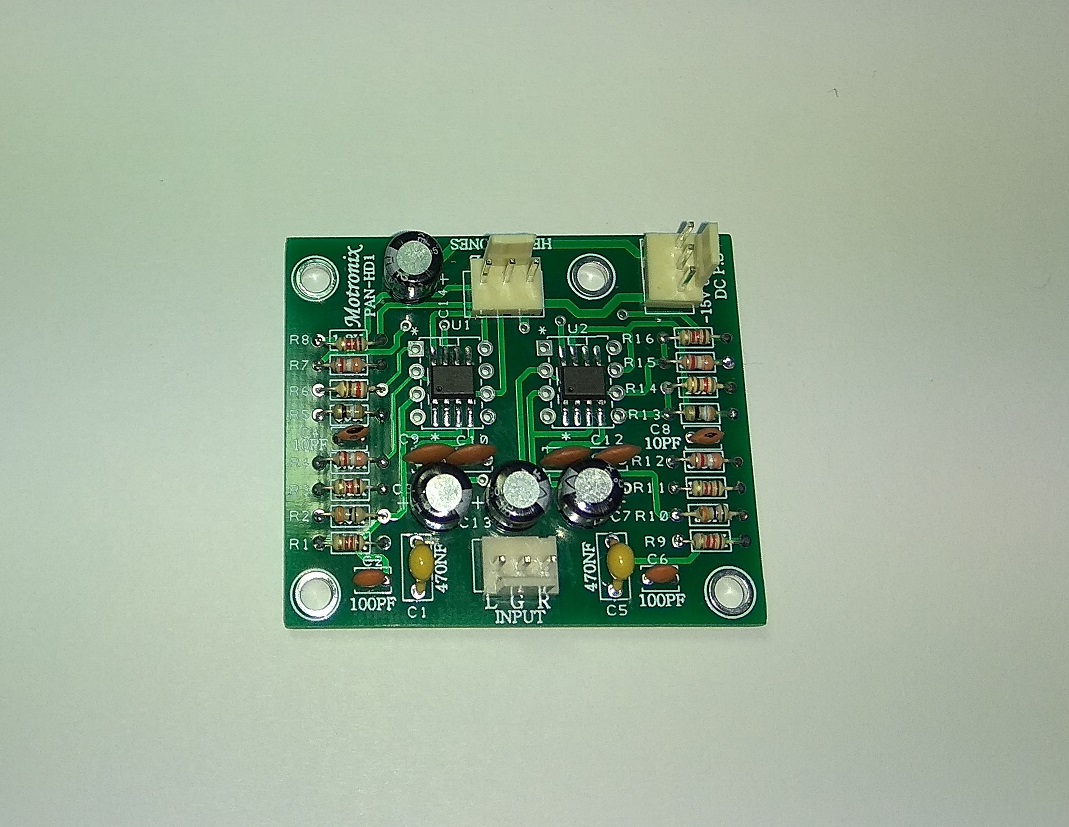

1.assembled Board with SMD/DIP Addp. LM833 IC

2.assembled Board with SMD/DIP Addp. NE5532 IC

3.assembled Board with SMD/DIP Addp. NJM2114 IC

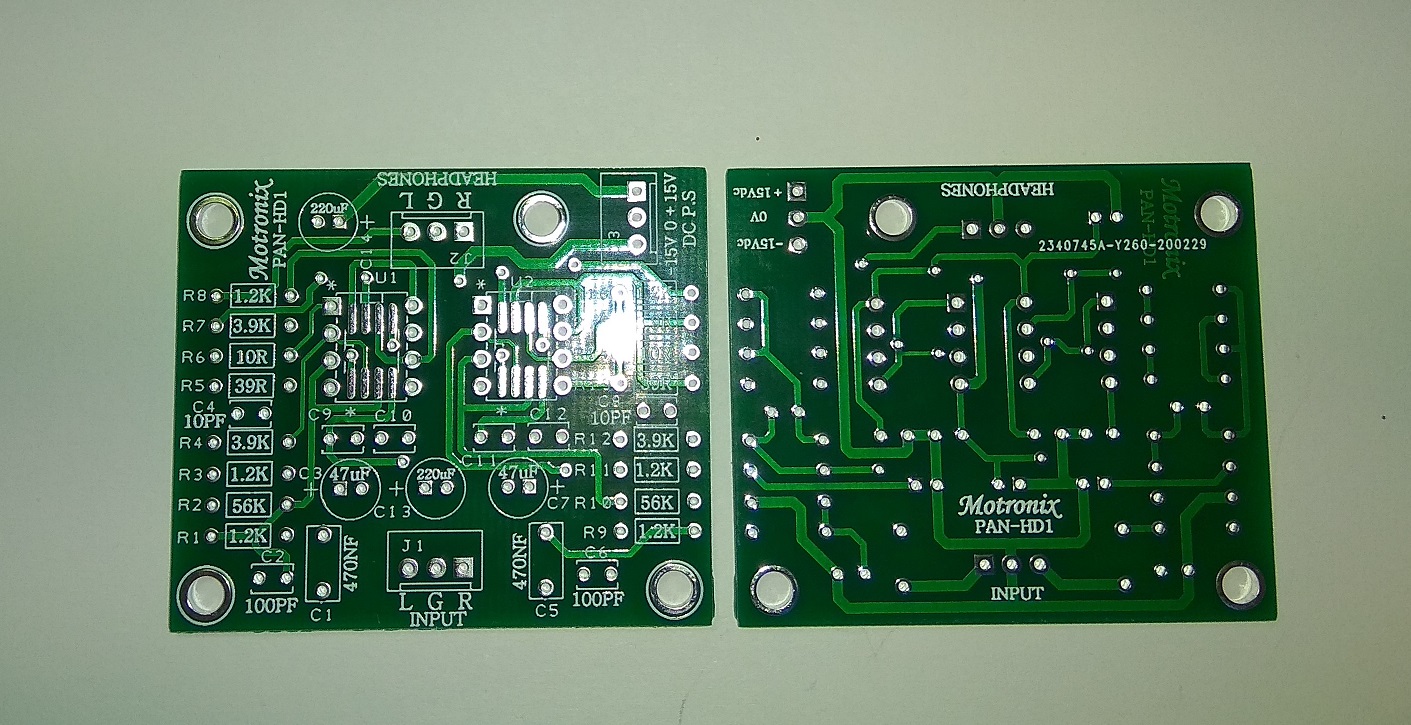

4.ONLY Board without Parts

High quality and reliability FR4 1.6MM PCB

The recommended Voltage for the Best Performance is: 2X15Vdc

Working Voltage: Min. 2x +/-9Vdc to Max. 2x +/- 18Vdc (Regulated)

Current Consumption: 5mA (No Load No Signal) Max. 22mA at Full Power OUT

Frequency Response: 15Hz-22,000Hz

Power Out: 920mV rms at 32Ohm Load

Input sensitivity: 240mV (for max. power drive)

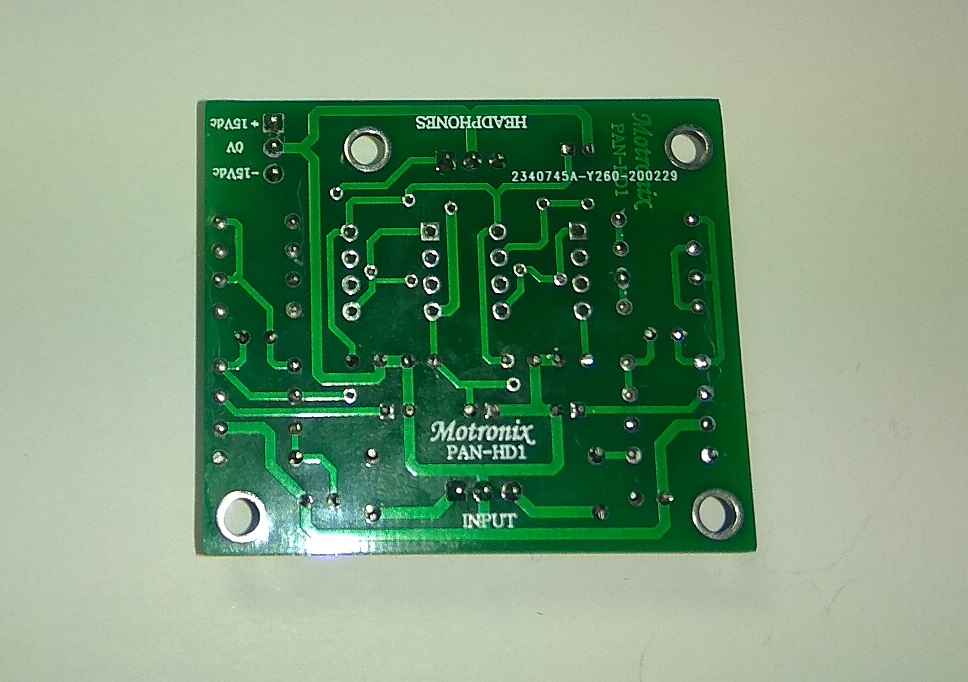

**PCB Size: 50mm*43mm double-sided HAL,FR4 1.6MM**

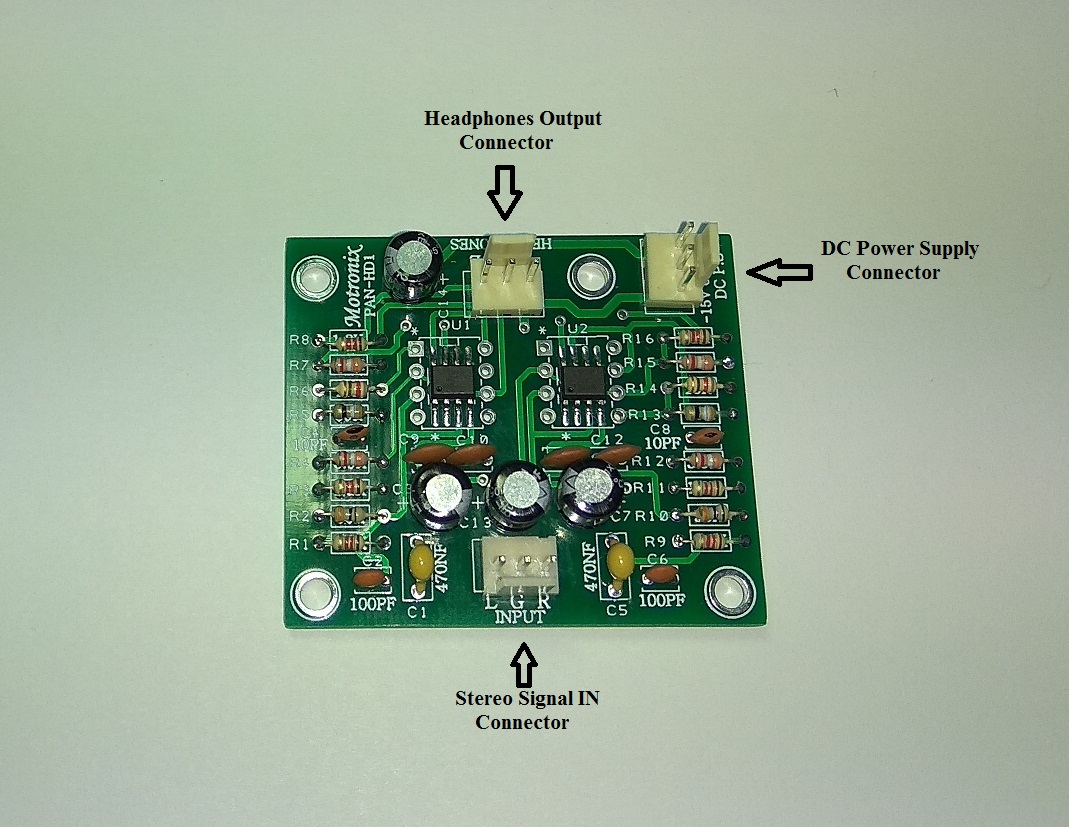

Applications: Headphones Amplifier

Additional information

Type	PAN-HD1 LM833, PAN-HD1 NE5532, PAN-HD1 NJM2114, PAN-HD1 PCB
