Description
M-RIAA100
Phono MM RIAA Discrete Stage Hi Quality Phono Pre Amp
Excellent sound and performance
Working Voltage: Dual 18-30Vdc (+24Vdc 0 -24Vdc)
High quality and reliability FR4 1.6MM
High quality components
The Good Old Sound Quality
Order option:

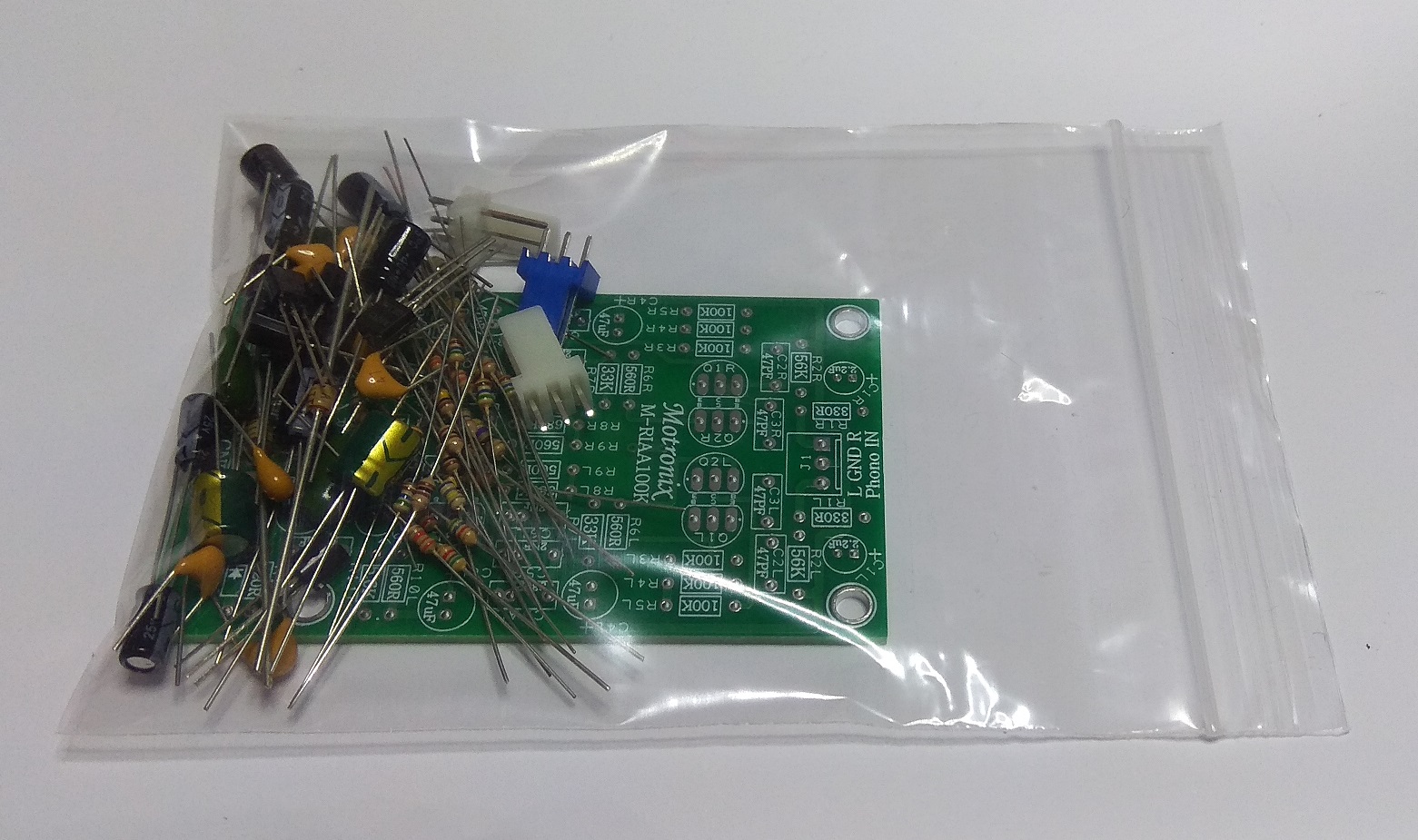

1.DIY KIT PCB+Parts You need to place and solder all parts

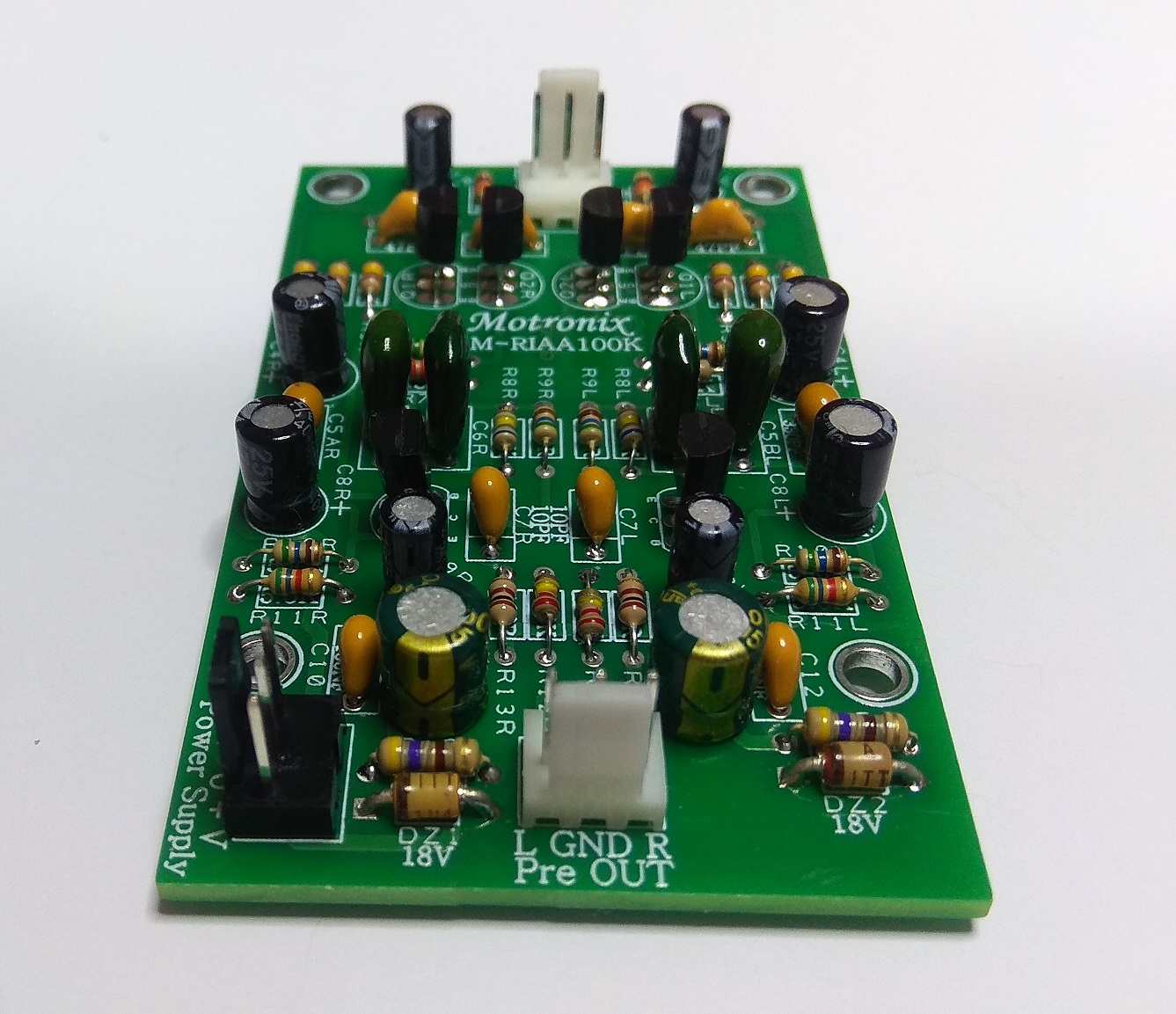

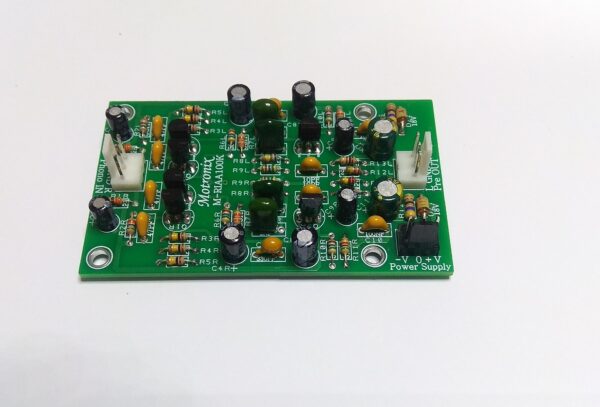

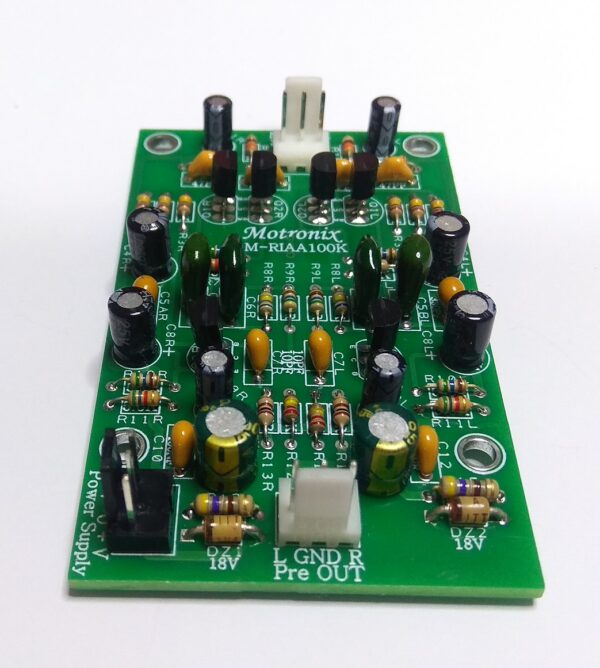

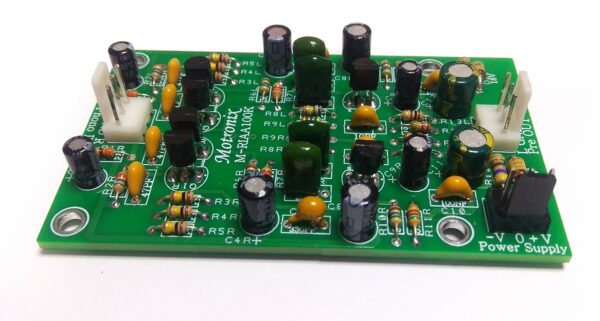

2.Assmbled PCB
Molex female Connectors and pins will supply
Input sensitivity: 2.5mv @ 1Khz (Max. 100mV)
Freq. Response: 20-20000 Hz
Input Impedance: 47Kohm
PCB Size: 73mm*44mm double-sided HAL,FR4 1.6MM
