Quad 303 Power Amplifier Direct Replacement Amplifier PCB

$70.00$72.00

SKU: N/A Categories: , , Tags: ,

Description

Quad 303 Power Amplifier Direct Replacement Amplifier PCB
Direct Replacement Amplifier PCB M12038
Exactly the same as the original Quad Design
The wire connections are the same as the order of the original PCB
Excellent for restoring amplifiers whose printed circuit is damaged
Quad amplifiers came out with two versions.
One with quiescent current control with diodes and the other with transistor.
Choose the version that suits you
This Amplifier PCB is assembled with new and high-quality components
 High quality and reliability FR4 1.6MM PCB
This item is PCB with all components assembled ready to use
Working Voltage: 67Vdc with the Quad original Regulator
PCB Size: 100mm*75mm double-sided HAL,FR4 1.6MM
PCB Size:

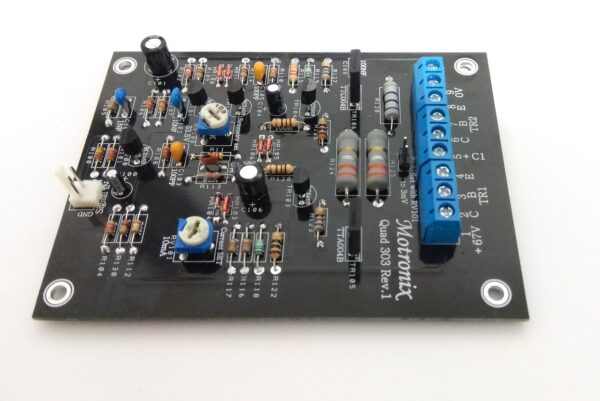

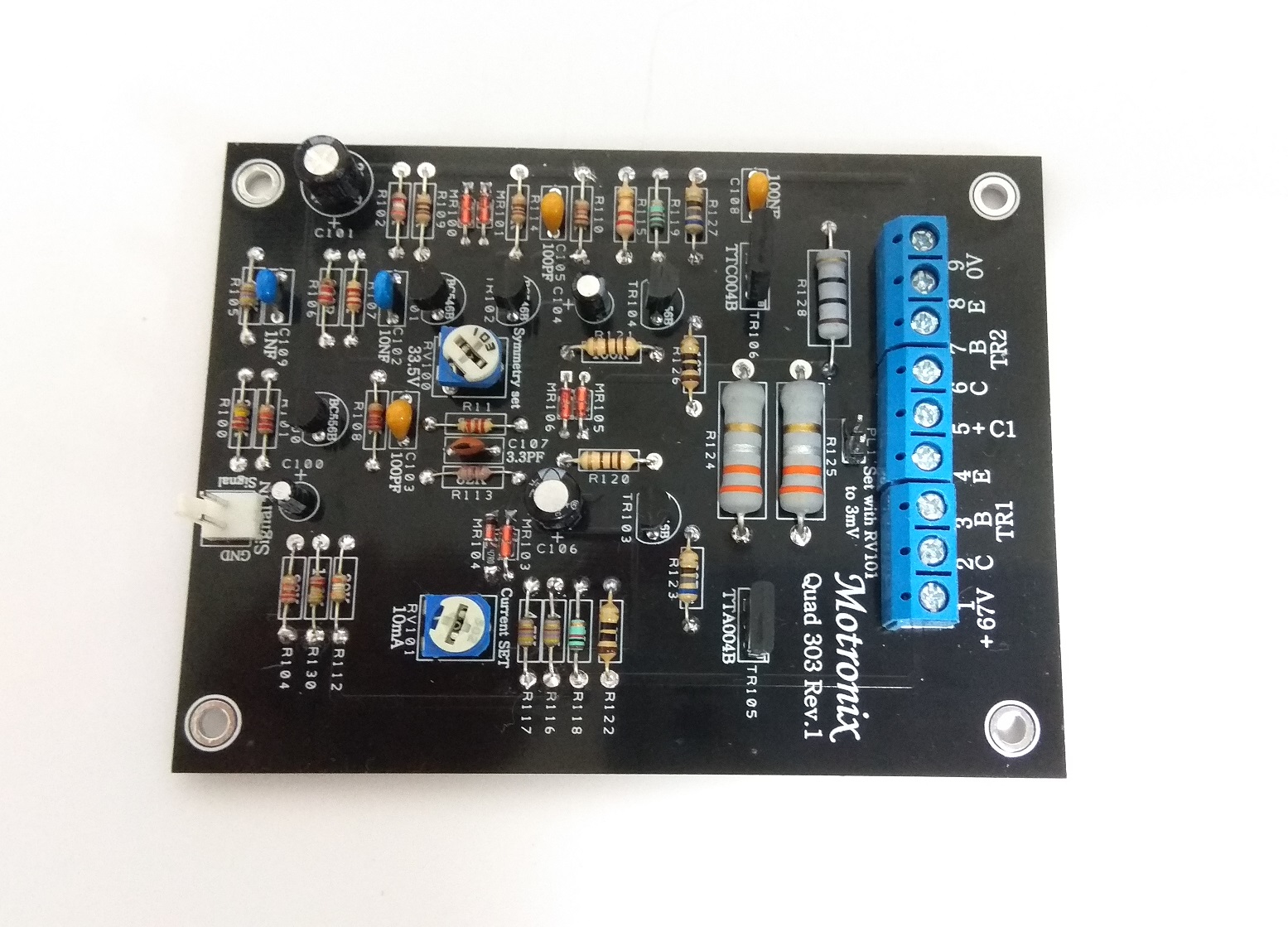

OLD Diode version: 100mm*75mm Black double-sided HAL,FR4 1.6MM

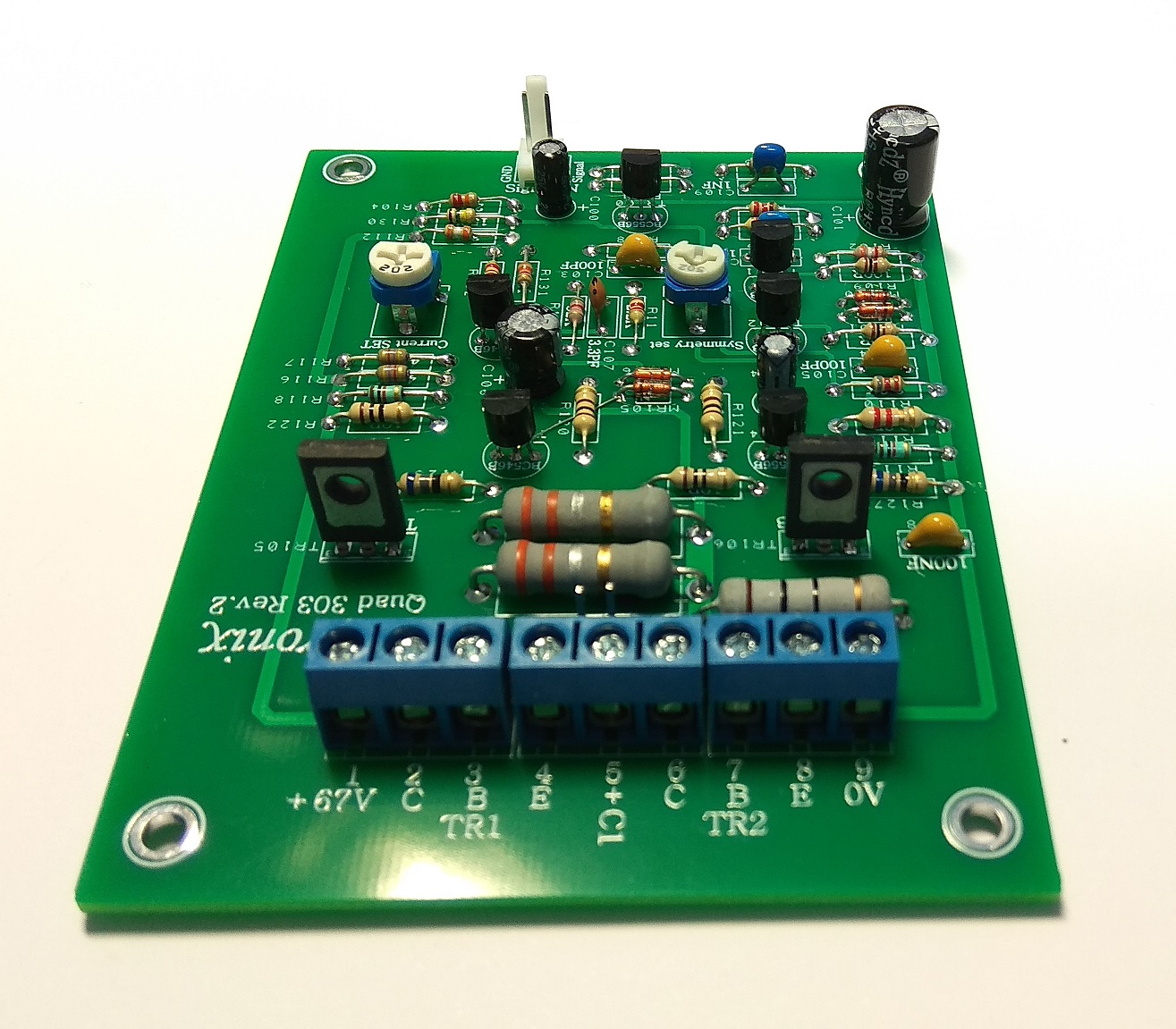

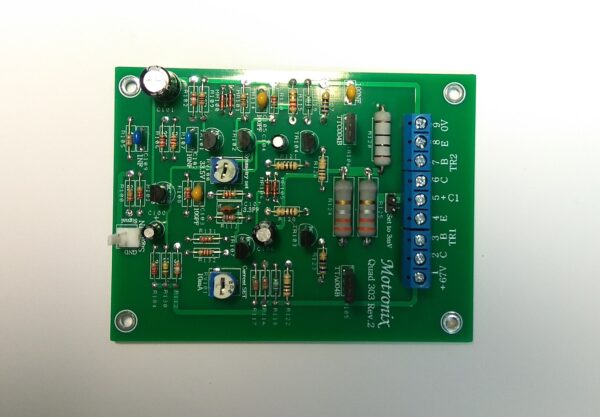

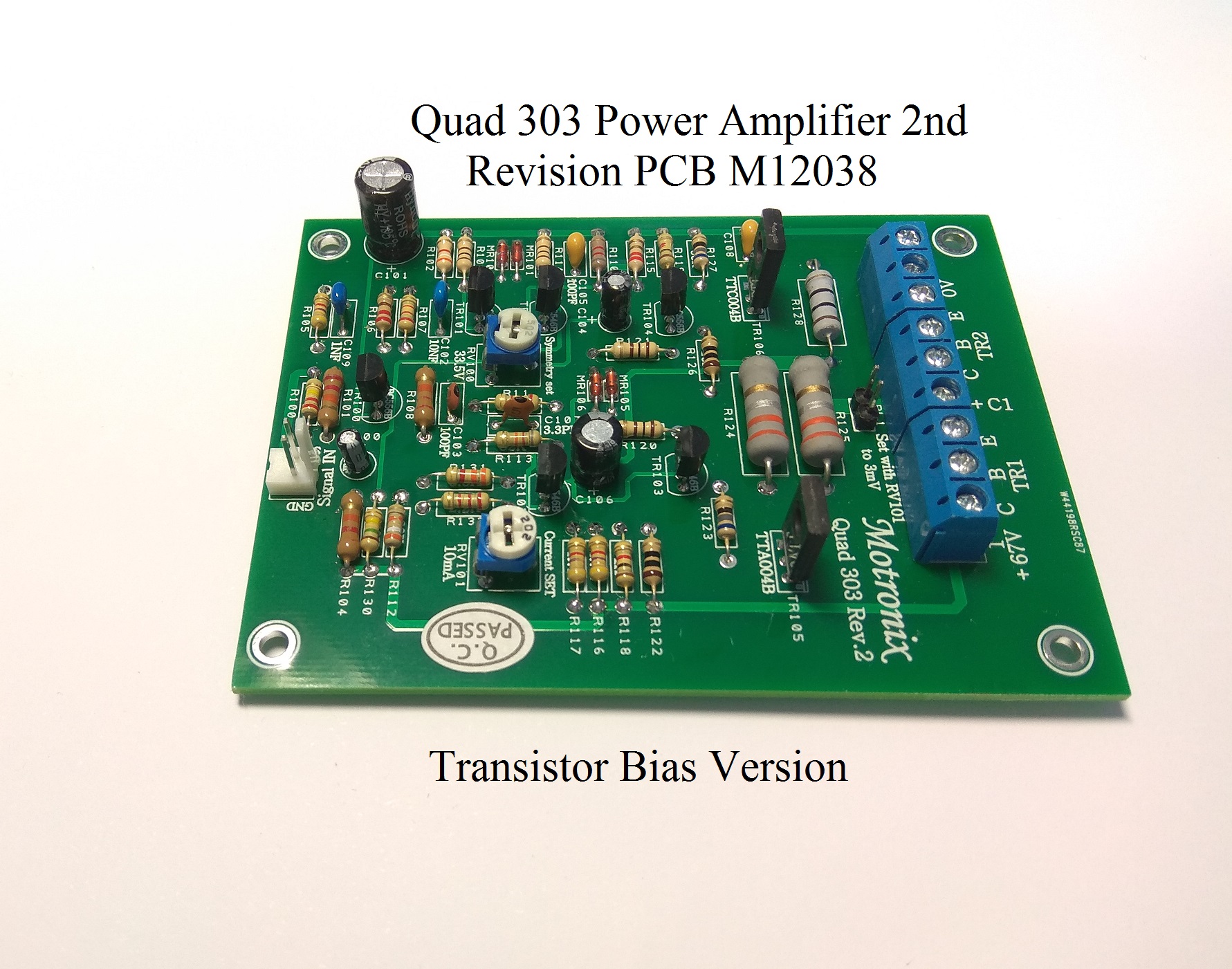

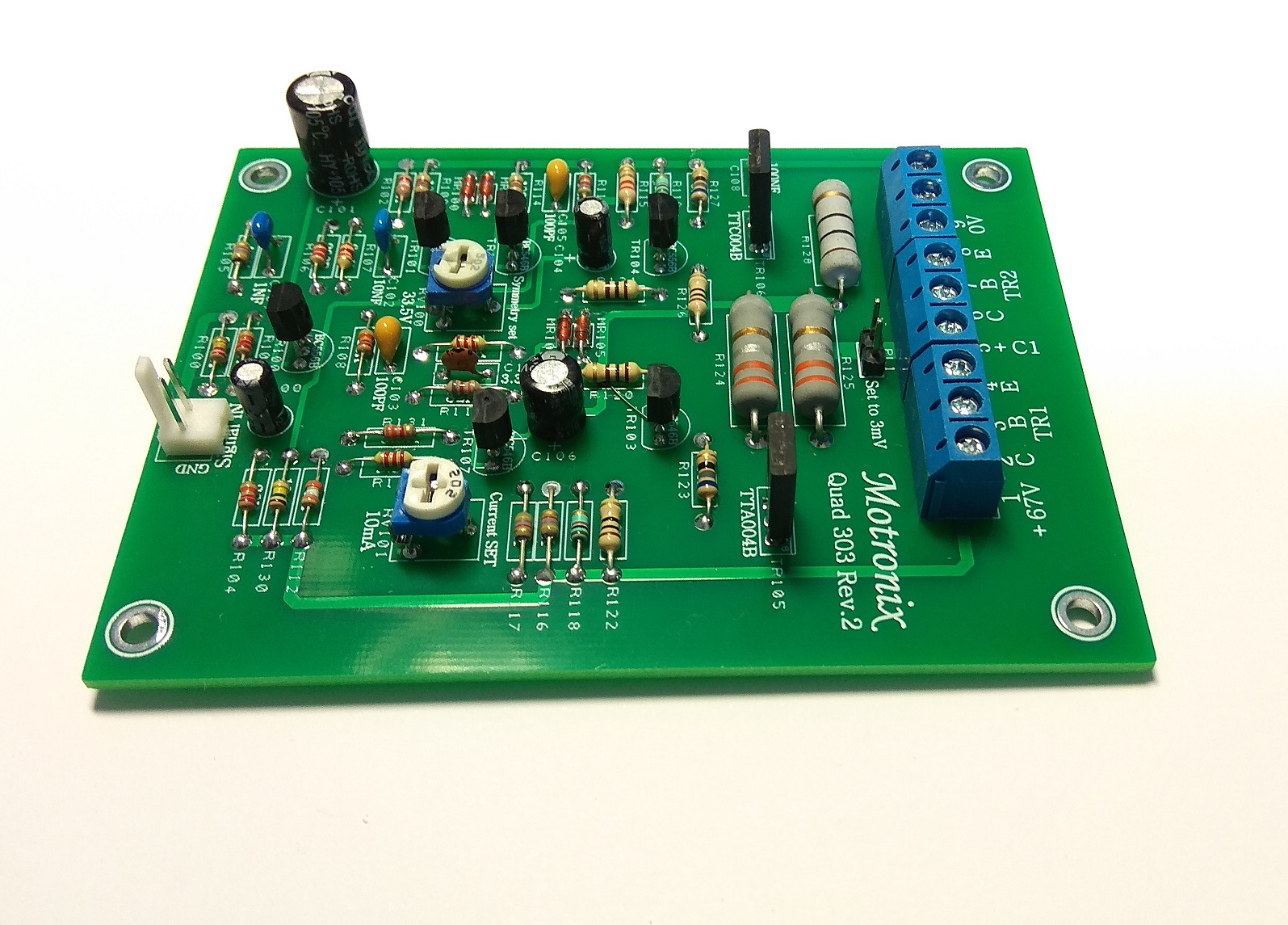

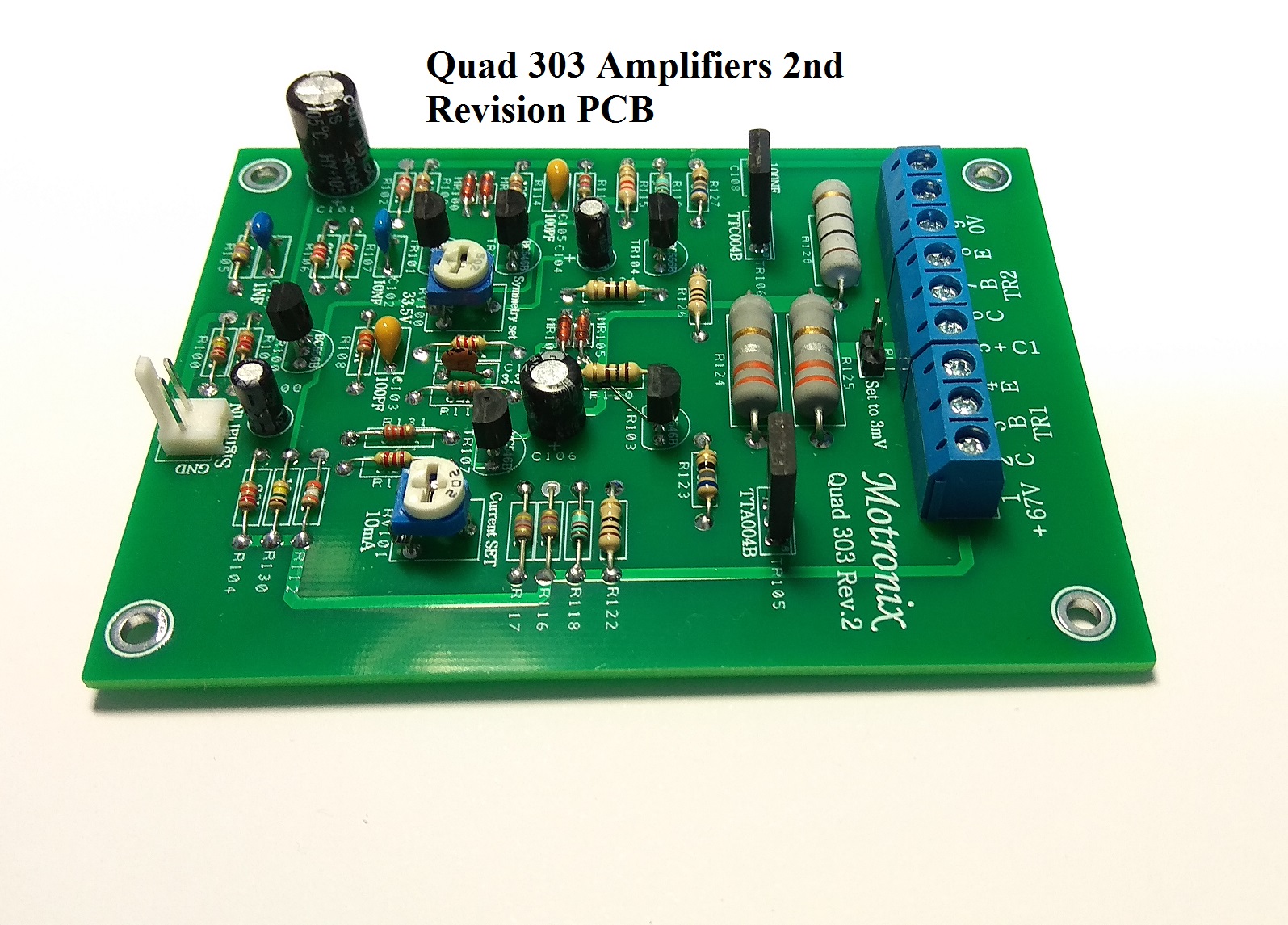

NEW Transistor version: 100mm*75mm Green double-sided HAL,FR4 1.6MM

Additional information

Model

Old Diode Version, New Transistor Version
