Description
RIAA-1303
Ultra Low Noise & High Quality Phono Pre Amp
SPECIAL Design With Low noise Audio amp ic
No Capacitive load at input socket
Very accurate RIAA Curve
Matched Capacitors for maximum balance

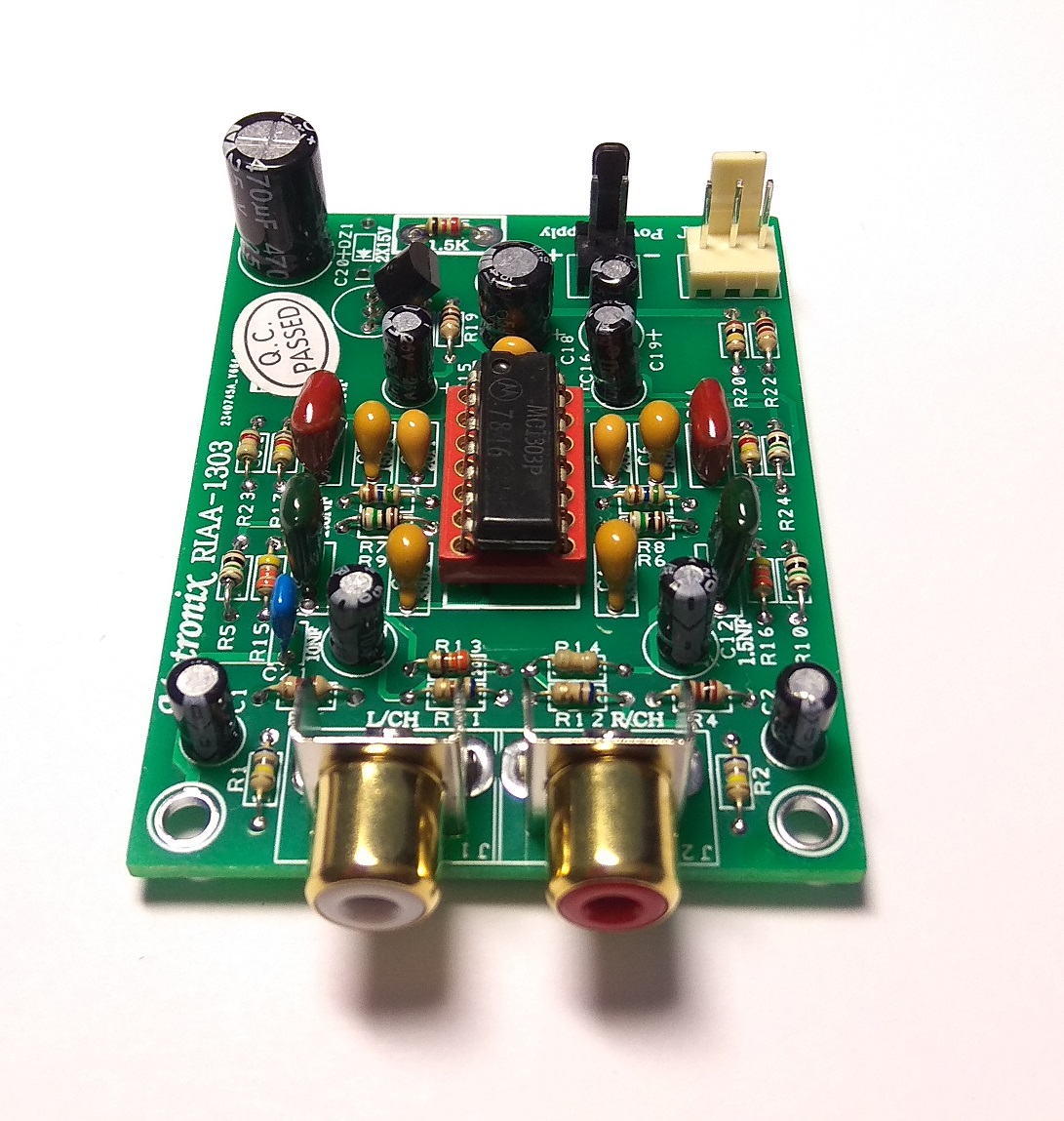

Gold Plated RCA Input connectors
The Good Old Unique Sound Quality
Original Gold Pin Augat IC Socket
Assembled Board
MM Phono Preamp
Board Powered By Single 17-24Vdc
High quality and reliability FR4 1.6MM
High quality components

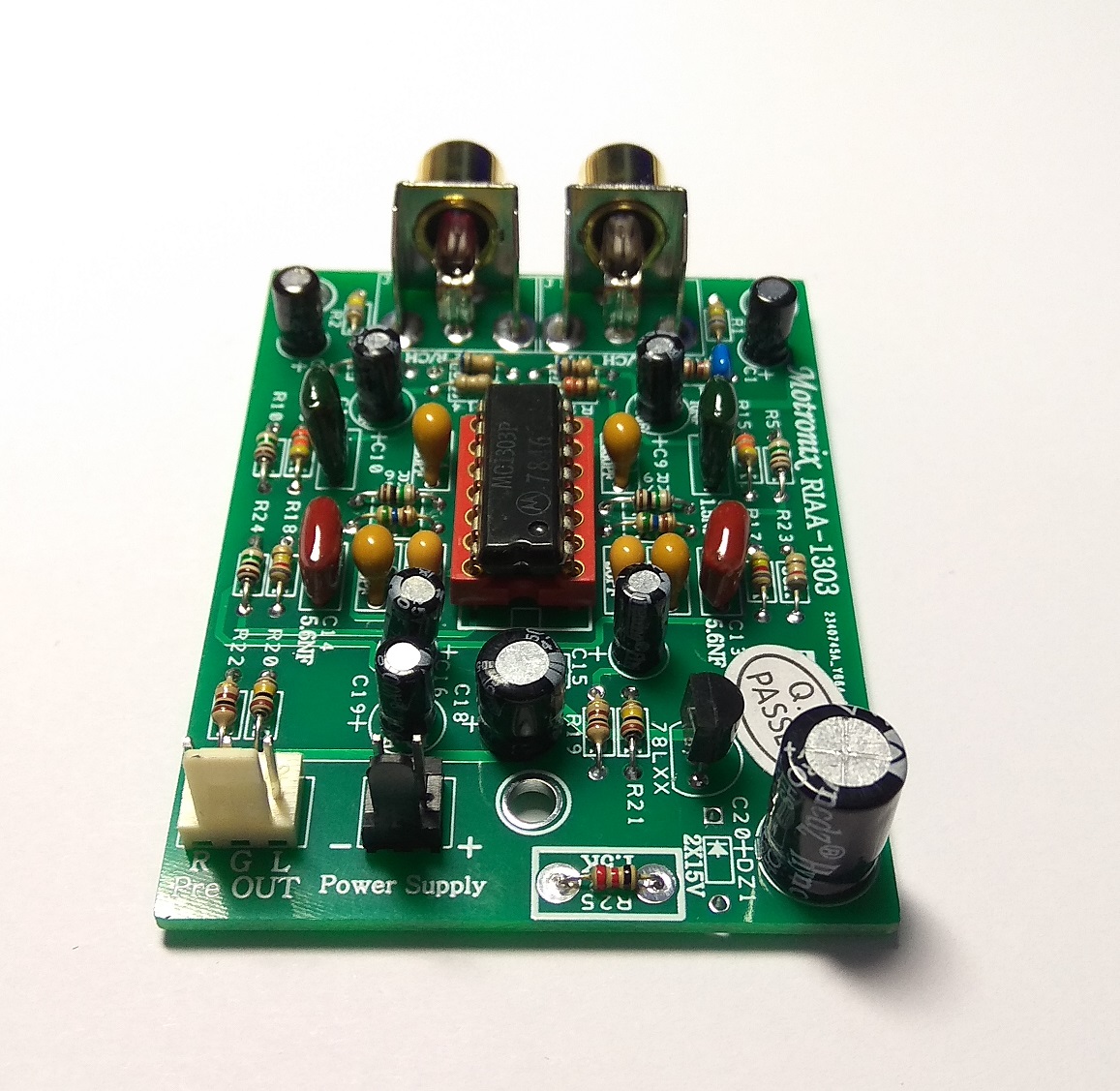

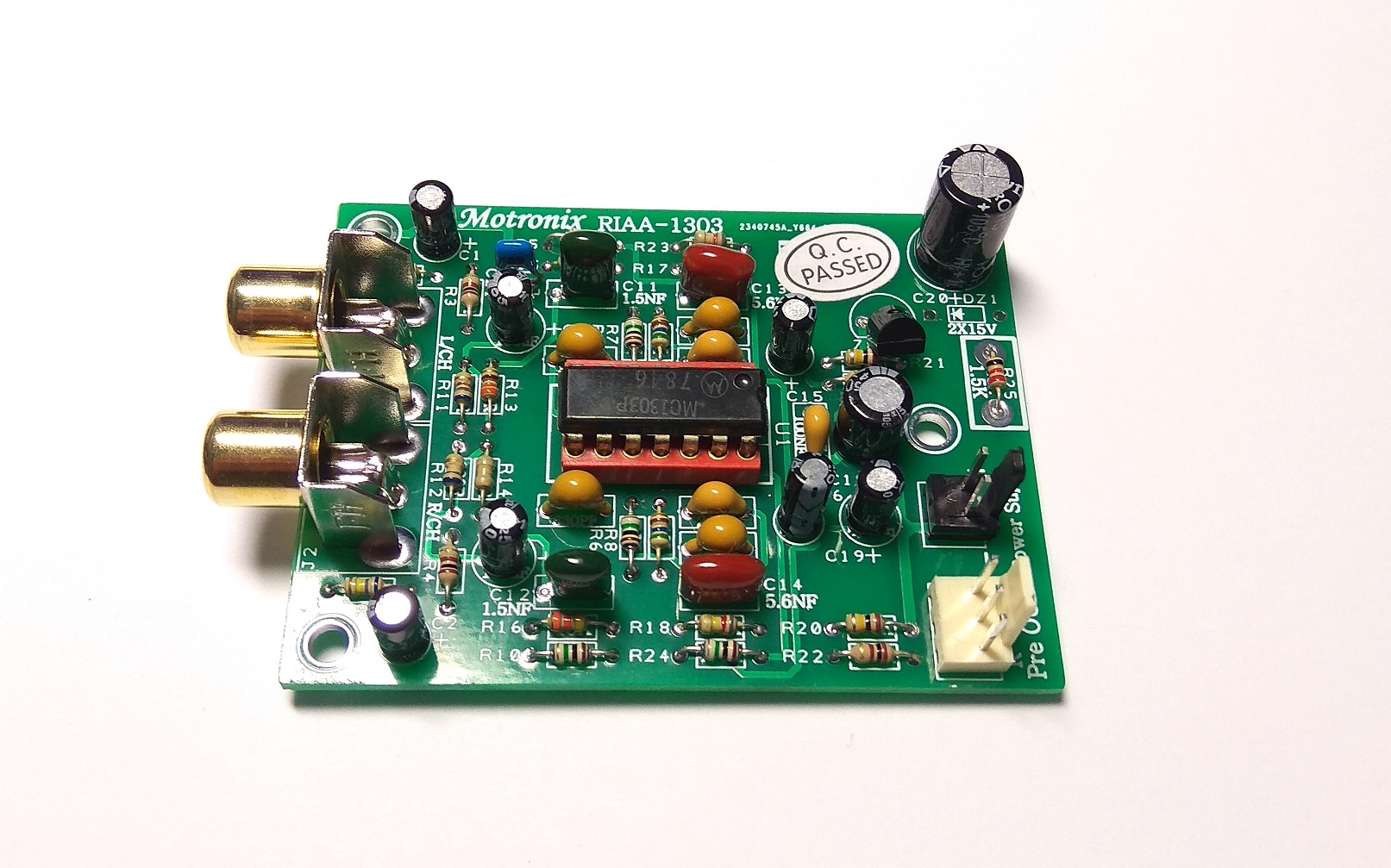

RIAA-1303 Model With MC1303P/SN76131/RC4739 IC

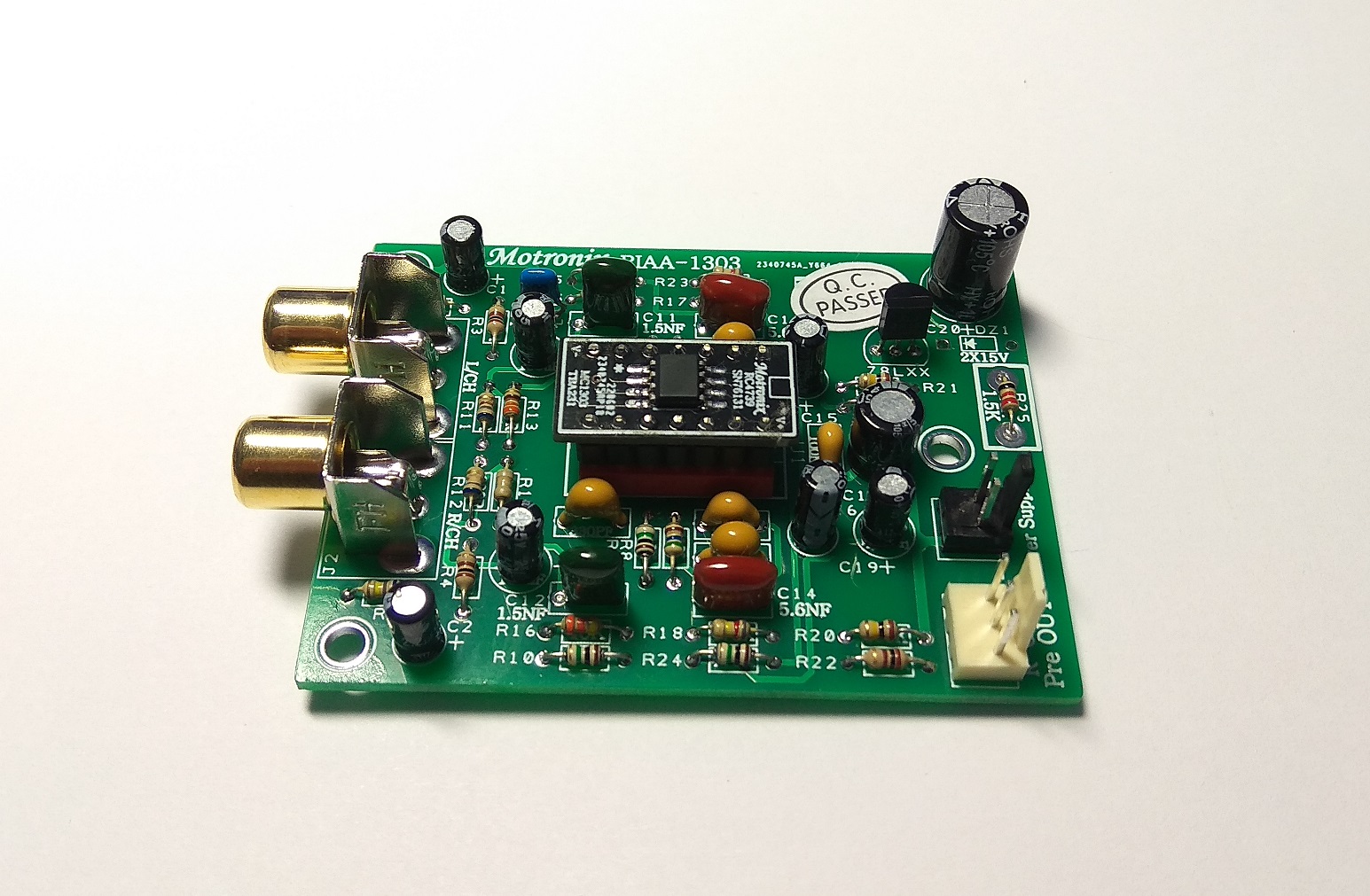

RIAA-1303 MC33078 Model With MC33078 IC on special Adapter
This item is only PCB with components Assembled
Output Connectors will supply
Input sensitivity: 2mv (Overload @ 50mv) @ 1Khz
Freq. Response: 24-20000 Hz +/- 1.5db
Input Impedance: 47Kohm
Working Voltage:
Single 17-24 Vdc (Recommended 18-20Vdc)
PCB Size:
67mm*50mm double-sided HAL,FR4 1.6MM
