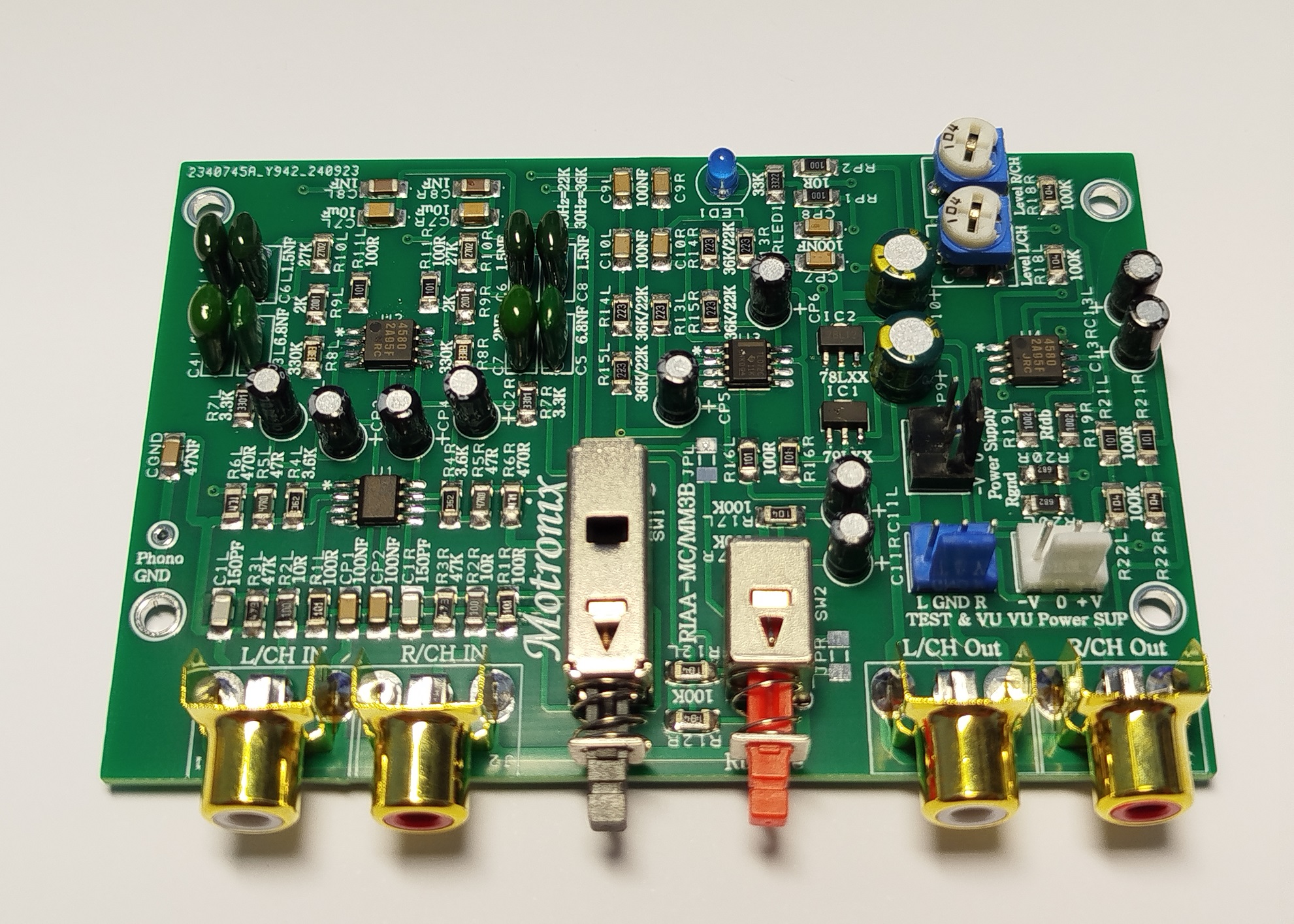

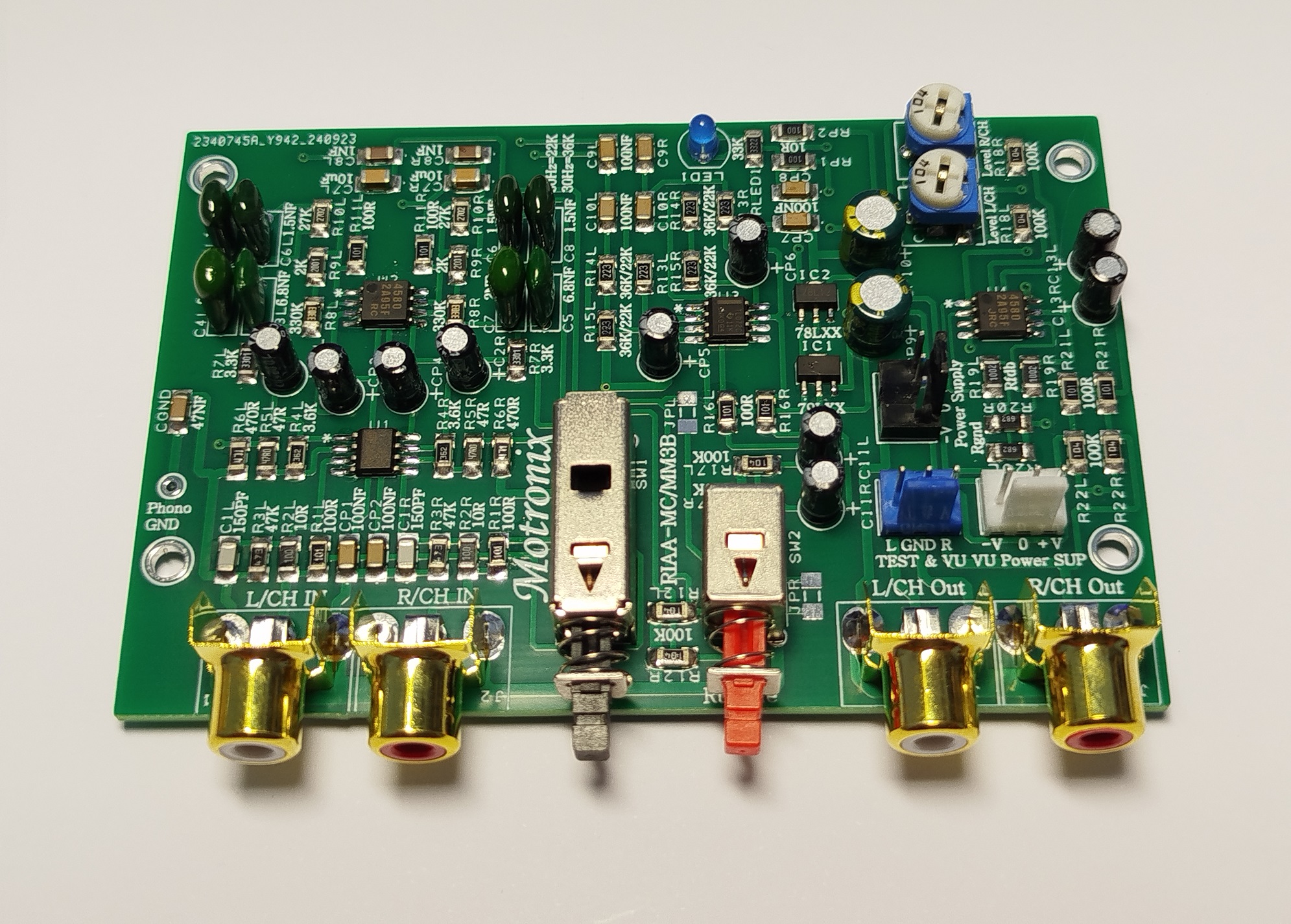

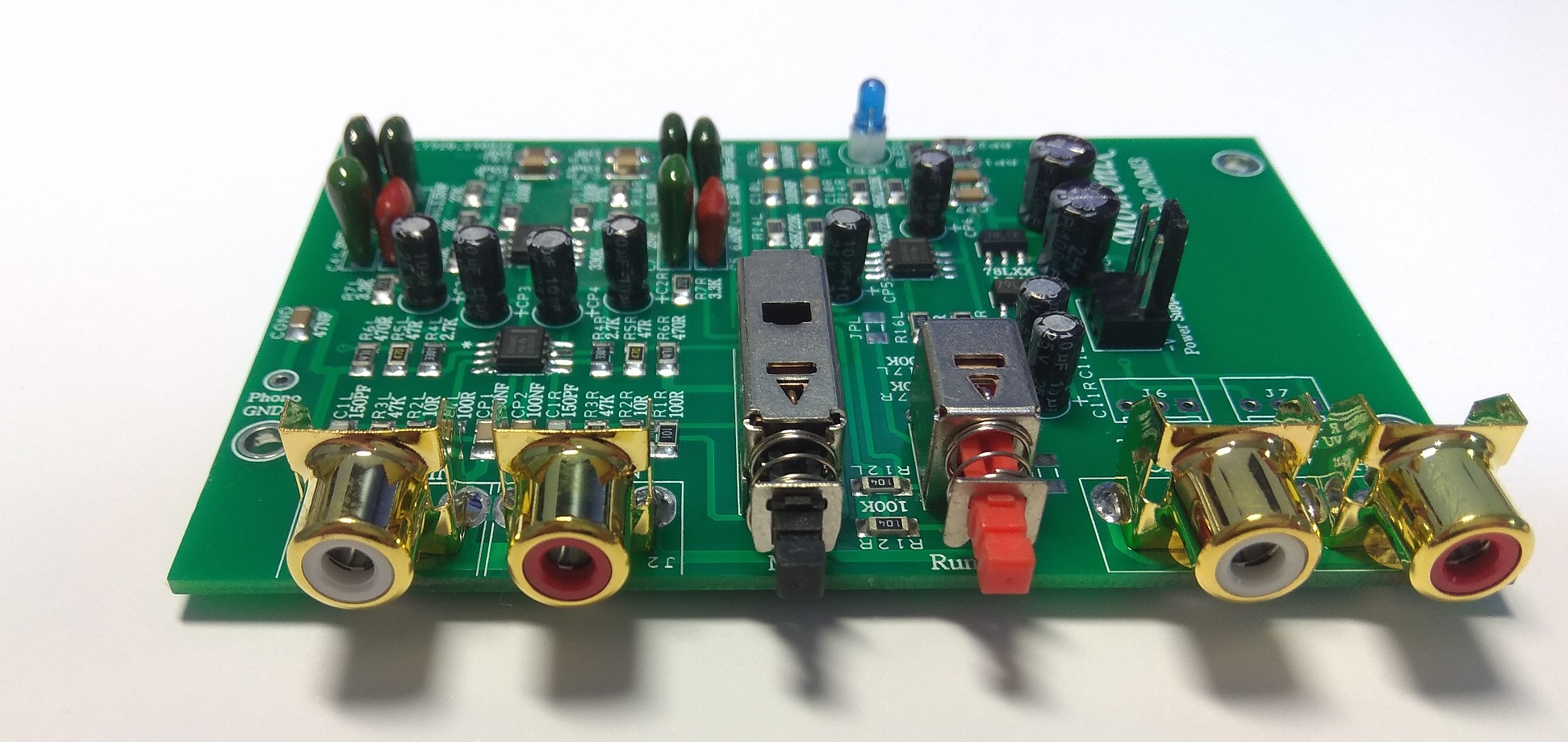

Name: RIAA-MC/MM3 Phono stage MM/MC RIAA High quality &amp; low noise Phono stage
SKU: 3454
Availability: InStock

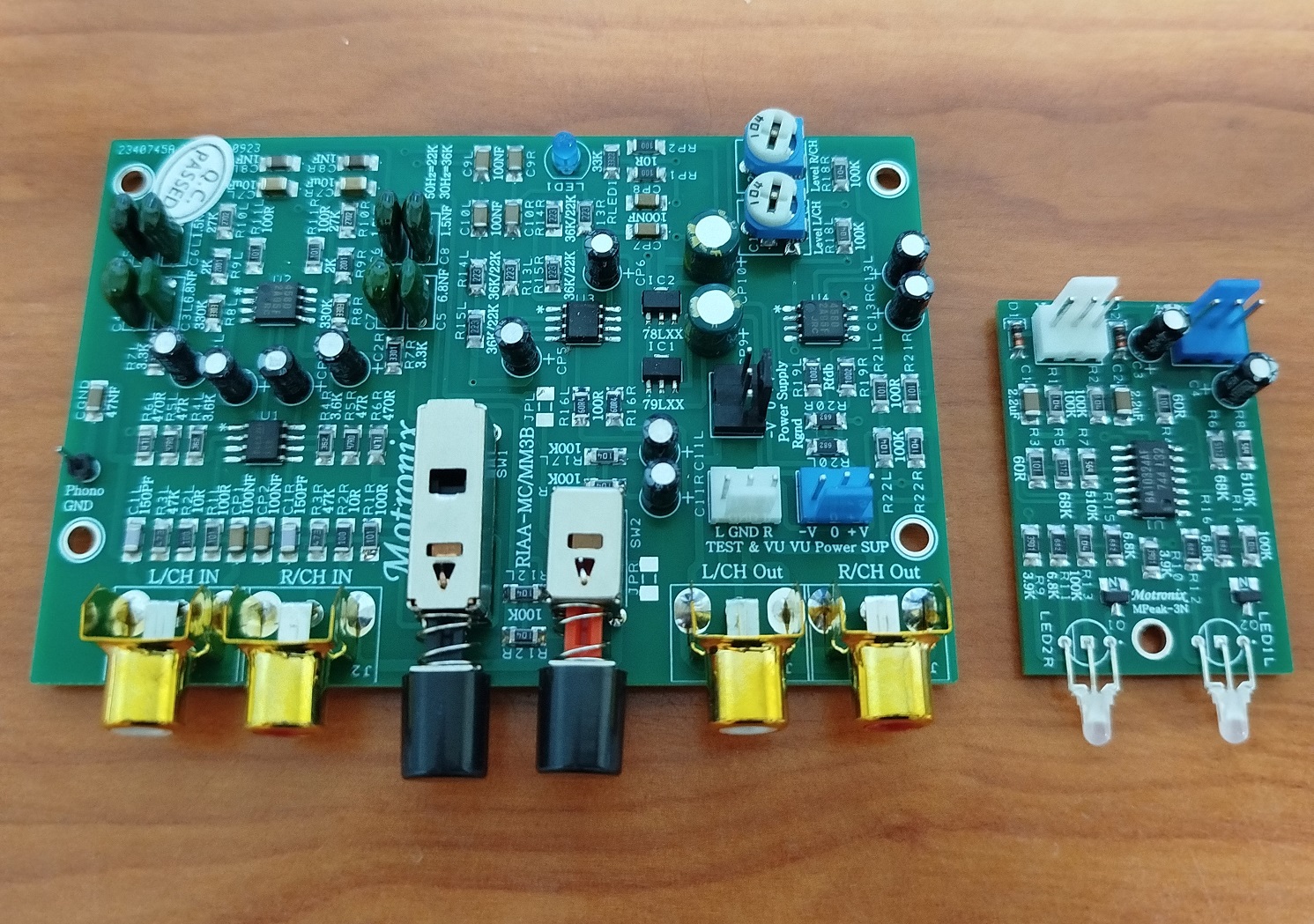

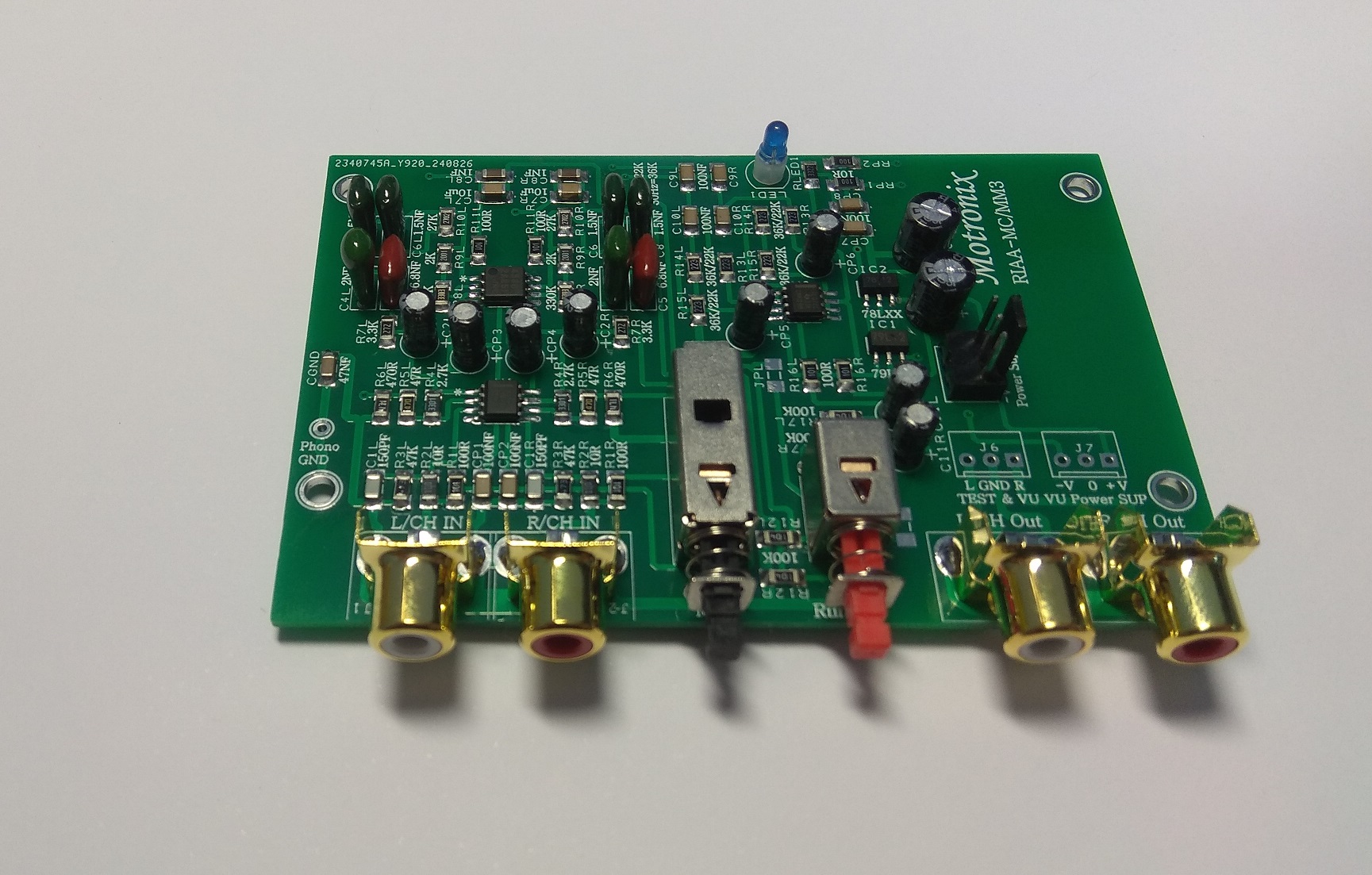

RIAA-MC/MM3 Phono stage MM/MC RIAA High quality & low noise Phono stage

Description

Amazing Phono Stage Preamp

High quality low noise MM/MC Phono stage

Build you own high quality Phono stage

High Level Variable output stage

Gold Input/Output RCA

With Led Signal Level (Only at Motronix web shop)

Green Led -15dbu Red Led +3dbu

You will be very surprised from the quality of the sound and the product

order option:

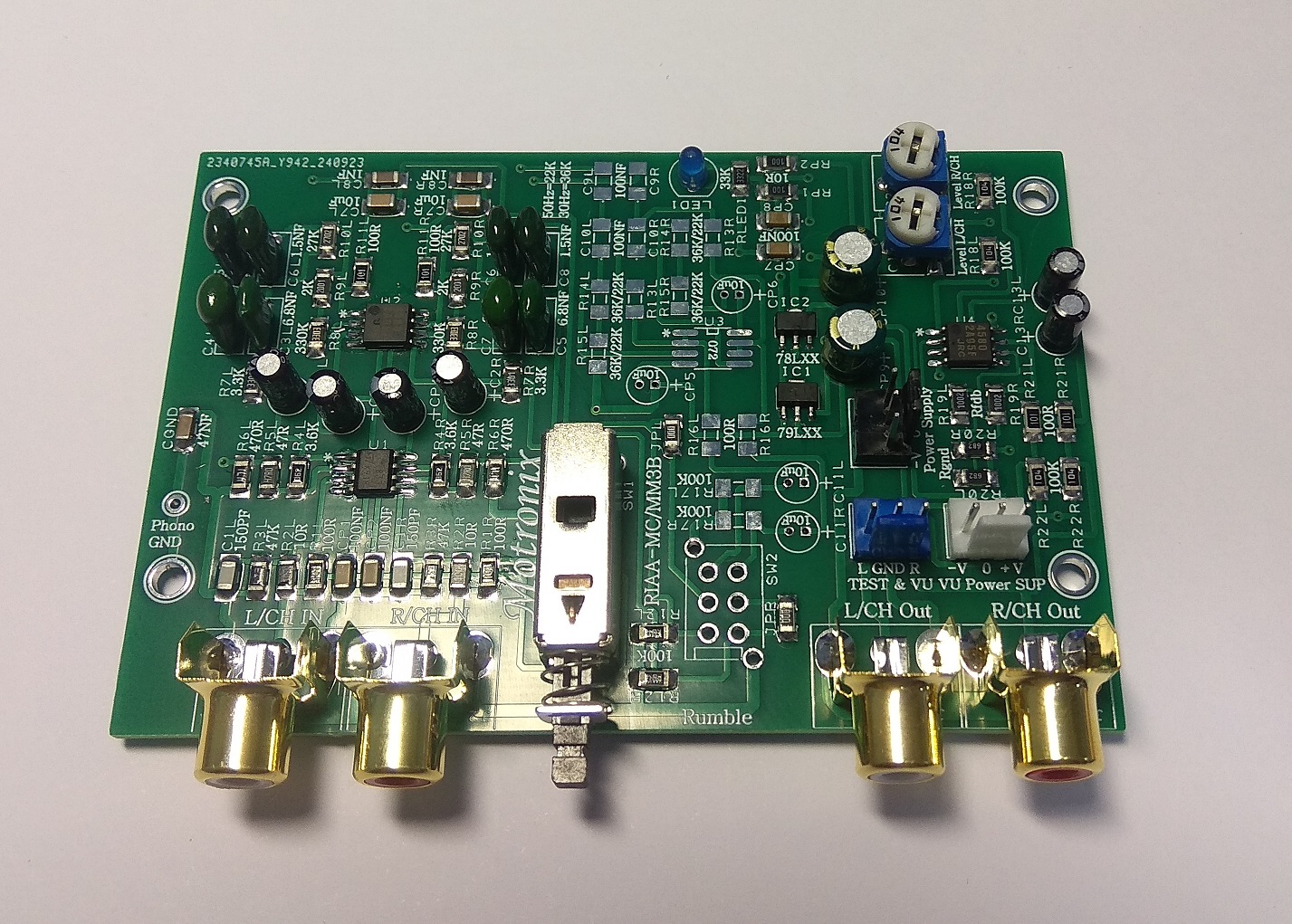

1. RIAA-MC/MM3 with Rumble 50Hz 12db filter

2. RIAA-MC/MM3 with Rumble 30Hz 12db filter

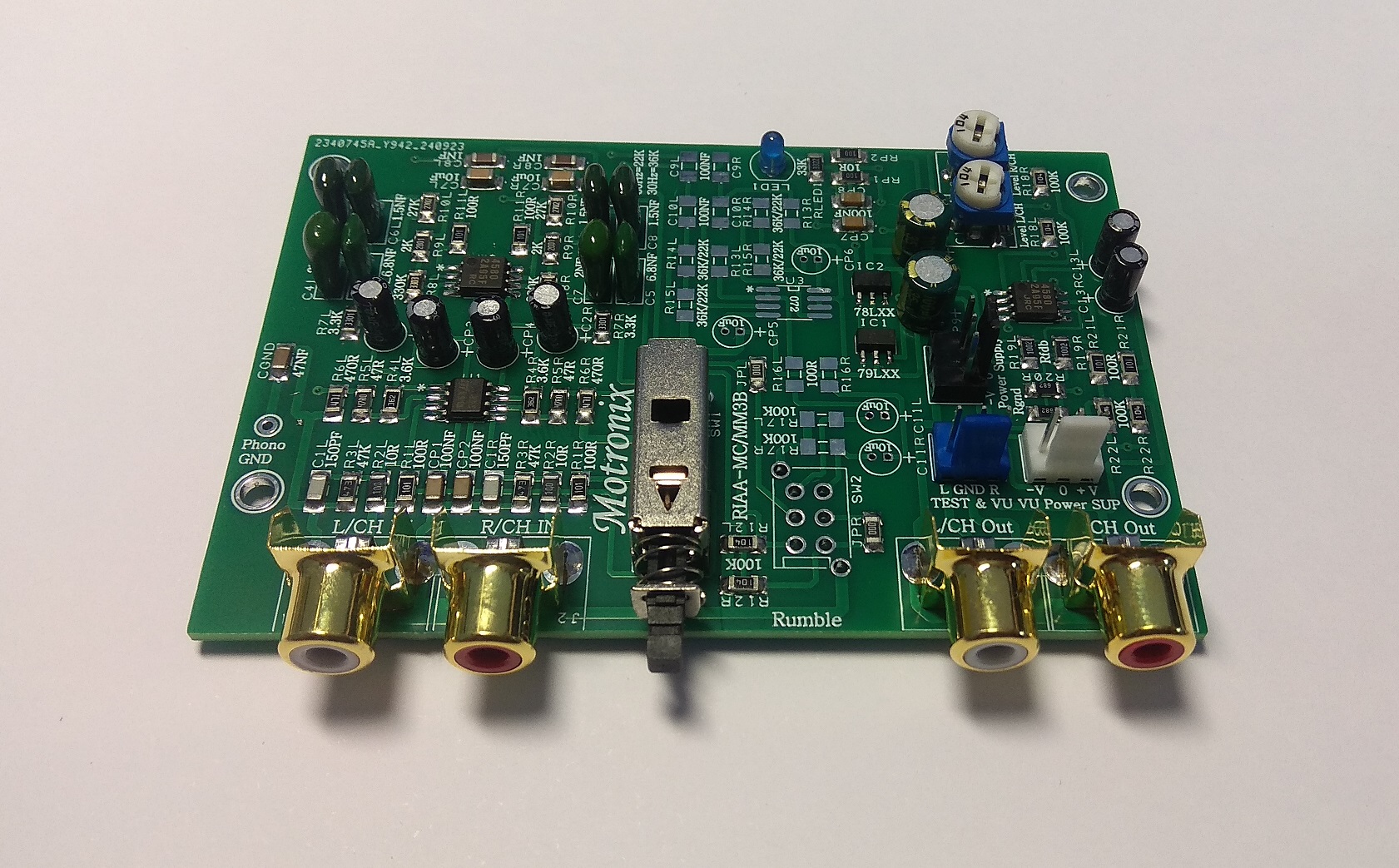

3. RIAA-MC/MM3 without filter

4. Without Amplification output stage

Technical data:

Input signal MM 2.5mv/47Kohm MC 250uv/100Ohm

Output Signal set to 775mV (0dbu) with 3mv 1Khz at input

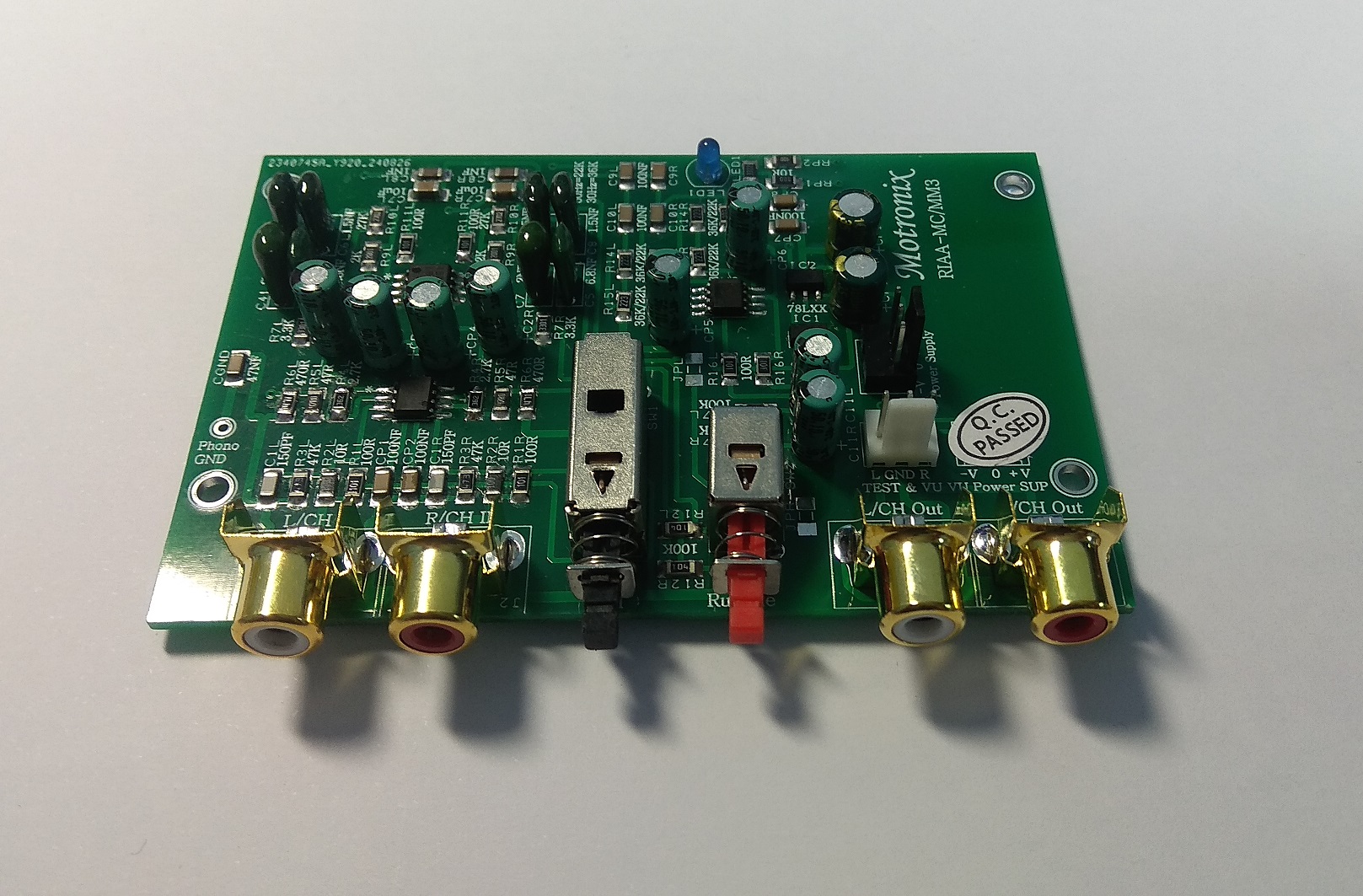

Model Without Amplification stage:

Fixed output signal 245mV -10dbu with 3mv 1Khz at input

Freq. response 20-20000 Hz Riaa Standard +/- 0.2db

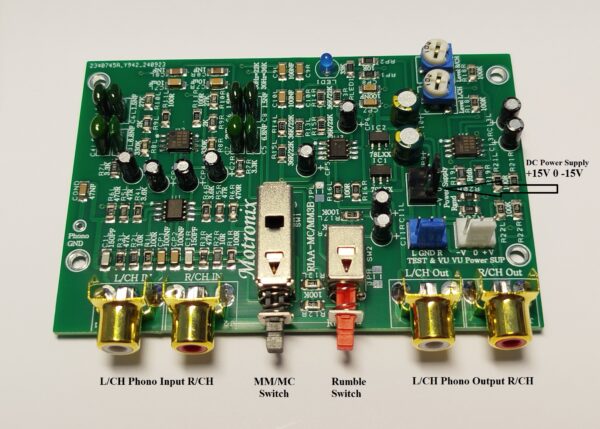

Recommended power supply:

Dual min.2x15Vdc max. 24Vdc (+v 0 -v)

Current consumption: 30mA max.

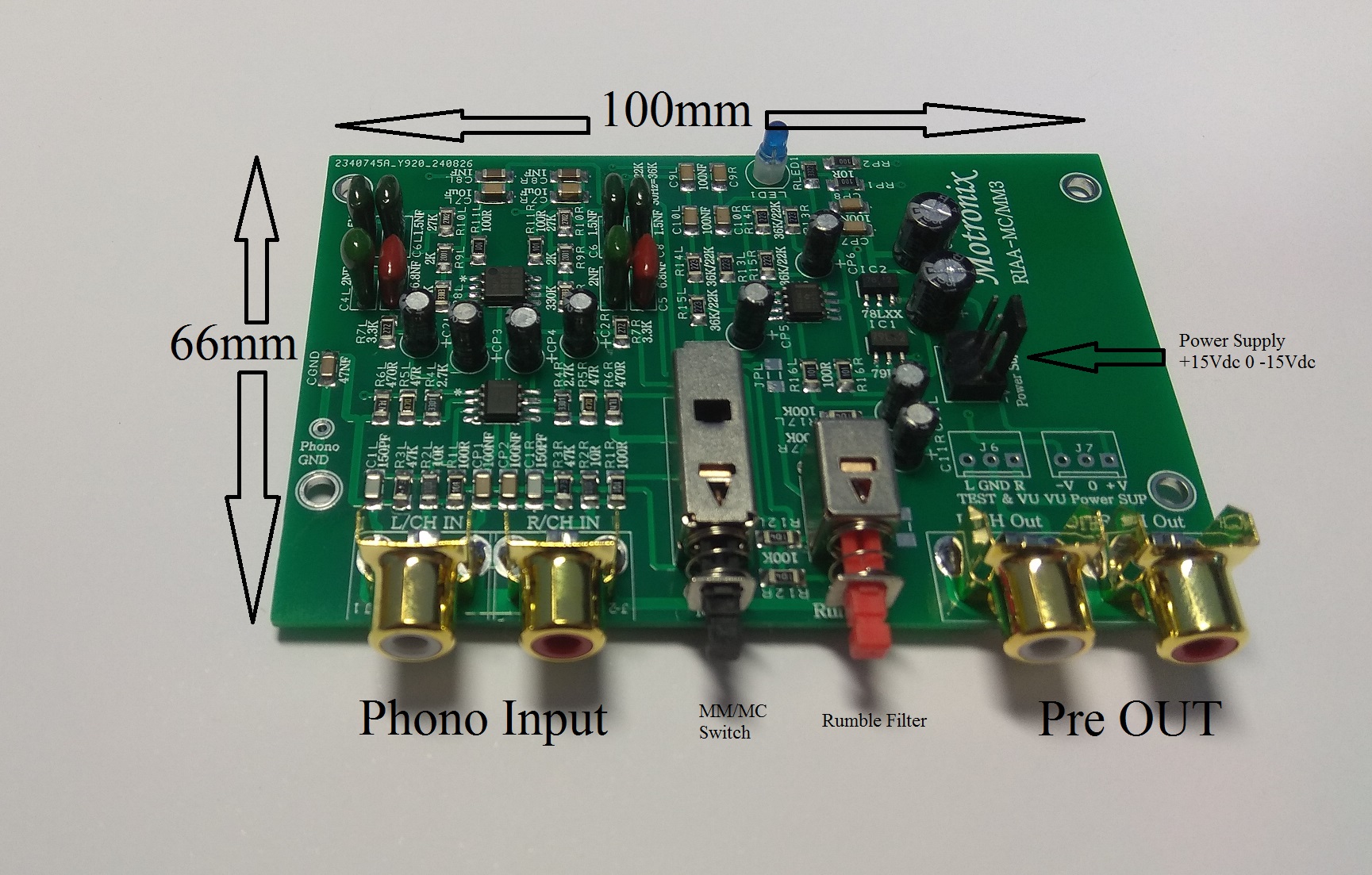

PCB Size: 100mm x 67mm

Additional information

Model	With Rumble 50Hz Filter, With Rumble 30Hz Filter, Without Filter, Without Amplification
