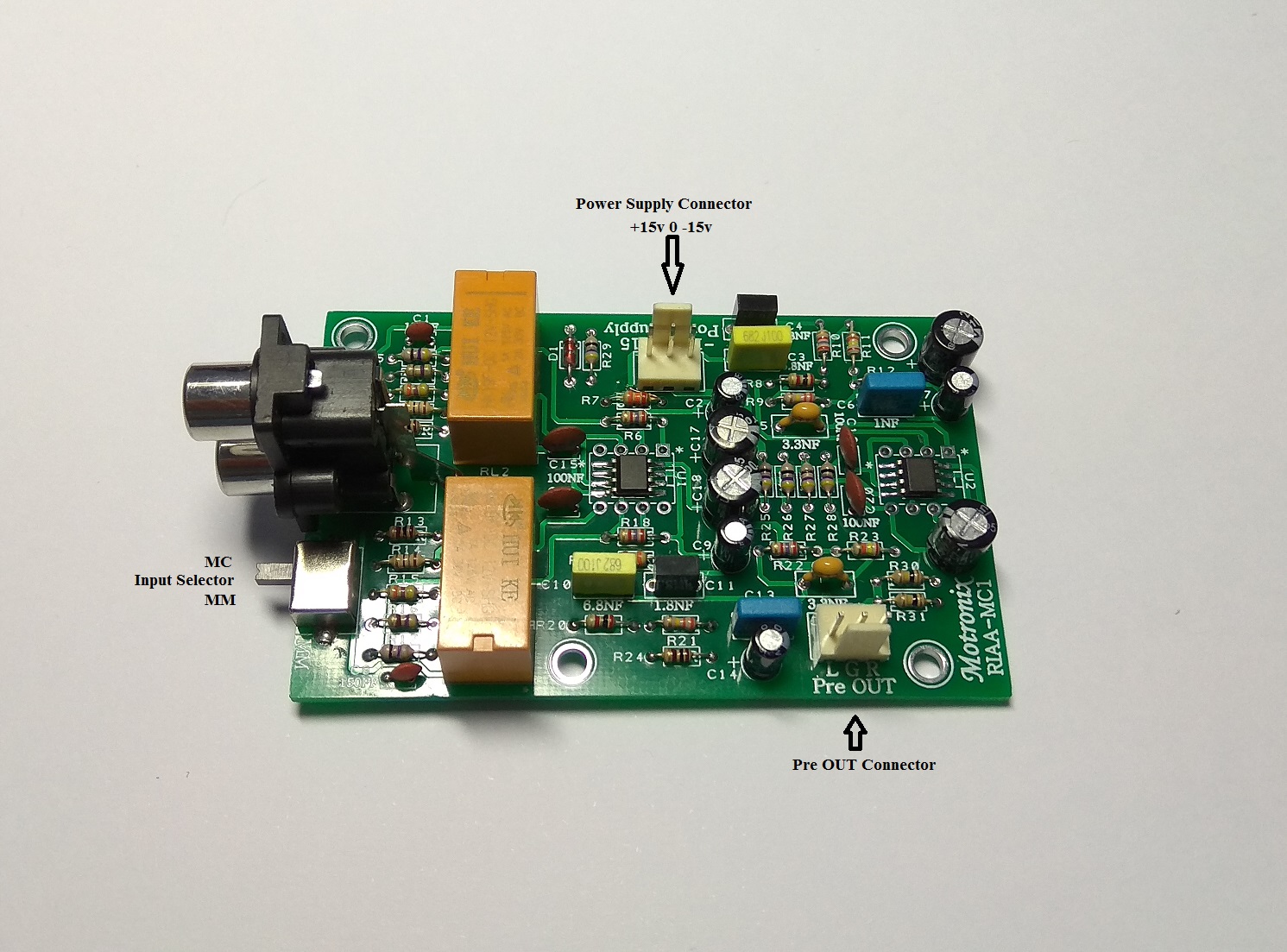

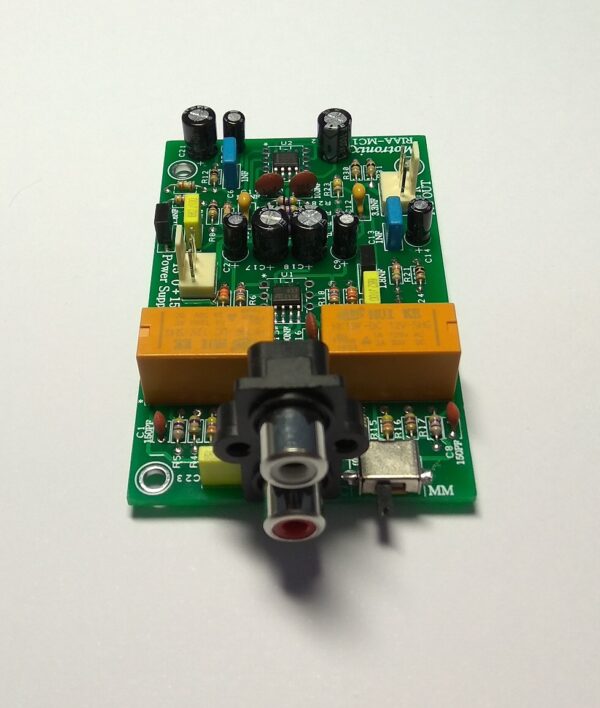

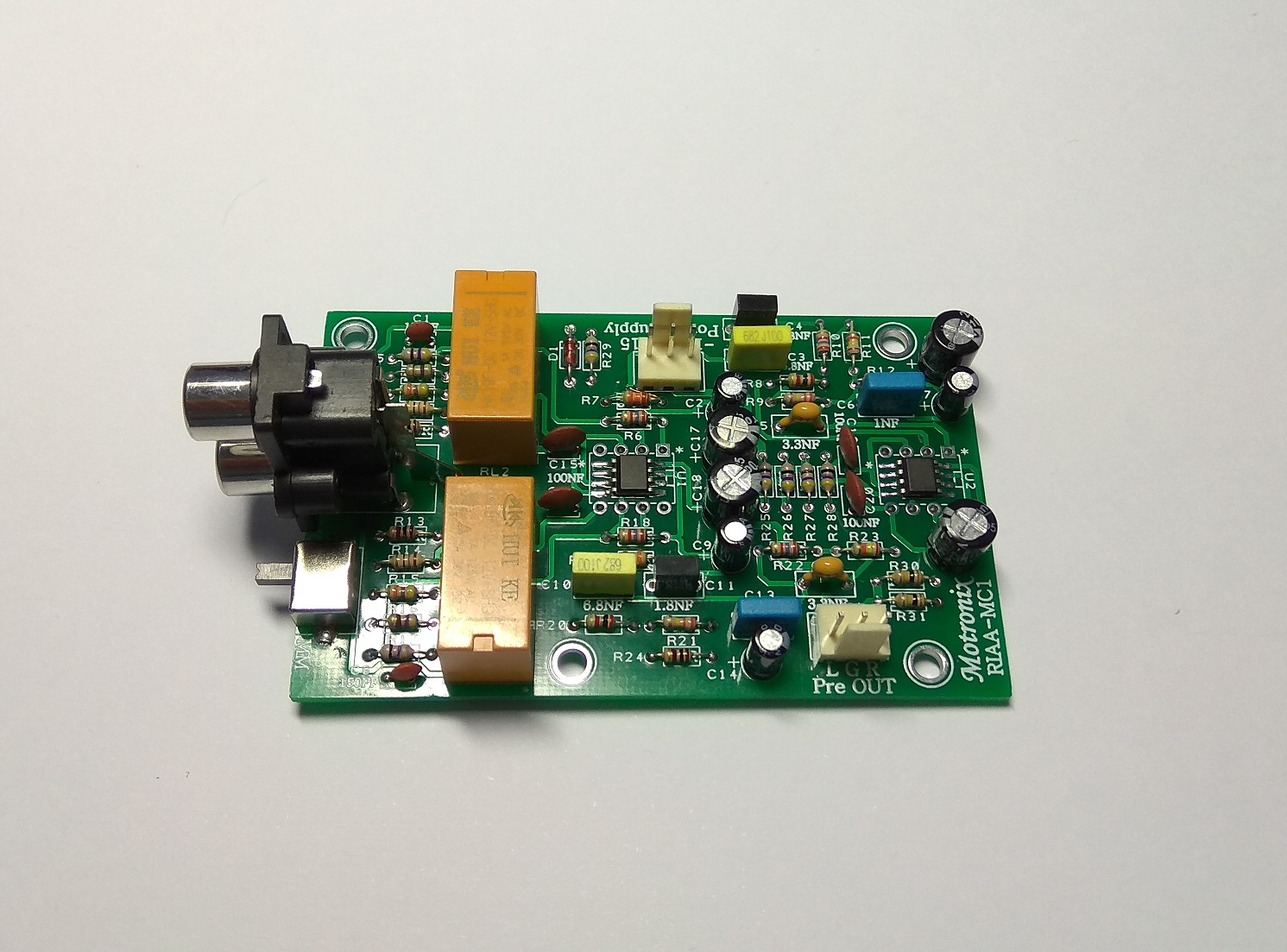

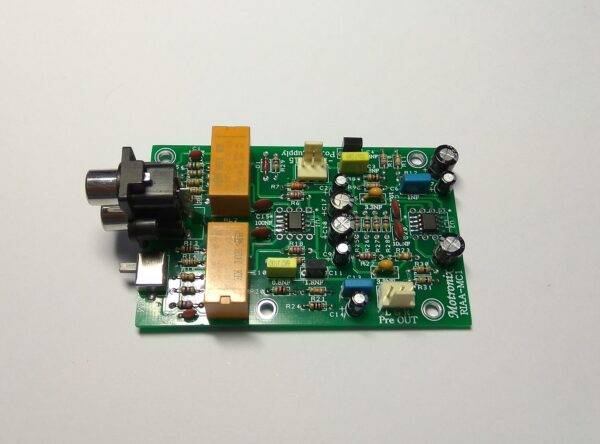

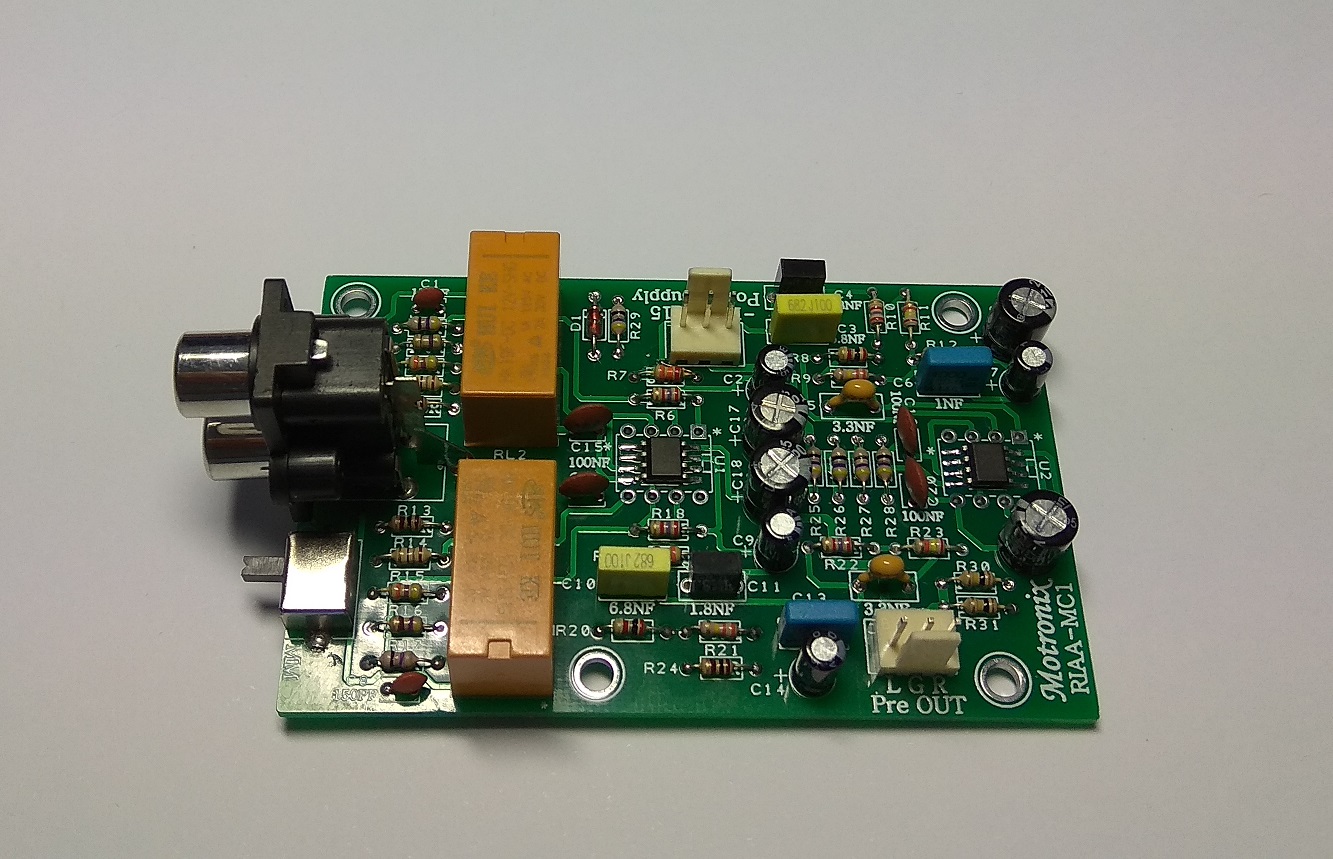

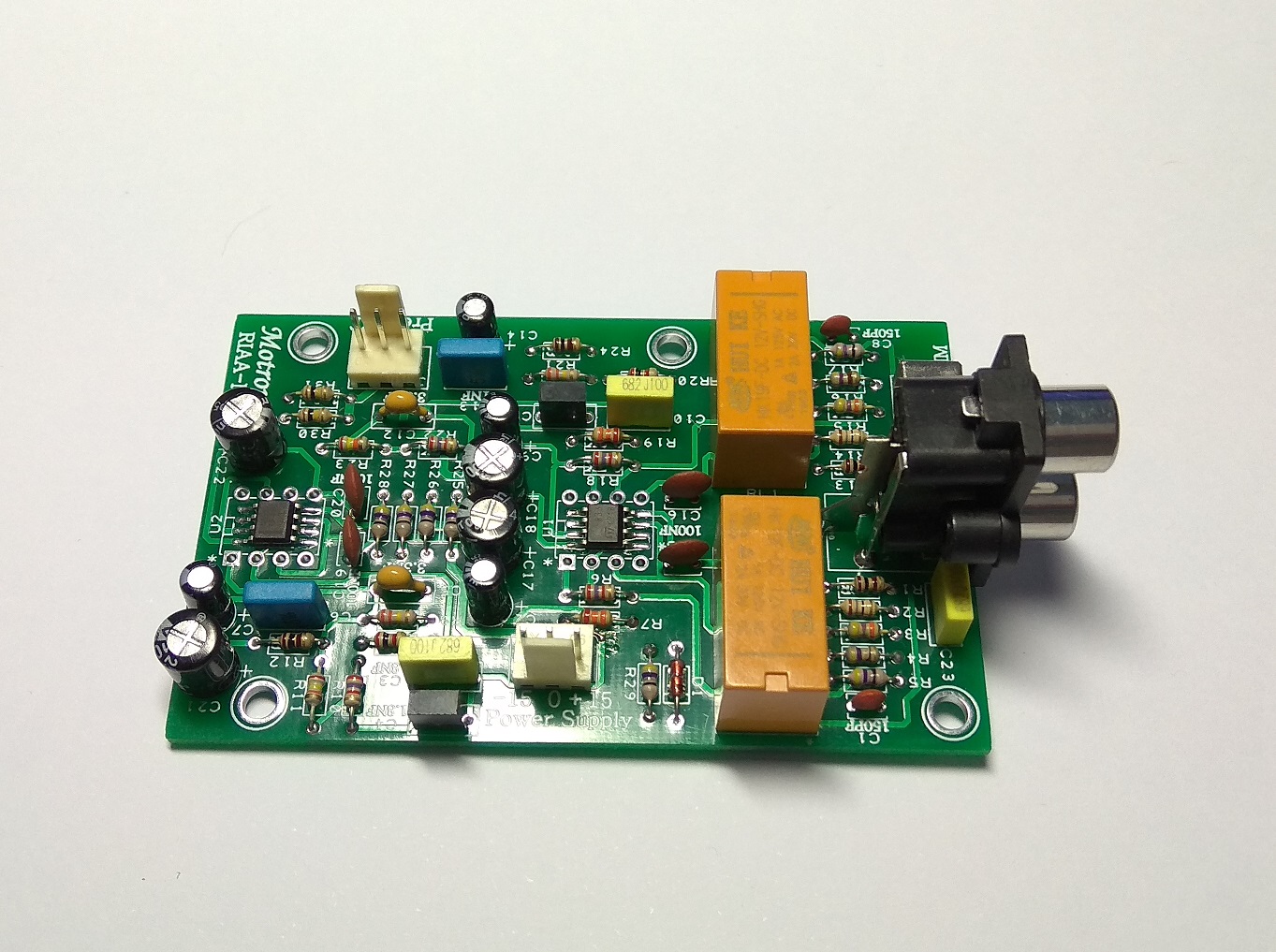

RIAA-MC1 Low Noise PRO HIGH QUALITY MM/MC PHONO PRE AMPLIFIER STAGE

$30.00 $40.00

Availability:

9 in stock

Description

RIAA-MC1

Stereo Riaa Stage with Excellent Audio performance

Very Low Noise MM/MC Phono Stage

***Matched components***
***Low Noise Op Amps***
  Input resistance: 47kΩ MM / 100Ω MC
Input capacitance: 100pf
Input sensitivity: 2.5mV MM / 0.25mV MC
Output Voltage: 450mV @ 3mV MM 1Khz IN
RIAA equalisation accuracy: +/- 0.3dB (20-20000 Hz RIAA Standard)
Output impedance: 100Ω
Power Supply: Only Regulated Dual 12 to 18Vdc (+ 0 -)
Power Supply and Output Connectors and pins are provided
PCB Size:
 80mm*50mm Green double-sided HAL,FR4 1.6MM
