Description
Tone-1N / Sinus-1A / Sinus1TH
Fixed Approximately 1Khz Signal Injector

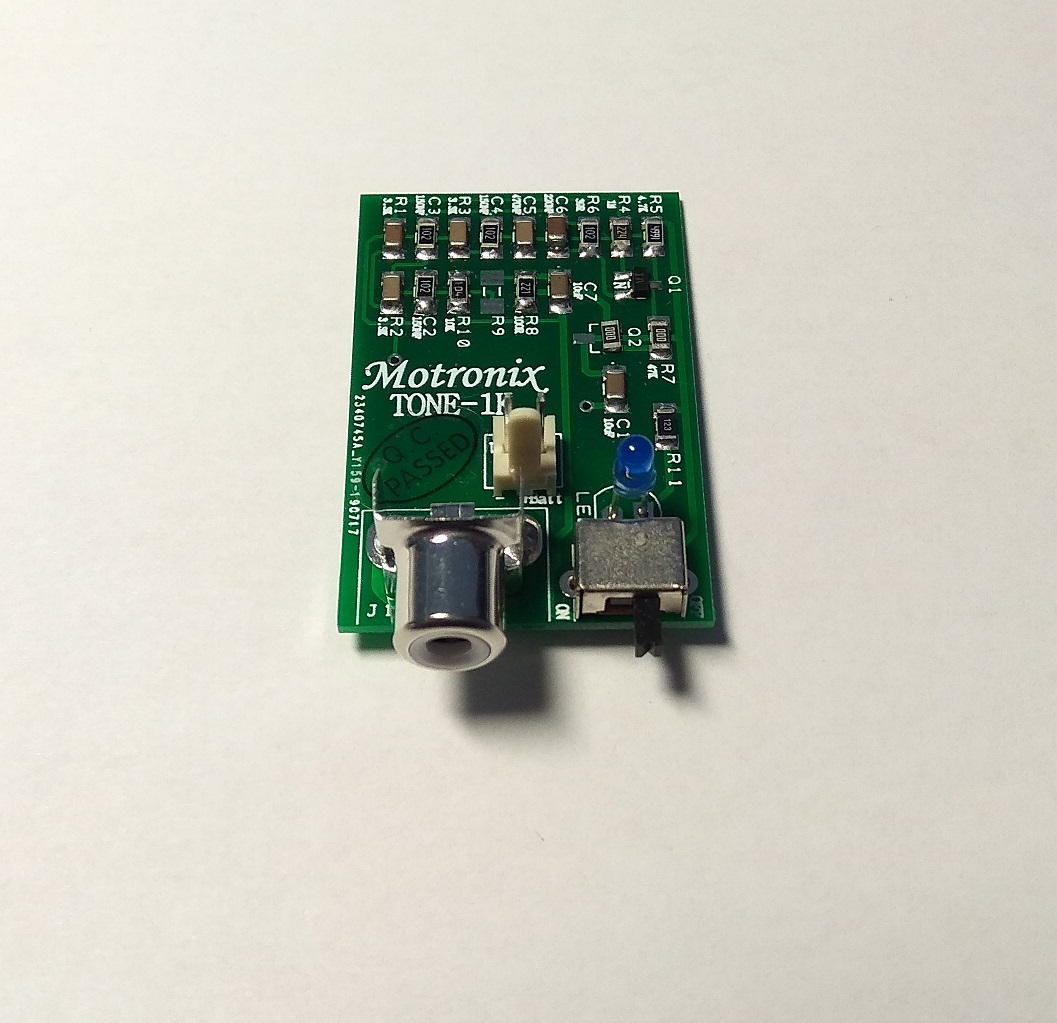

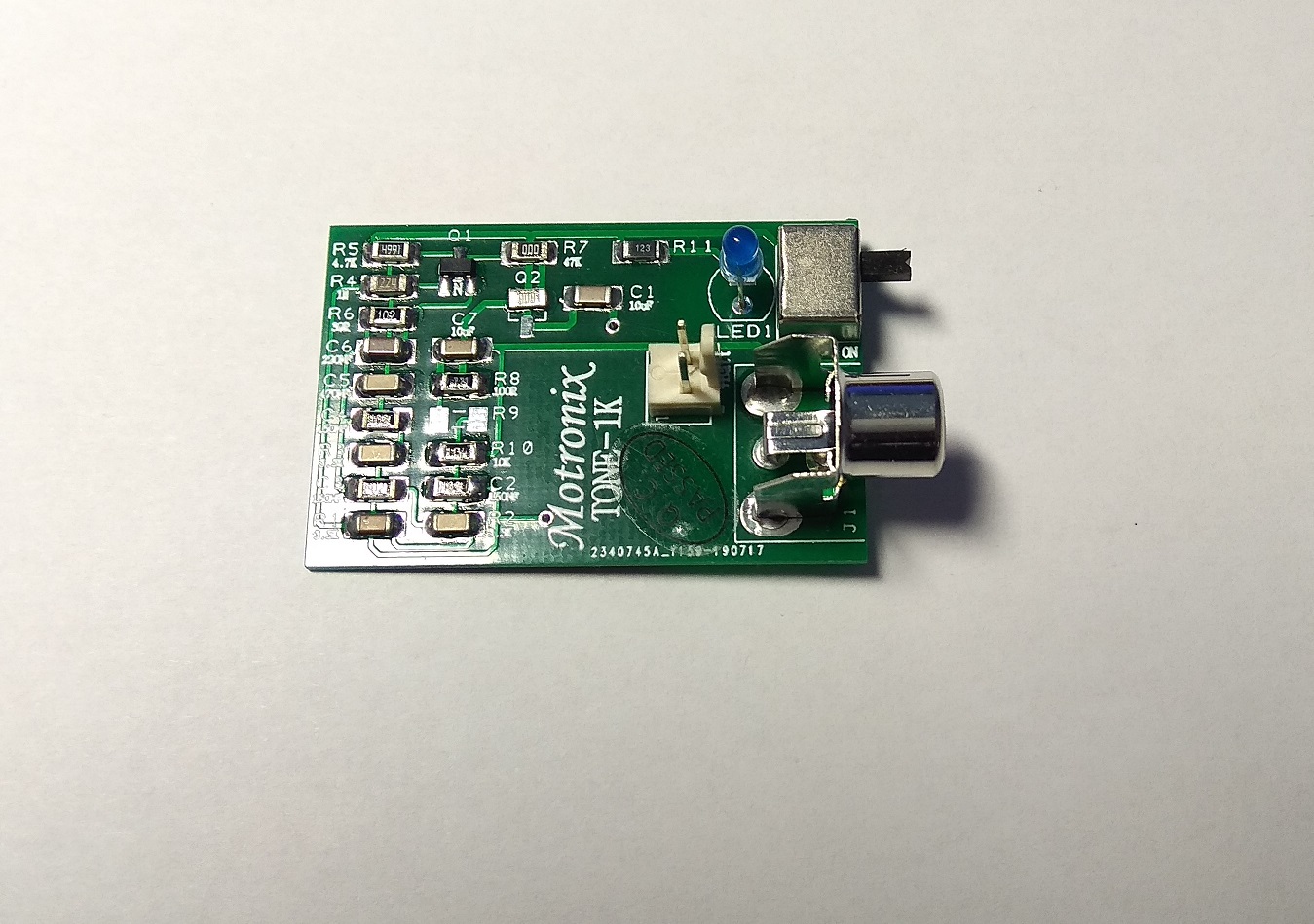

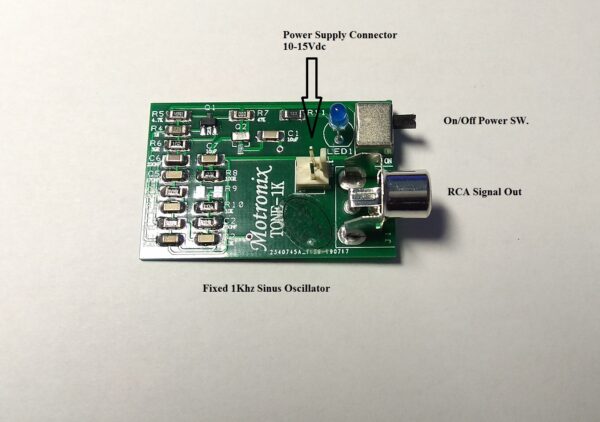

Tone-1N model with On/Off switch and Power On Led

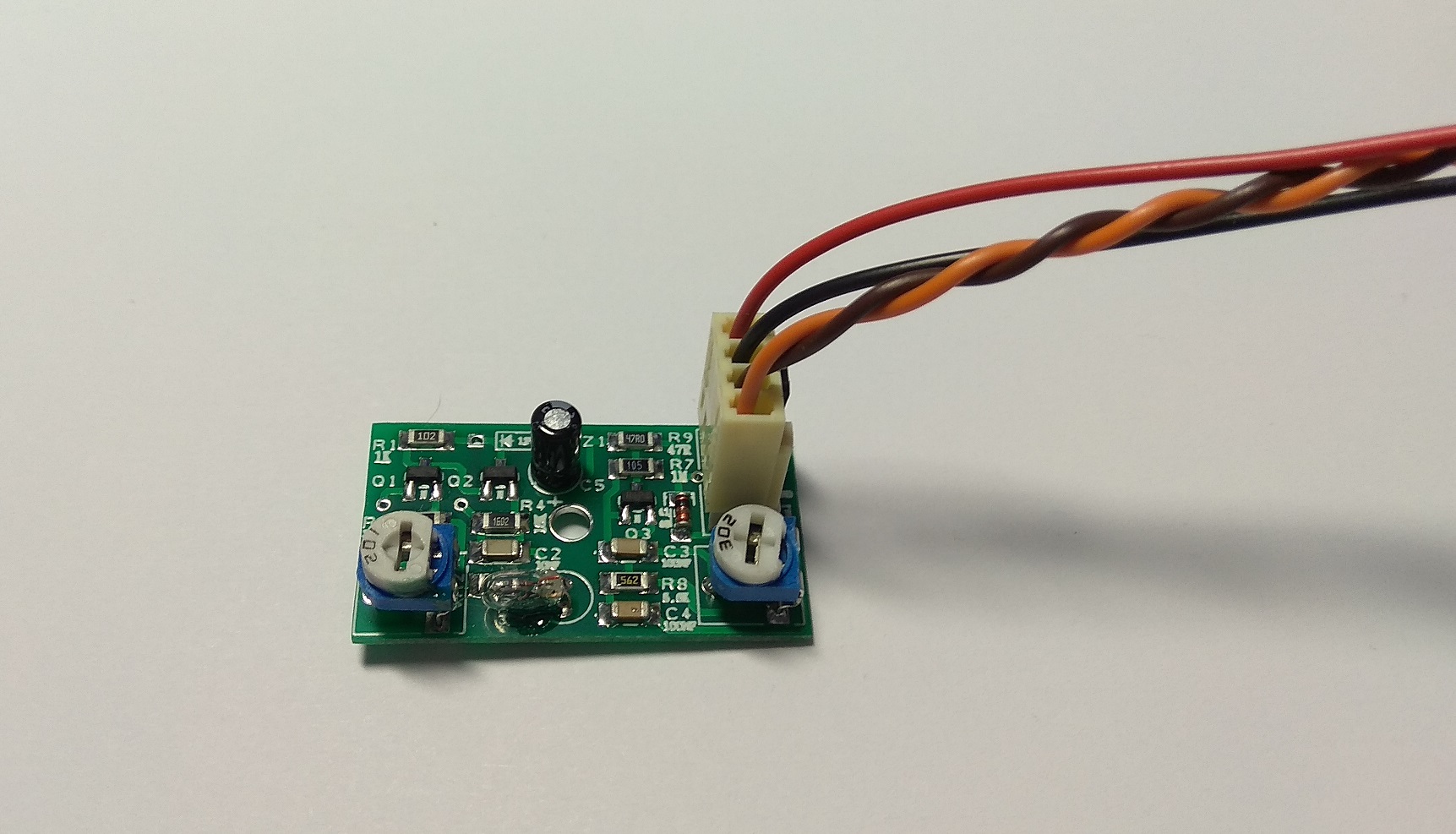

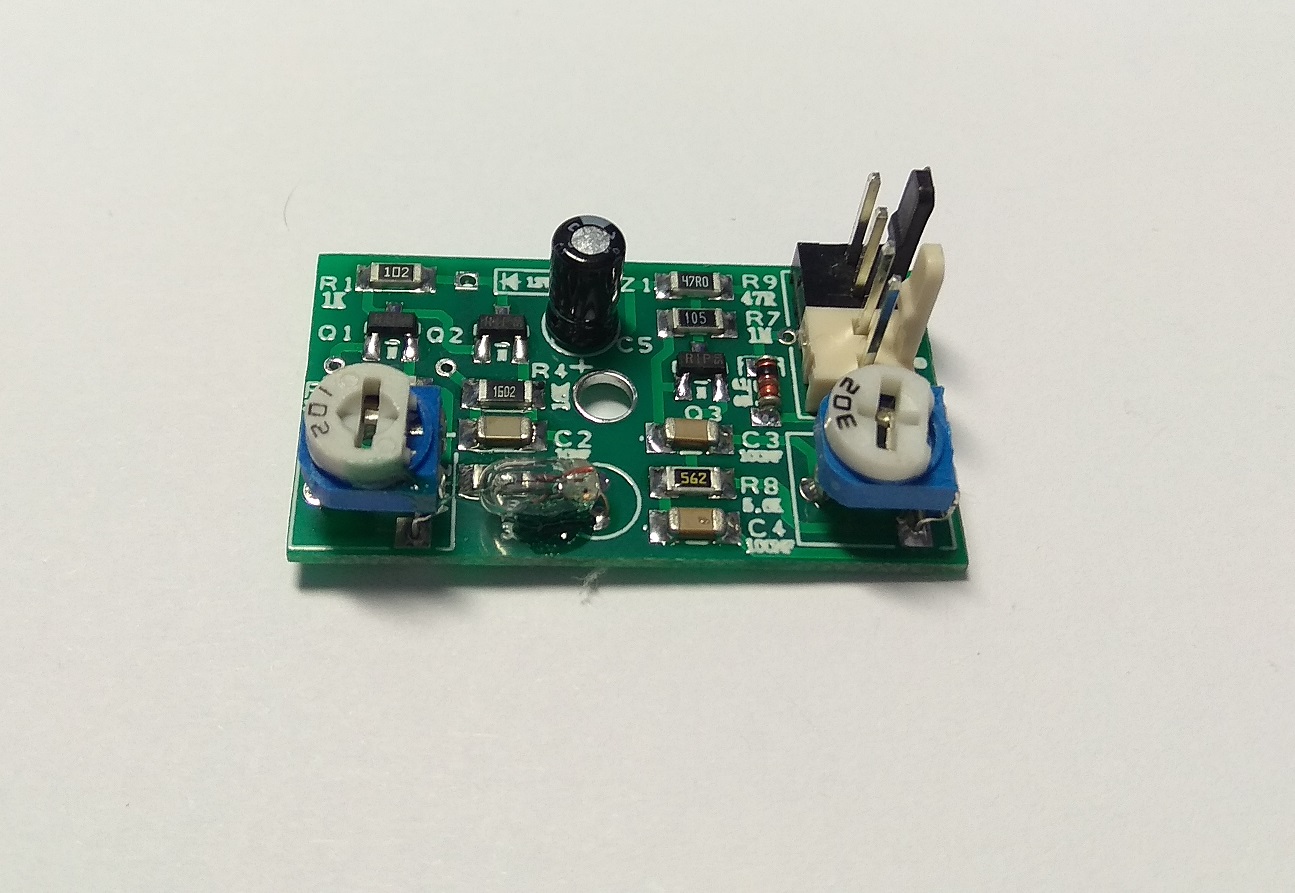

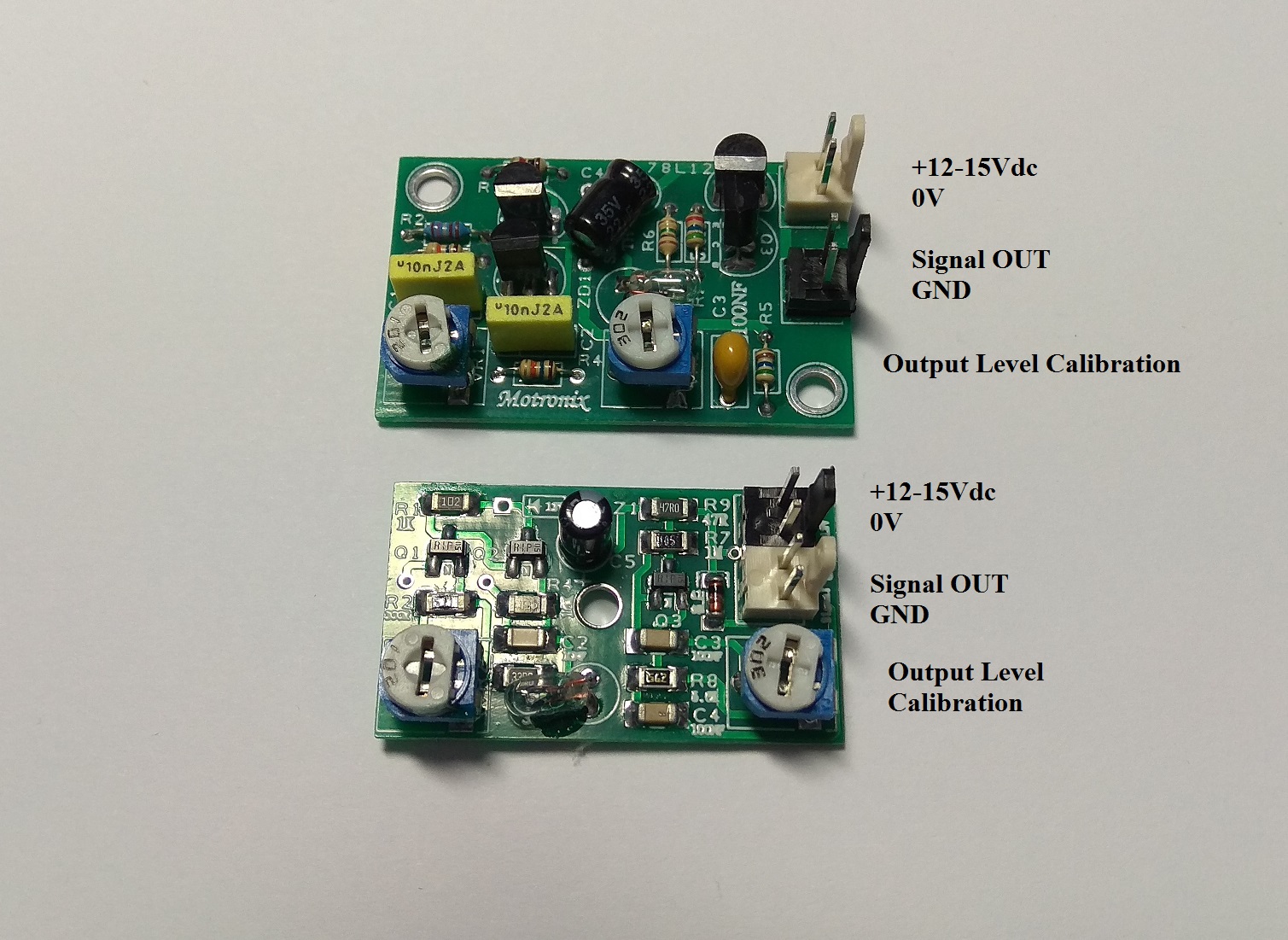

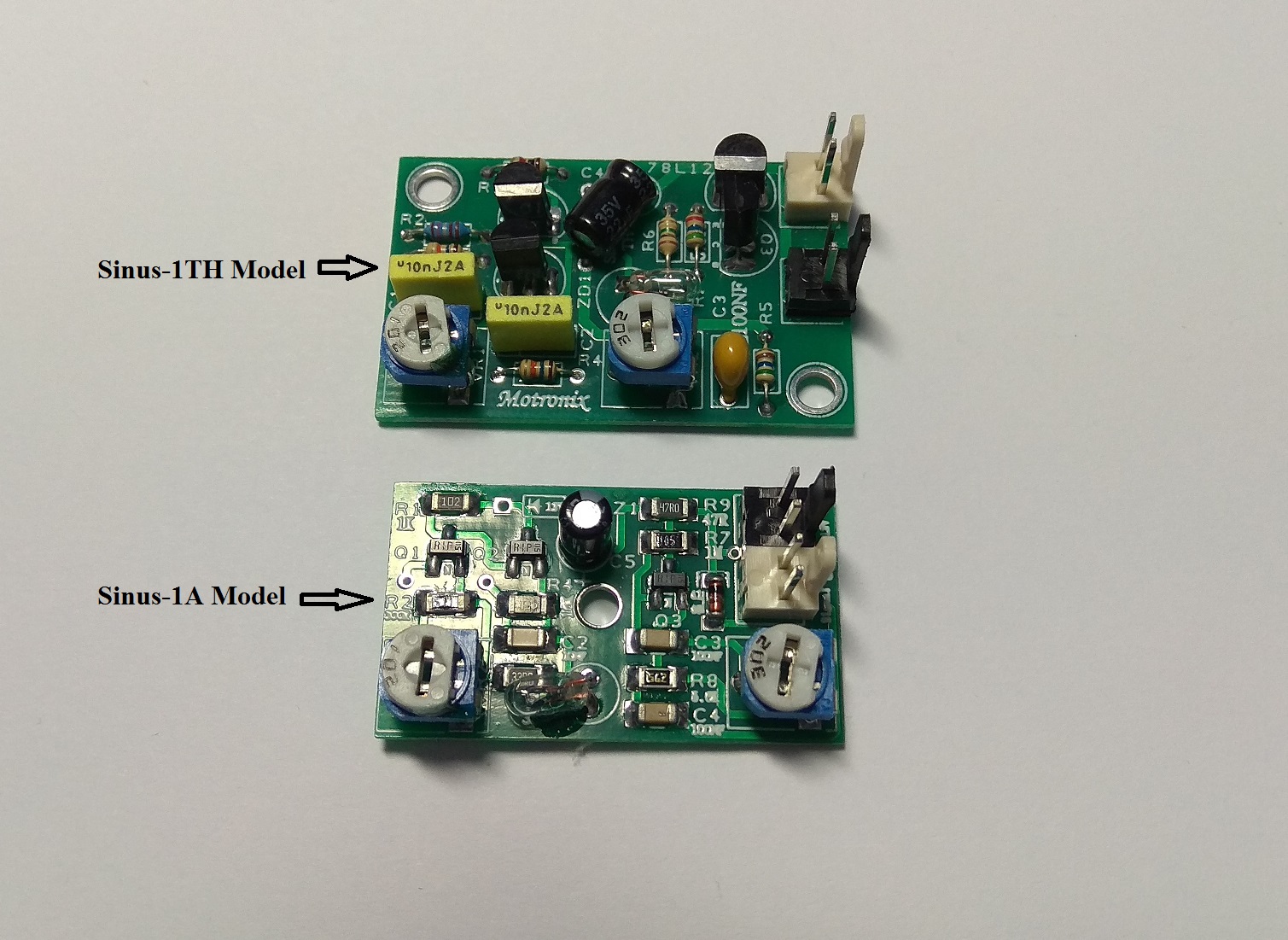

Sinus-1A SMD model with level out set

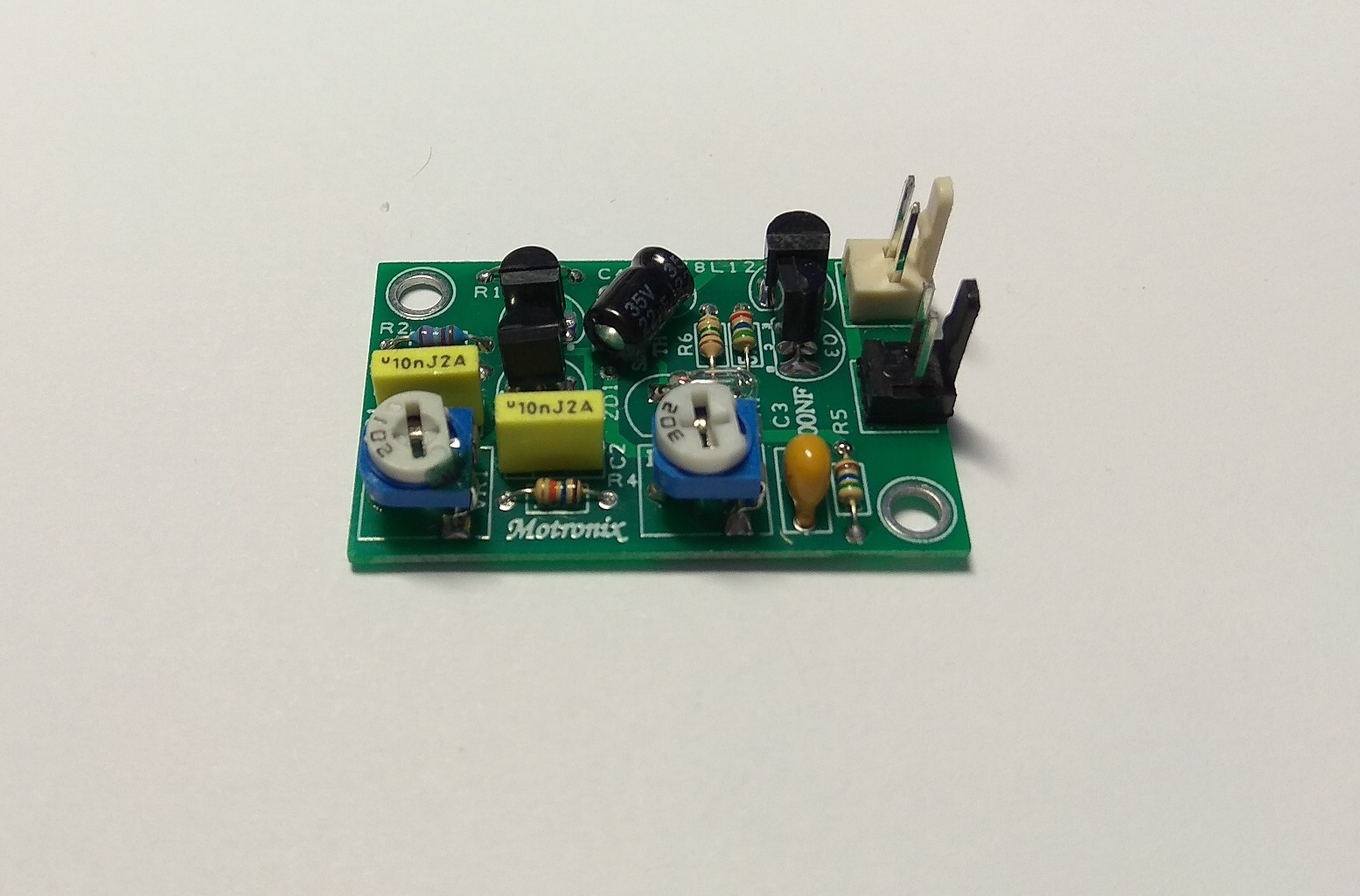

Sinus-1TH Thru Hole model with level out set
Ultra Small PCB
Tone-1N: 38mm * 36mm
Sinus-1A: 37mm * 21mm
Sinus-1TH: 41mm * 26mm
Connector and Pins will be provided
Working Voltage:
Tone-1N model 9-12Vdc (Work with 9V Batt.)
Sinus-1A model 12-18Vdc
Sinus-1TH model 12-18Vdc
Frequency: Approximately 1Khz (Fixed)
