Description

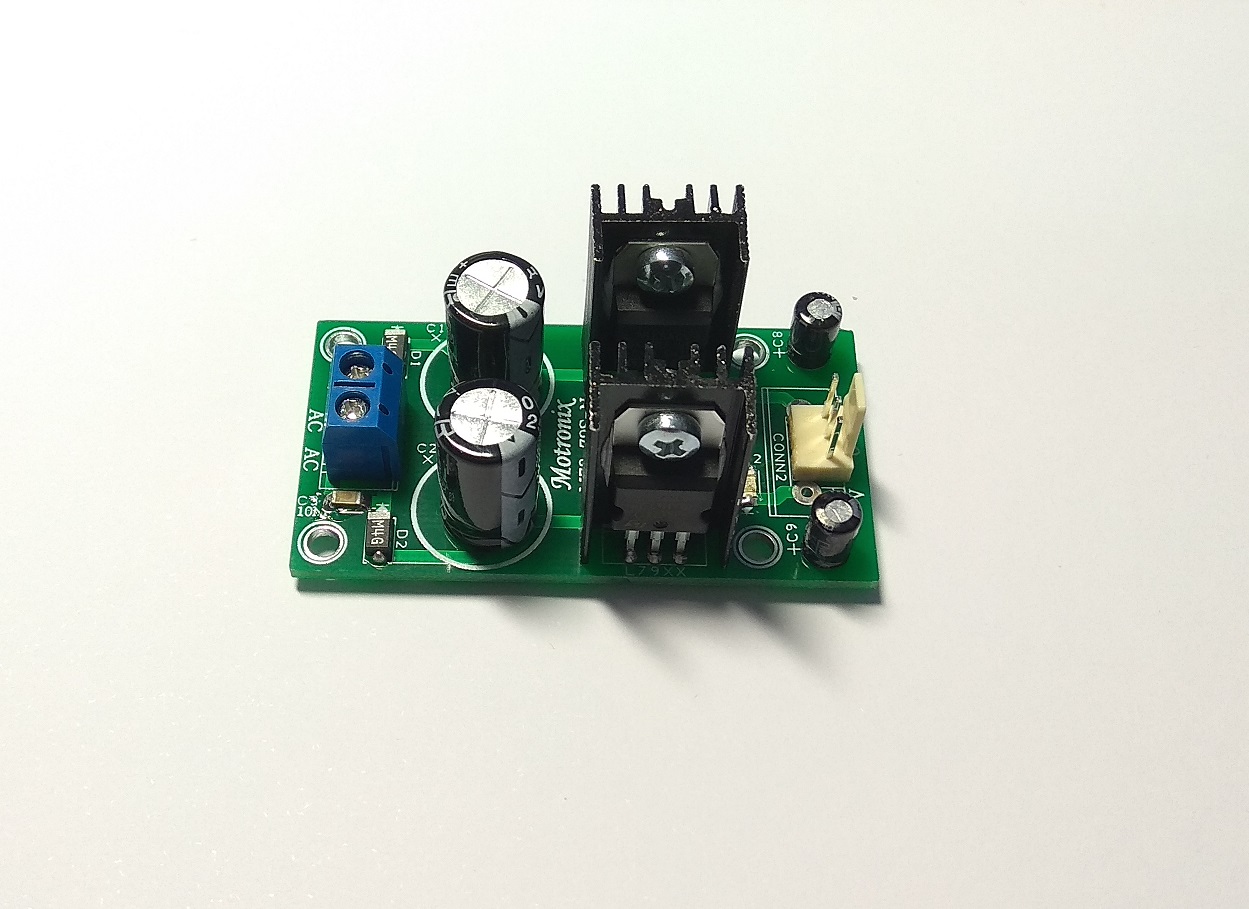

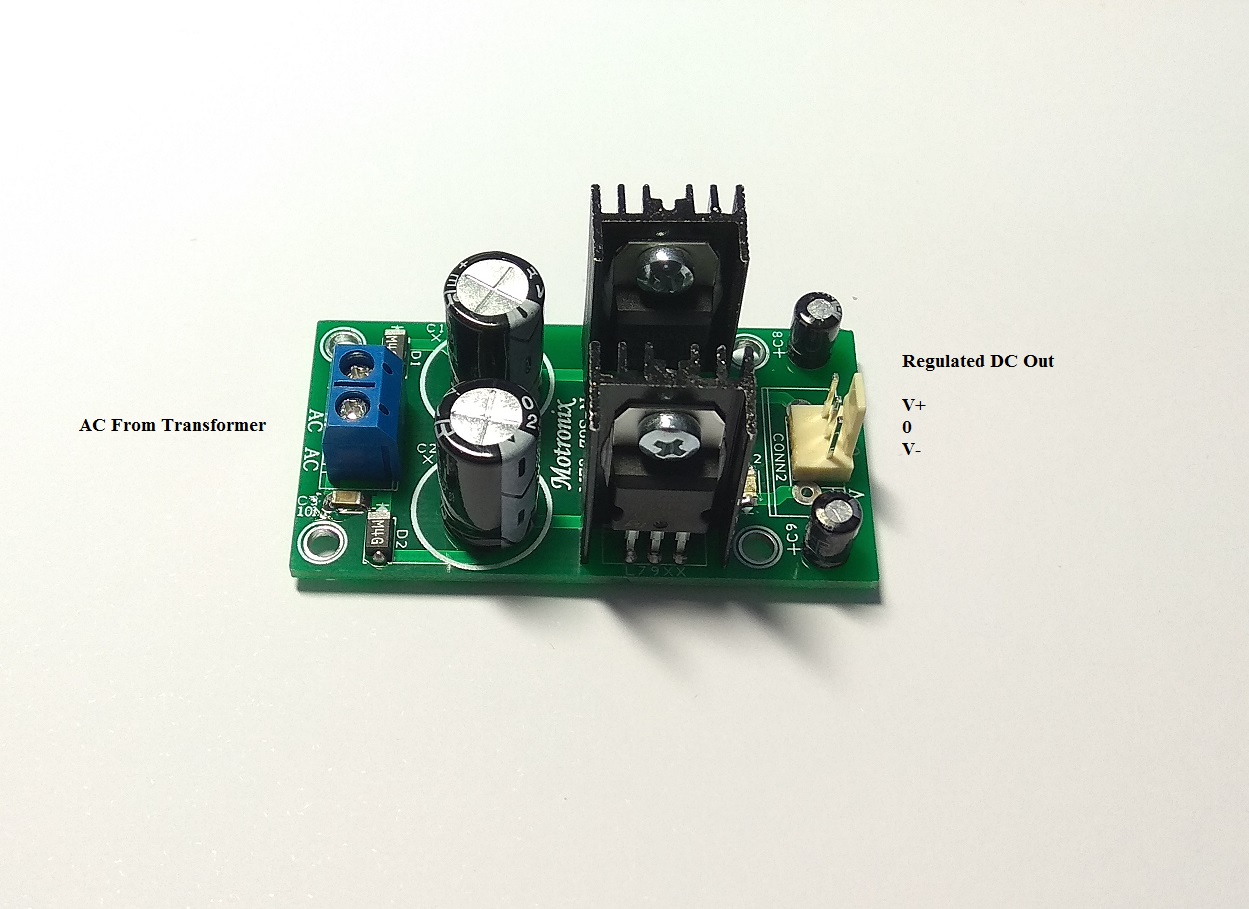

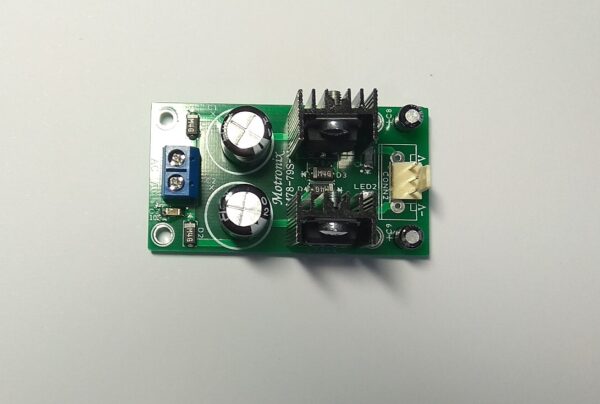

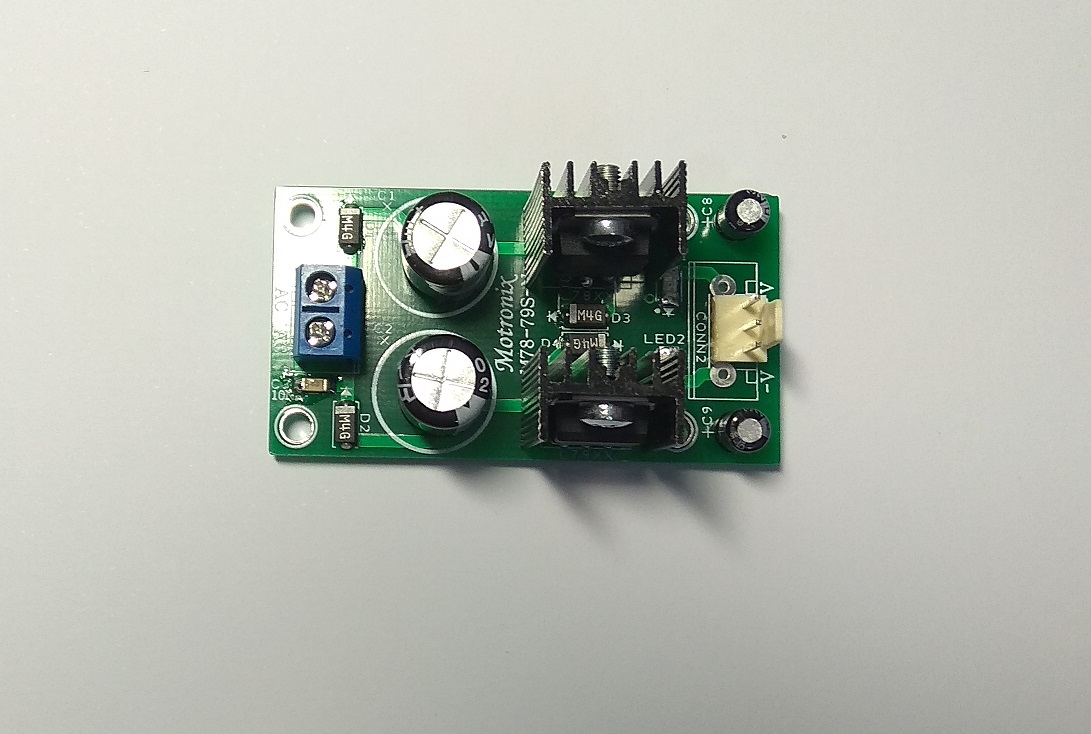

M78-79S
Perfect Solution For Audio DIY
If You Need Dual Voltage For OP-AMP and You Have Only Single Output Transformer This Is For You
Input Voltage:
12V Out Model: 9-12 Vac (AC Transformer Only)
15V Out Model: 12-15 Vac (AC Transformer Only)
18V Out Model: 15-17 Vac (AC Transformer Only)
Output Voltage:
Dual 12Vdc (+/-12V)
Dual 15Vdc (+/-15V)
Dual 18Vdc (+/-18V)
Especially For Audio Applications
Output Current: Up to +1A & -1A

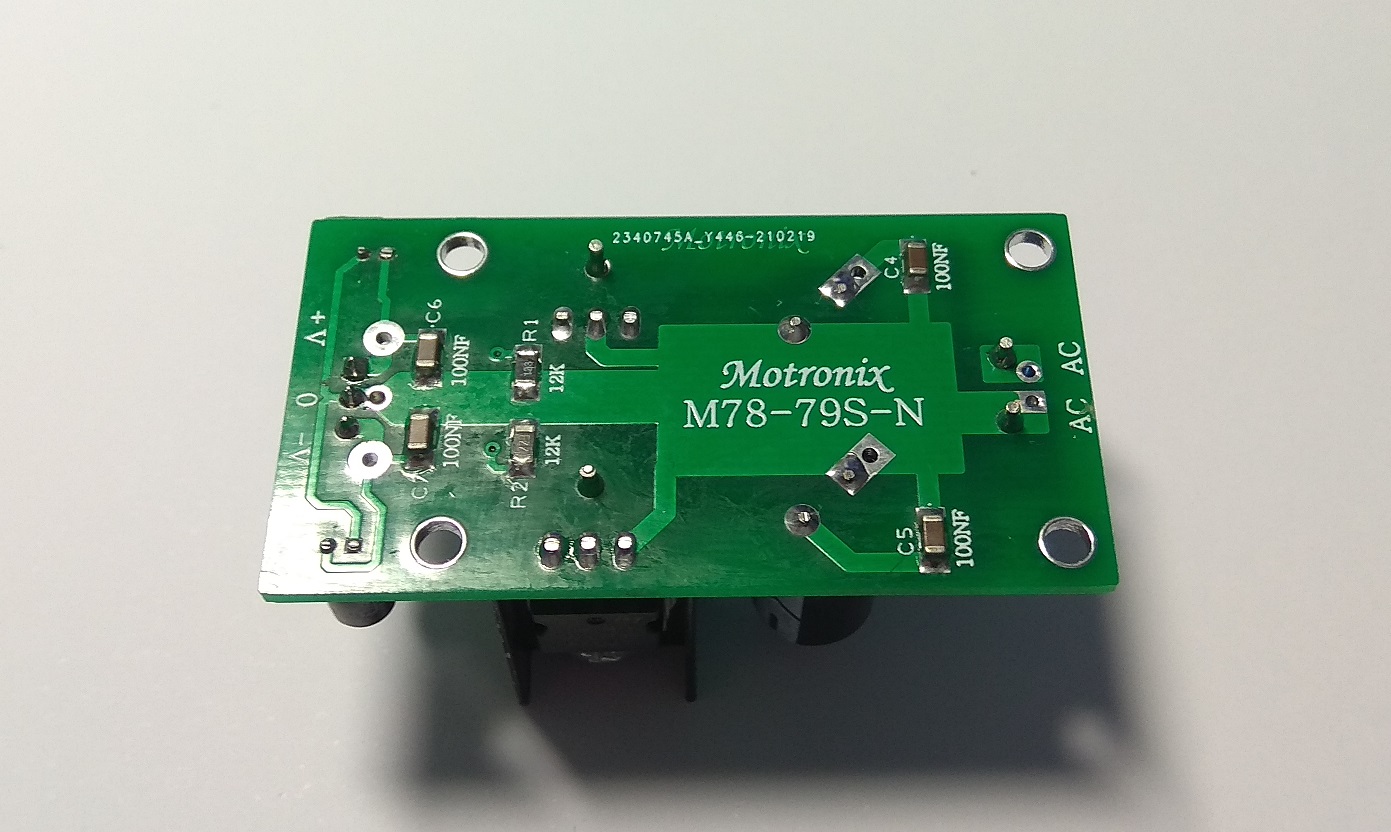

Double sided High quality Black FR.4 PCB
2 LED Power On
PCB Size: L59mm X W32mm X H30mm
