Description
DCP-2L
High Quality Stereo Speaker DC Protection & Turn On Delay
Very Small Size Assembled Board
Perfect for Small Size Audio Design
Perfect Solution for Small Power Amplifier Chassis / Aluminum Case
Turn on delay to prevent turn on click and noise
Quick turn off
On Board Turn On / OK Led
6.3mm Terminal for AMP/SPK connectors

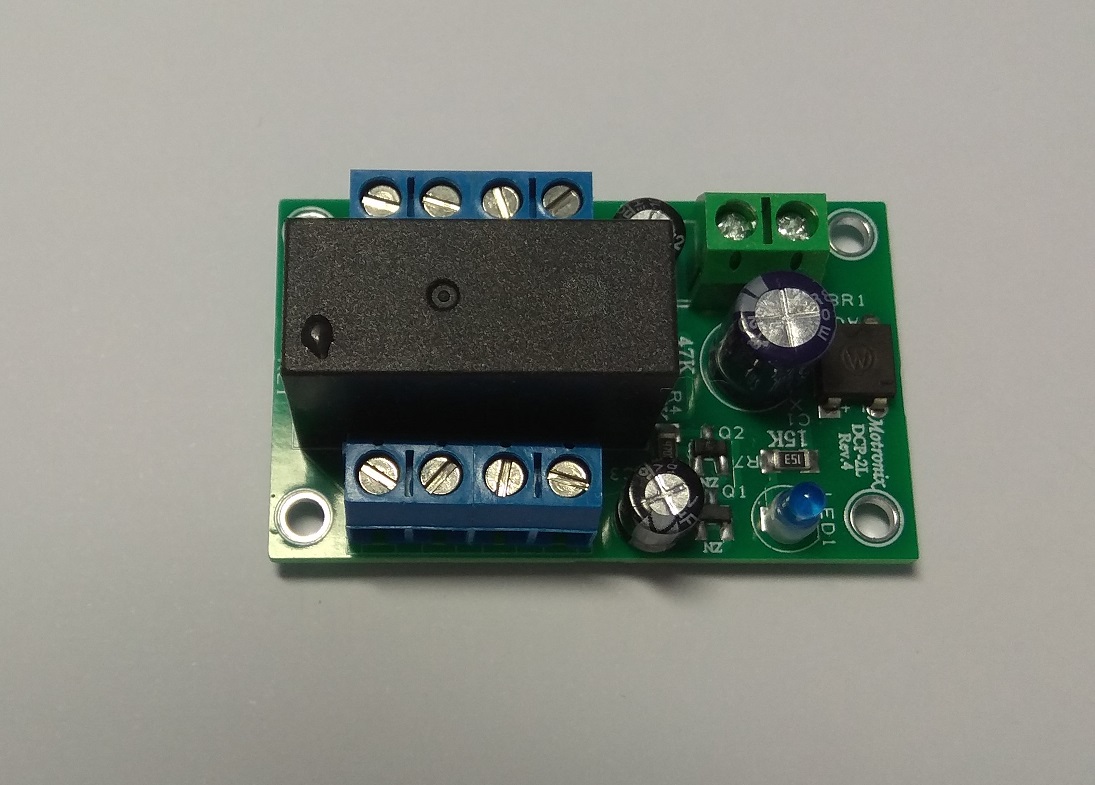

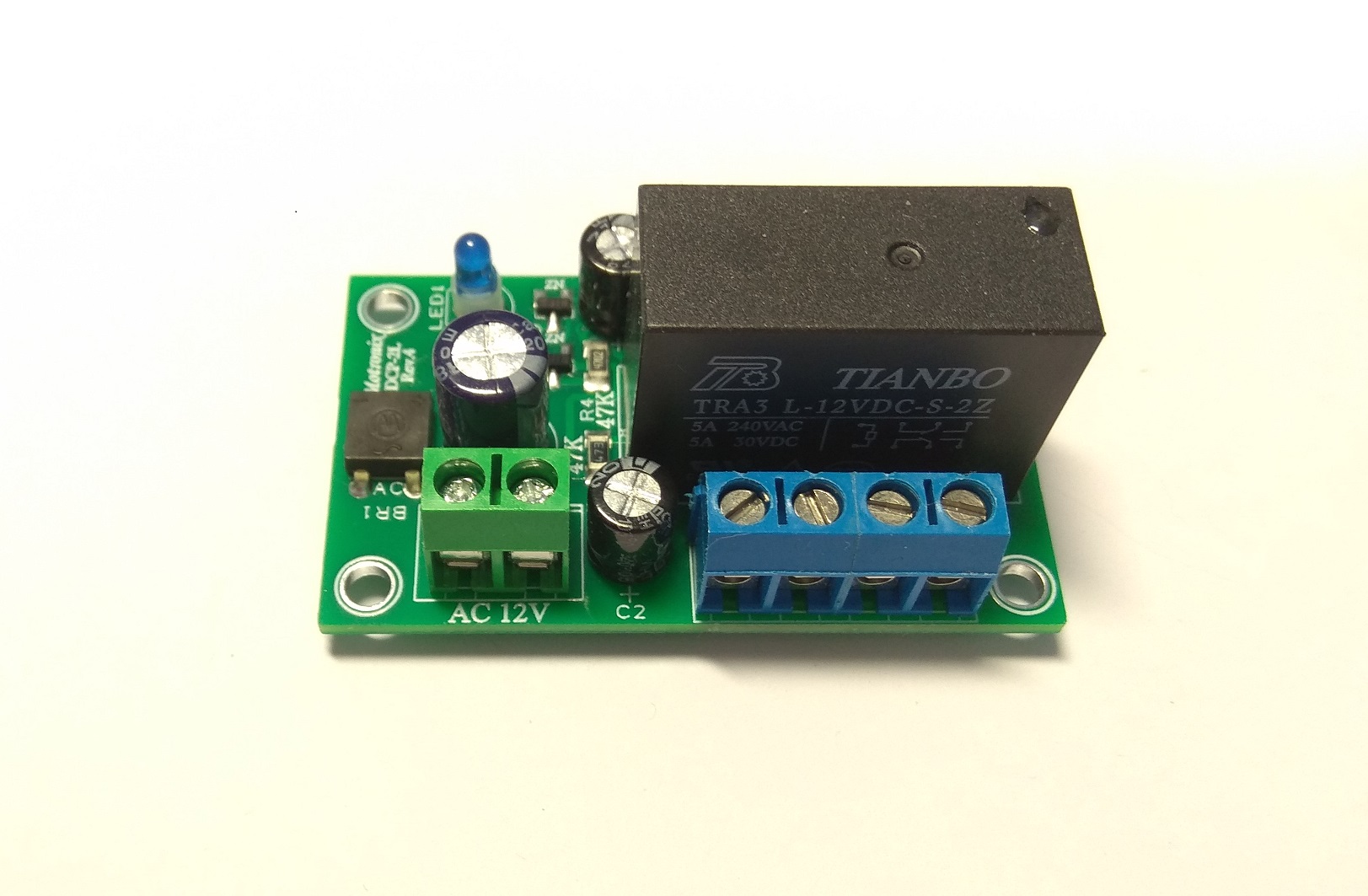

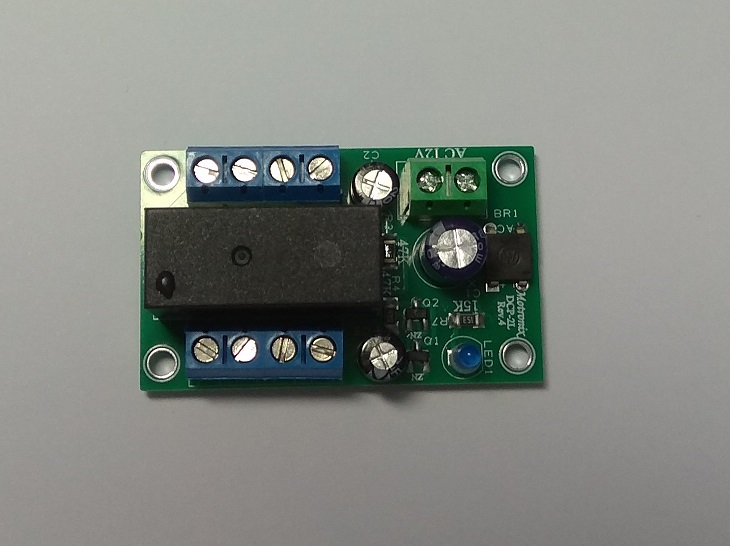

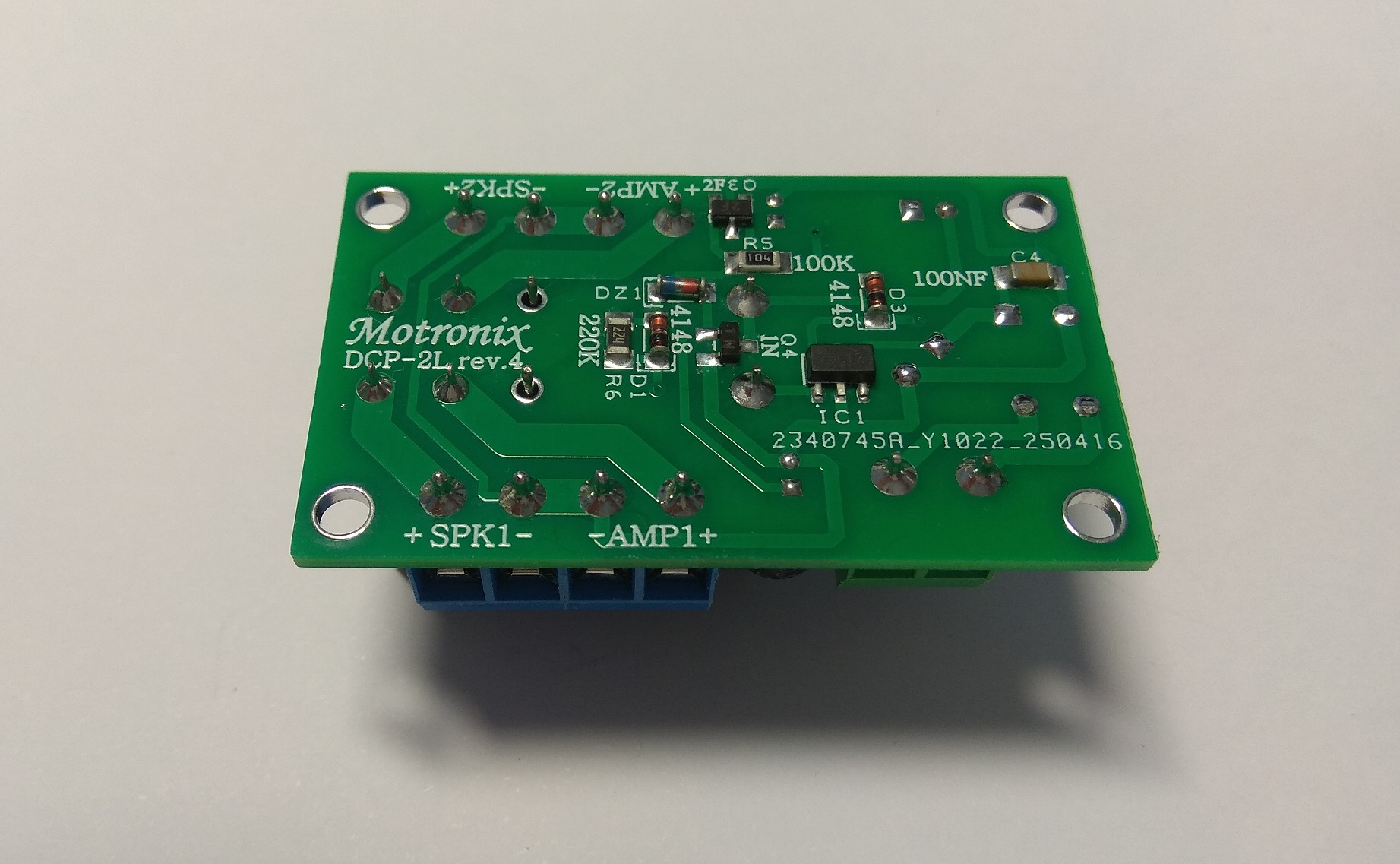

Rev.4 with Terminal Block
This item is only PCB with components Assembled
Working Voltage : 9-12Vac
Time Delay: 5-7 Sec.
Current consumption: 50ma
MAX. Each CH. current rate: 5A/240VAC

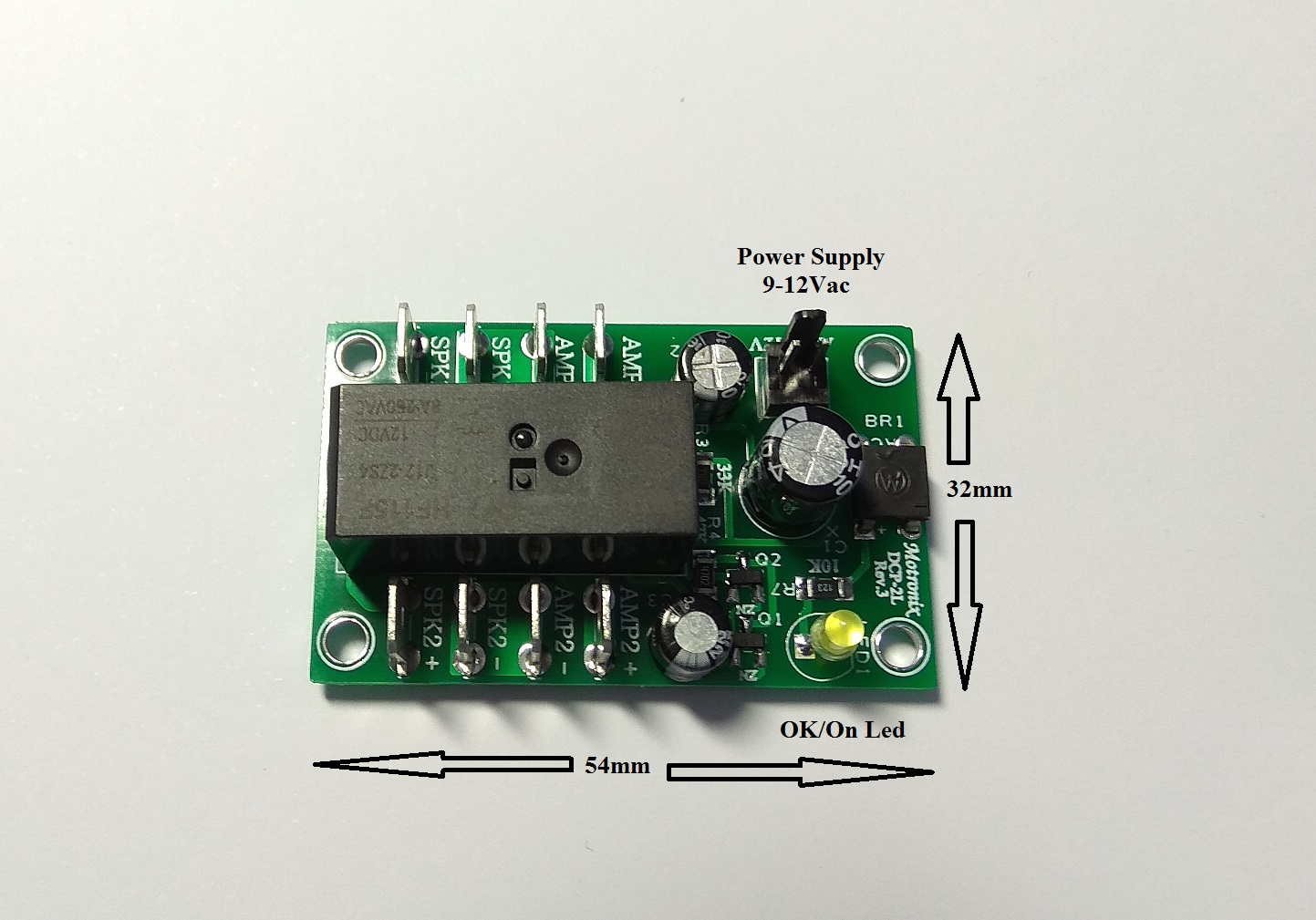

PCB Size: 54mm*32mm double-sided HAL,FR4 1.6MM
