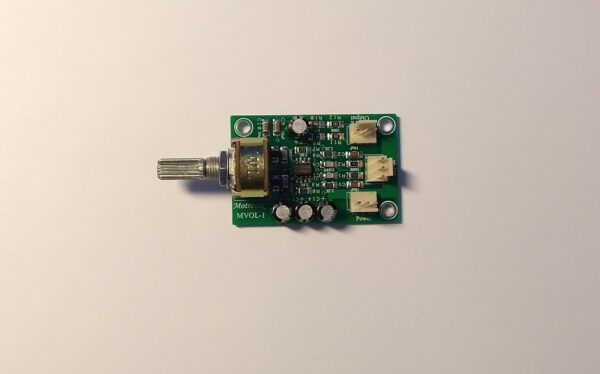

Stereo HIFI Pre Amplifier Volume Control For DIY Amplifiers Model MVOL-1

$8.00$10.00

Description

MVOL-1

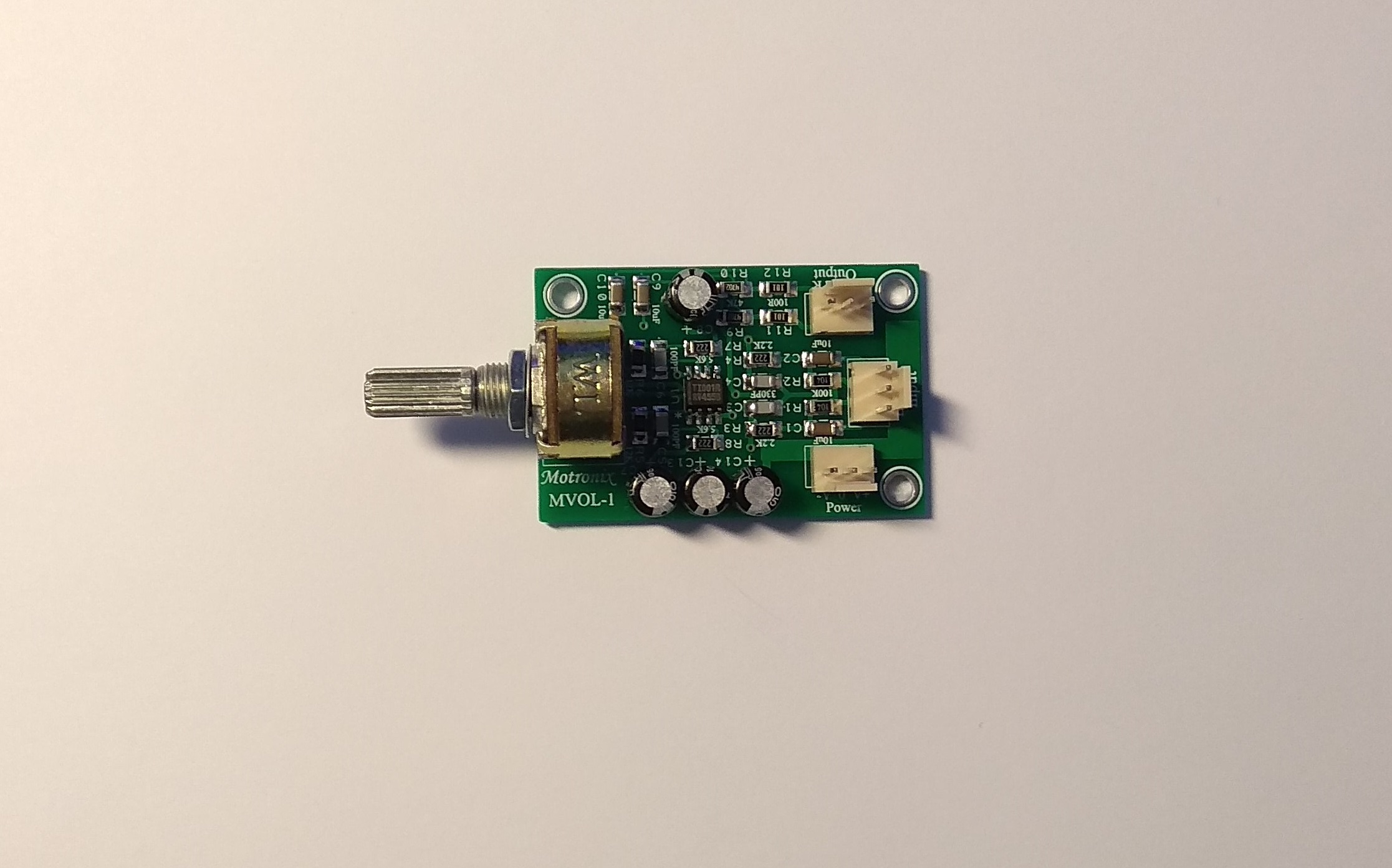

Assembled Board Stereo HIFI Pre Amplifier Volume Control

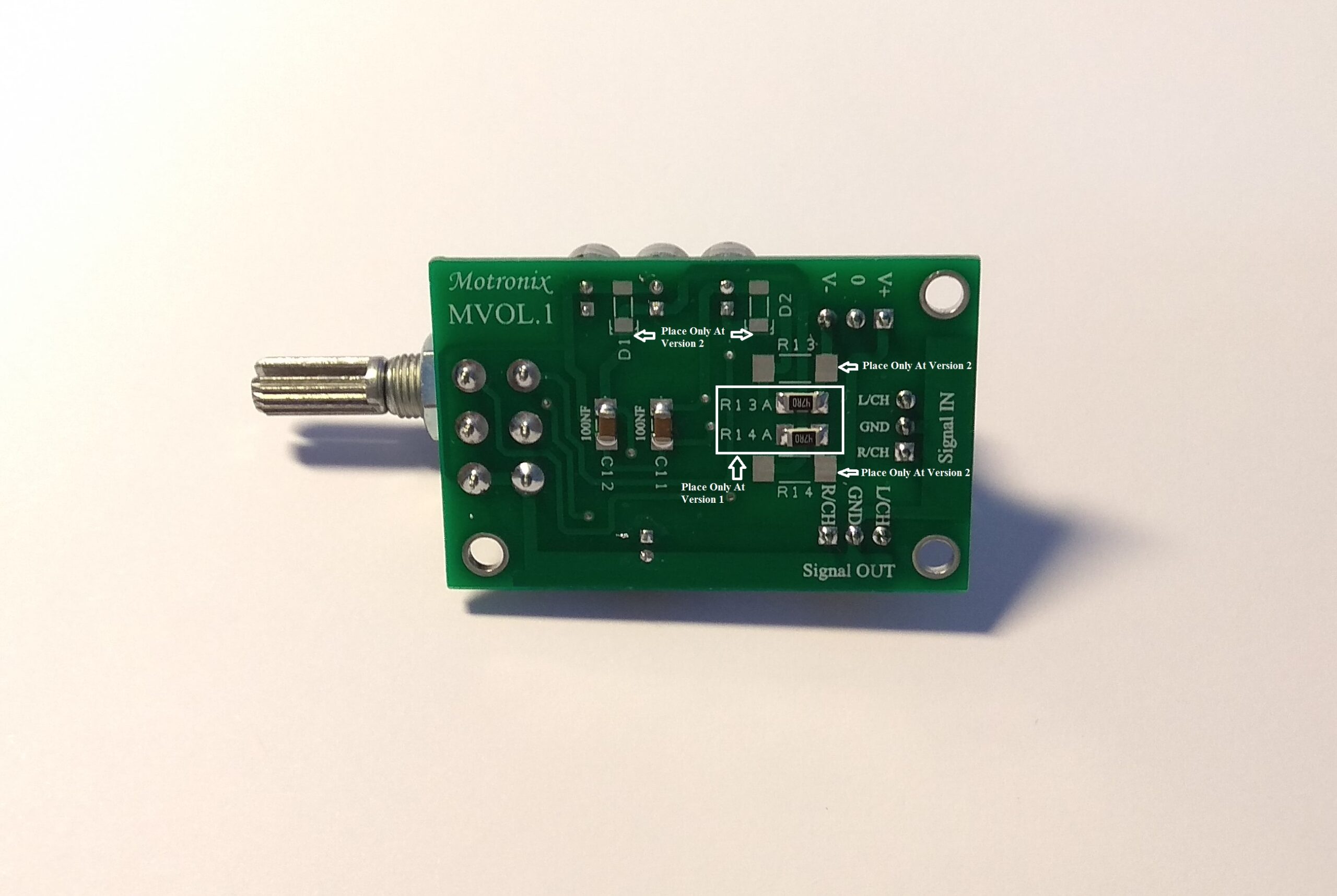

  2 Versions to choose make it easy to build your own Amplifier
Version 1 = Working At Dual Low Voltage Power Supply 2X15Vdc
  Version 2 = Working At Dual High Voltage Power Supply 2X30-50Vdc
Version 2 Connect directly to the Power Amp Supply
Very Clean and Good Sound Quality
Best Solution for your DIY Power Amplifier Pre Amplification  !!!
Low Noise Op Amp !
We Use ONLY Original Genuine Parts
This item is only PCB with components Assembled
PCB Connectors will supply
Input sensitivity: 1.6Vrms max. (for 9.6Vrms Out)
Input Impedance: 100Kohm
Output Impedance: 100ohm
Max output voltage: 8V rms @ 10kohm load
Output Voltage @ 0db (775mv) Input = 4.8Vrms

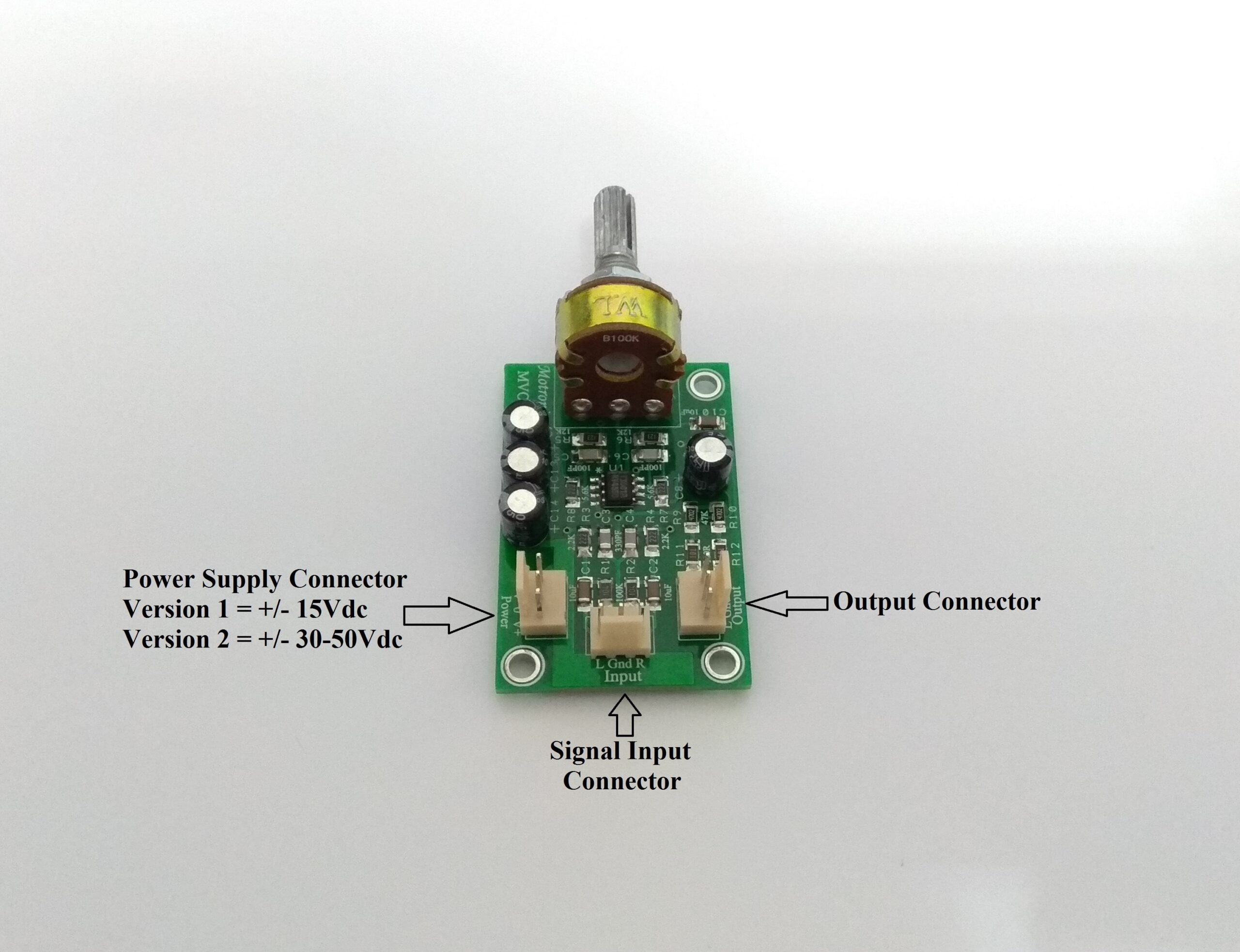

Working Voltage:
Version 1 : Dual 12-15 Vdc (+/- 12V-15Vdc)
Version 2 : Dual 30-50 Vdc (+/- 30V-50Vdc)

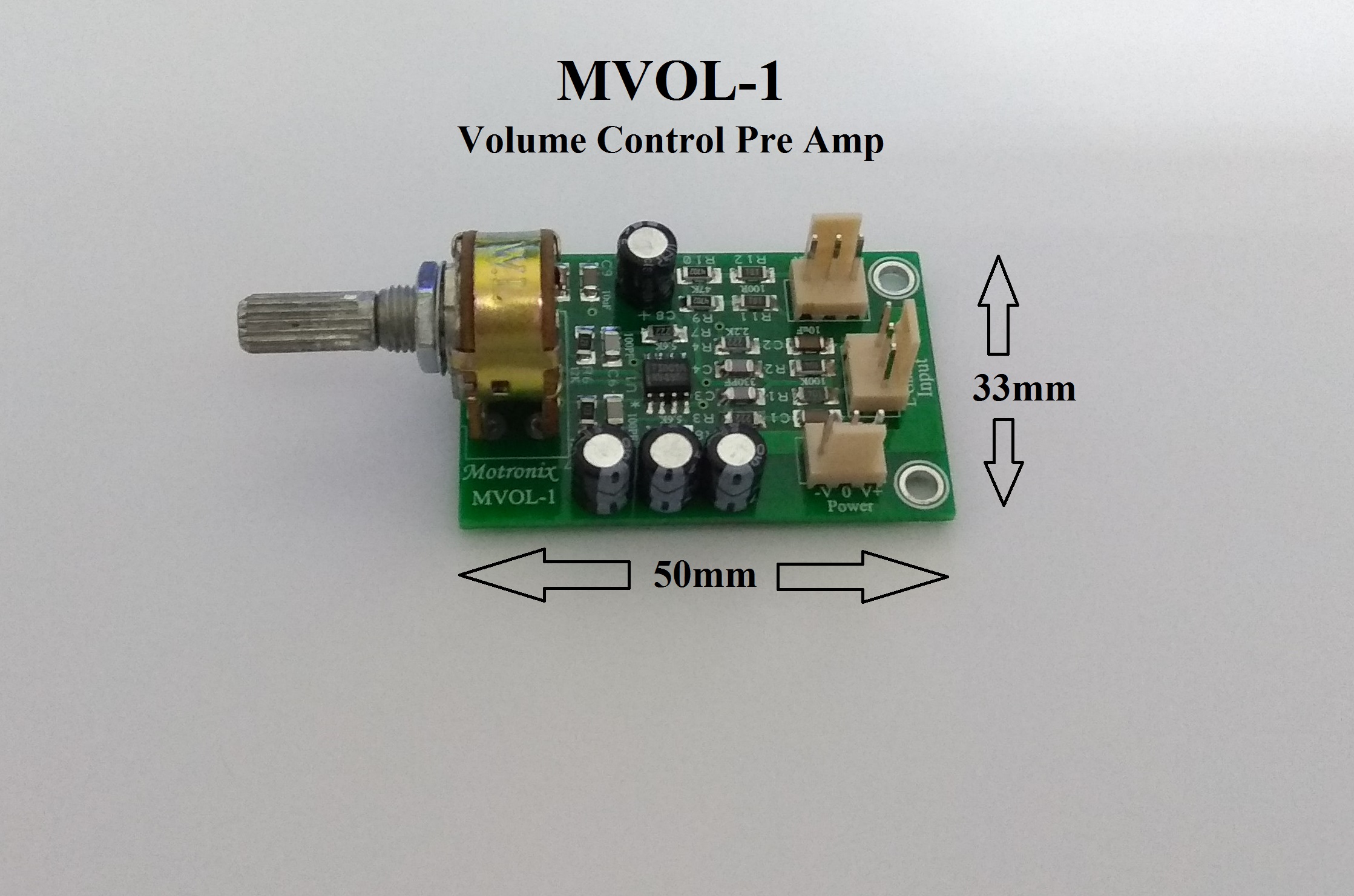

PCB Size: 50mm*33mm double-sided HAL,FR4 1.6MM
Applications: DIY Home / Integrated Amplifier / Pre-Amplifier

Additional information

Working Voltage

MVOL-1 2X15Vdc, MVOL-1 2X30-50Vdc
