Stereo to Bridge Converter Audio Adapter. Special New Low Noise Design

$8.00$15.00

Description

Phase Control-2
Phase Control-2RCA
Phase Control-3
High Quality Stereo Signal to BTL (Mono Bridge) Converter Board
Make any Stereo Power Amplifier,Integrated Amplifier,Receiver,PA Amplifier
To Be BTL Mono Amplifier
Shifted 1 CH Signal by 180° (Phase Control-3 Model with 1 CH Invert/non Invert Switch)

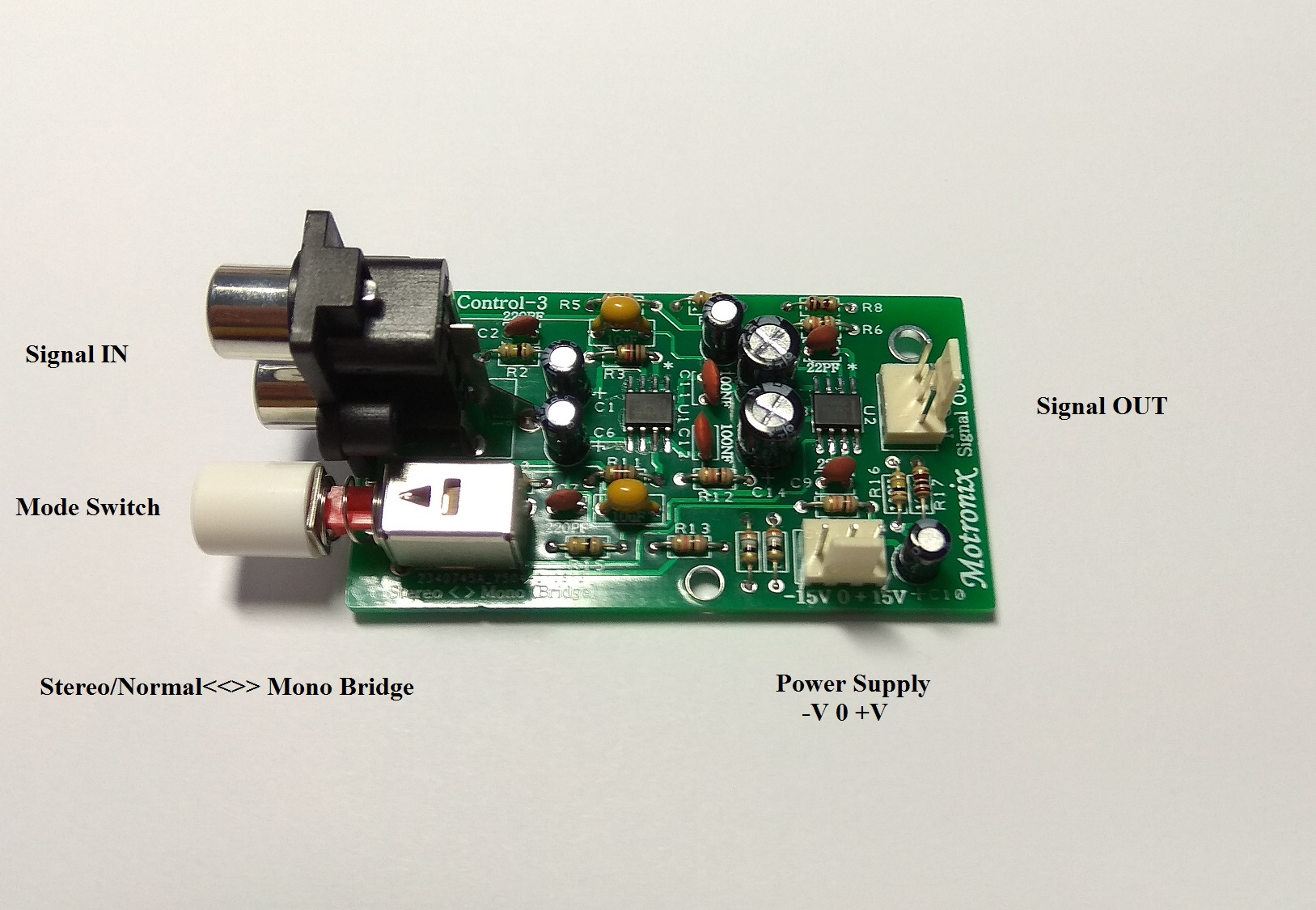

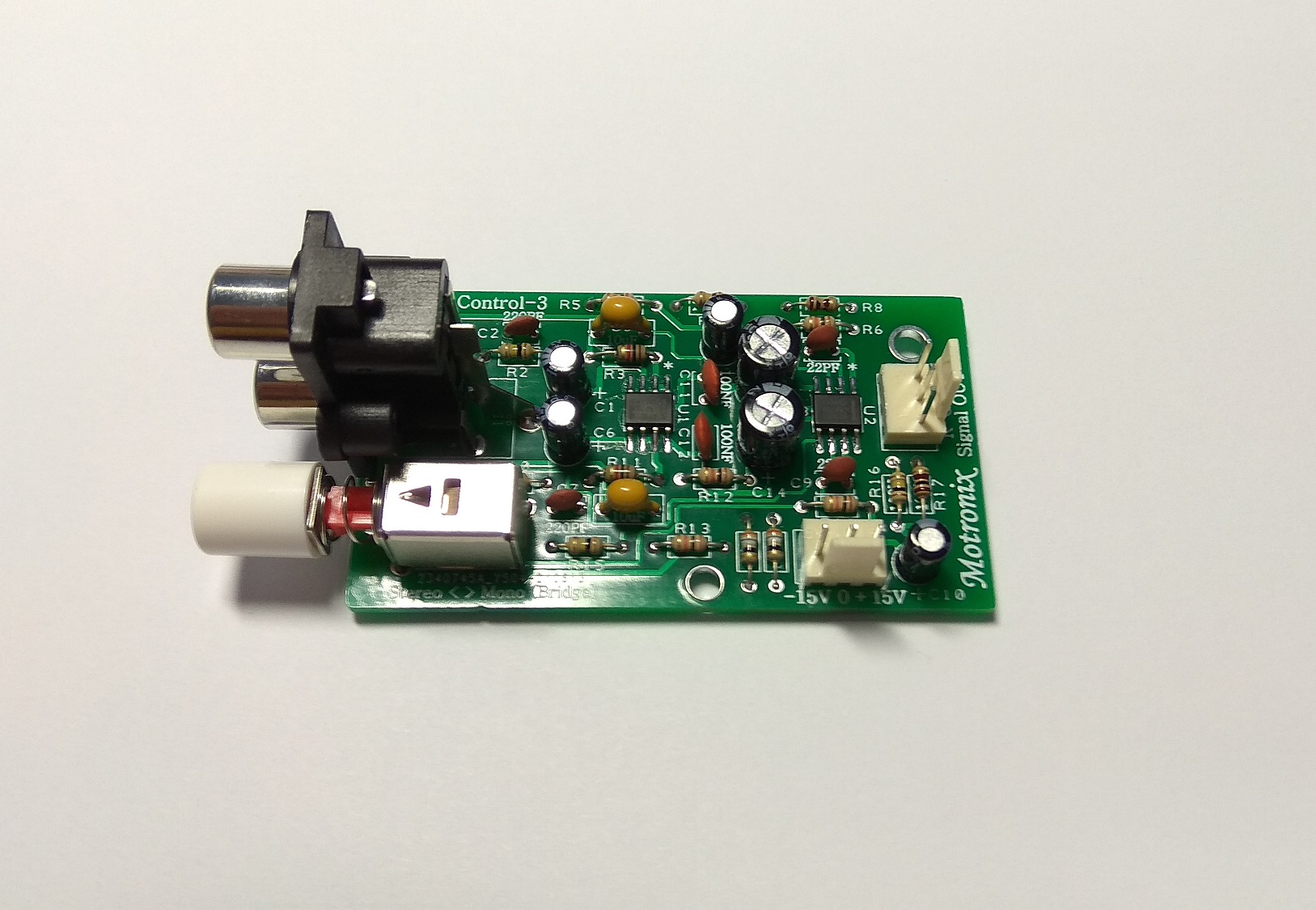

Phase Control-3 with Switch for Stereo or Mono Bridge
Assembled Board Ready to work!!!
Work with Dual Power Supply 9-18Vdc (+ 0 -)
 High quality and reliability PCB FR4 1.6MM
Low Noise OP-Amp
Very easy Installation/connecting
This item is only PCB with components Assembled
Input & Output Connectors Provided
Power Input : 2X9-18Vdc 4mA. (Recomended +15V 0 -15V)
Gain Level: (0DB)
Pre In/Out Voltage: 1:1
PCB Size:

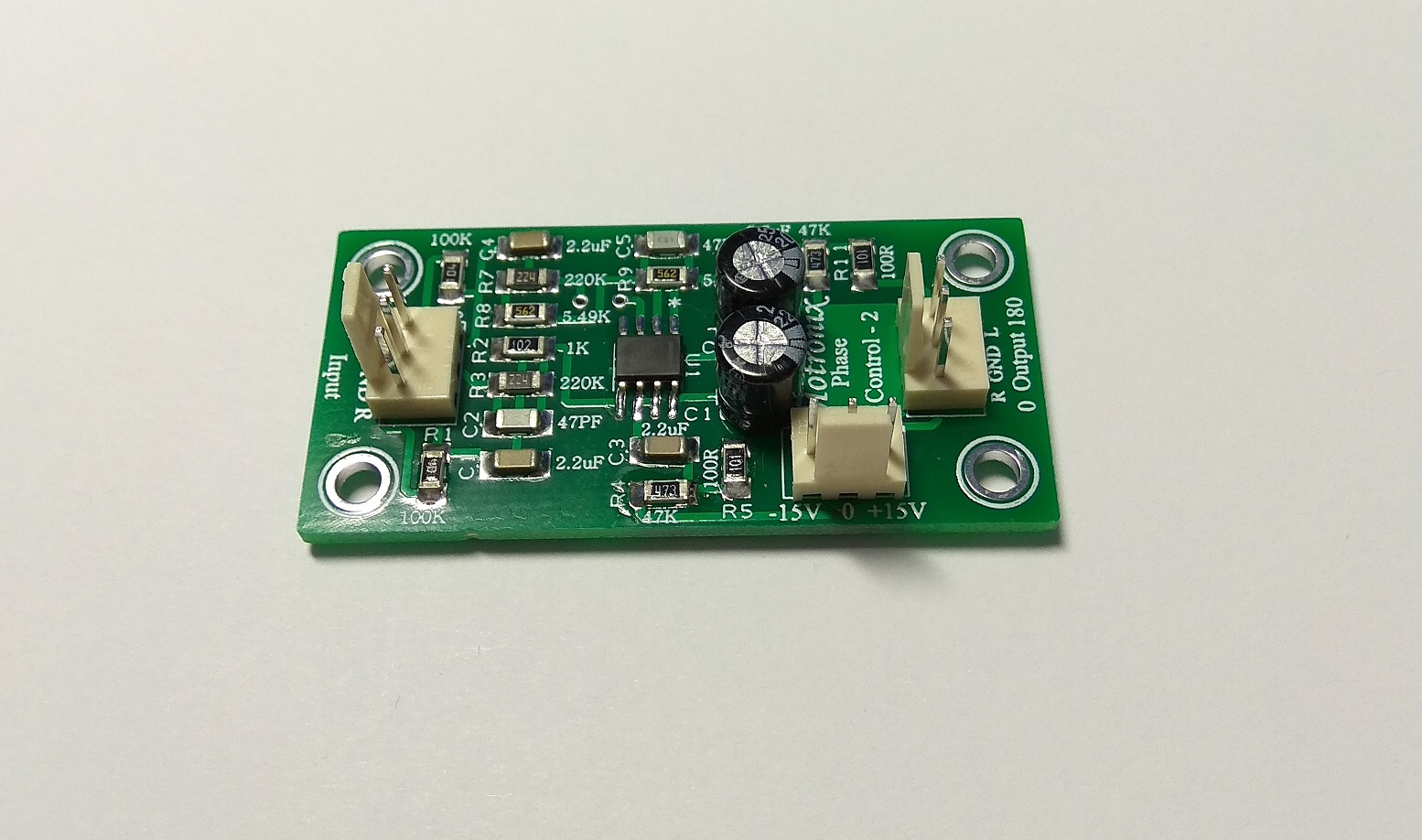

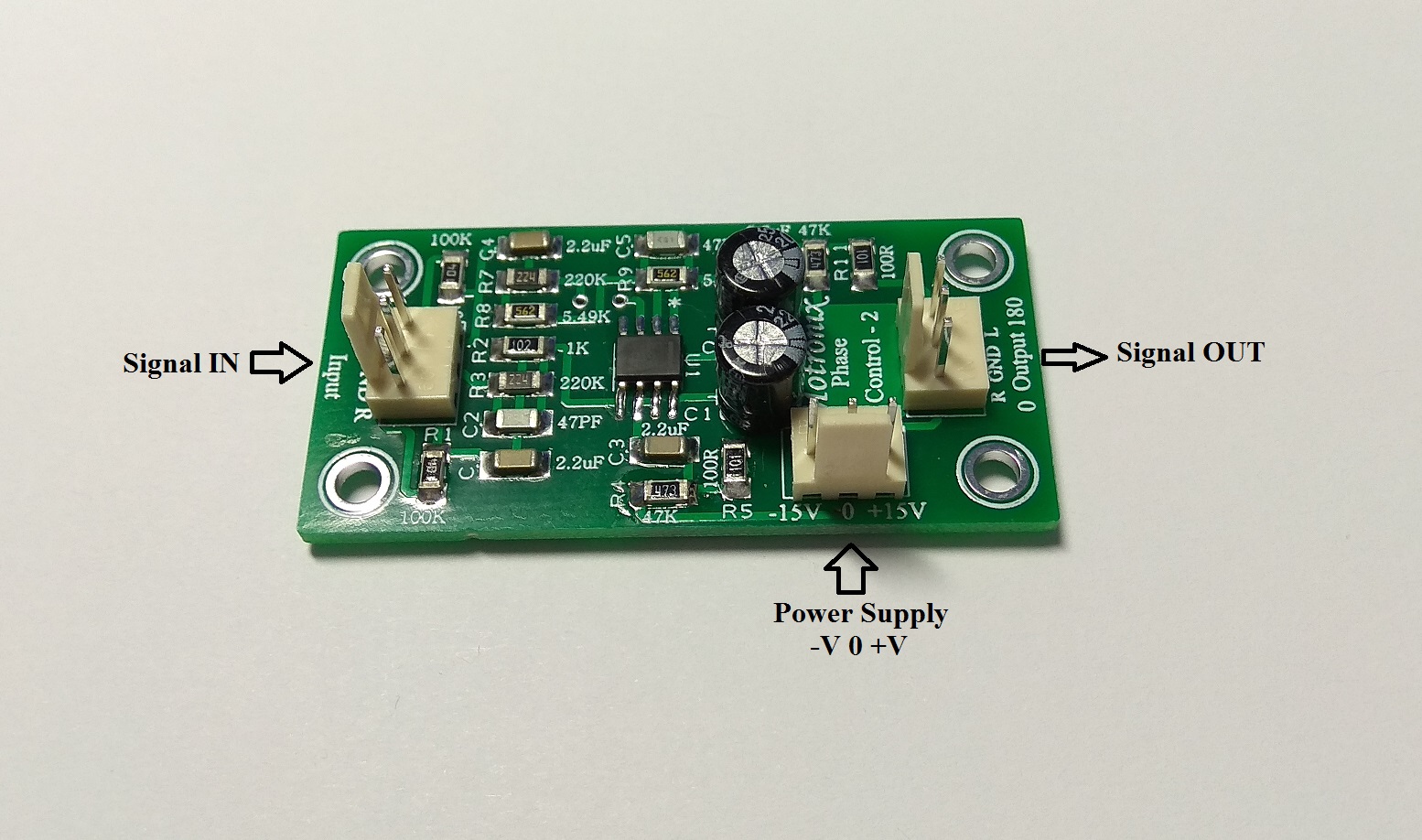

Phase Control-2 : 53mm*26mm double-sided HAL,FR4 1.6MM

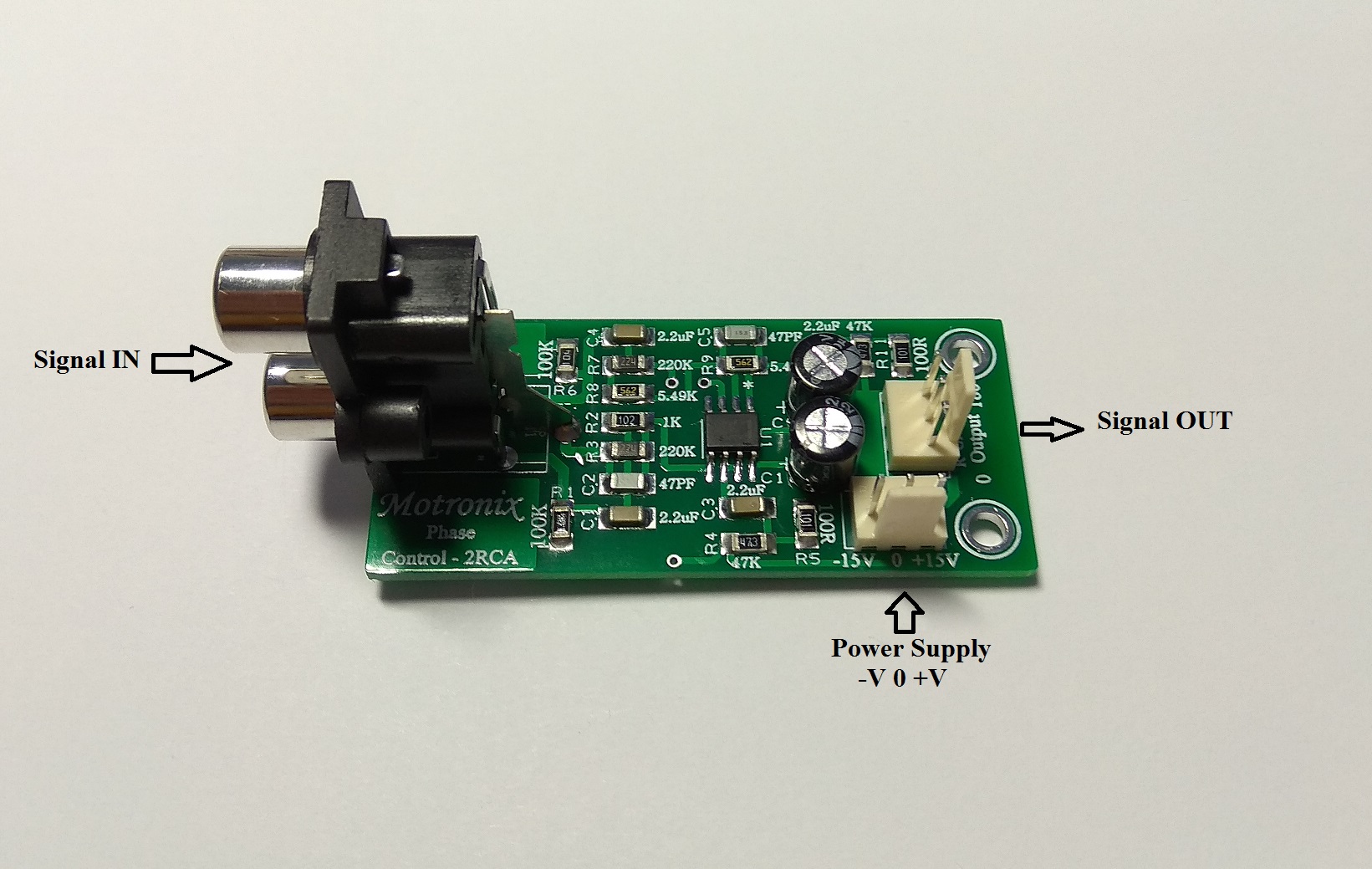

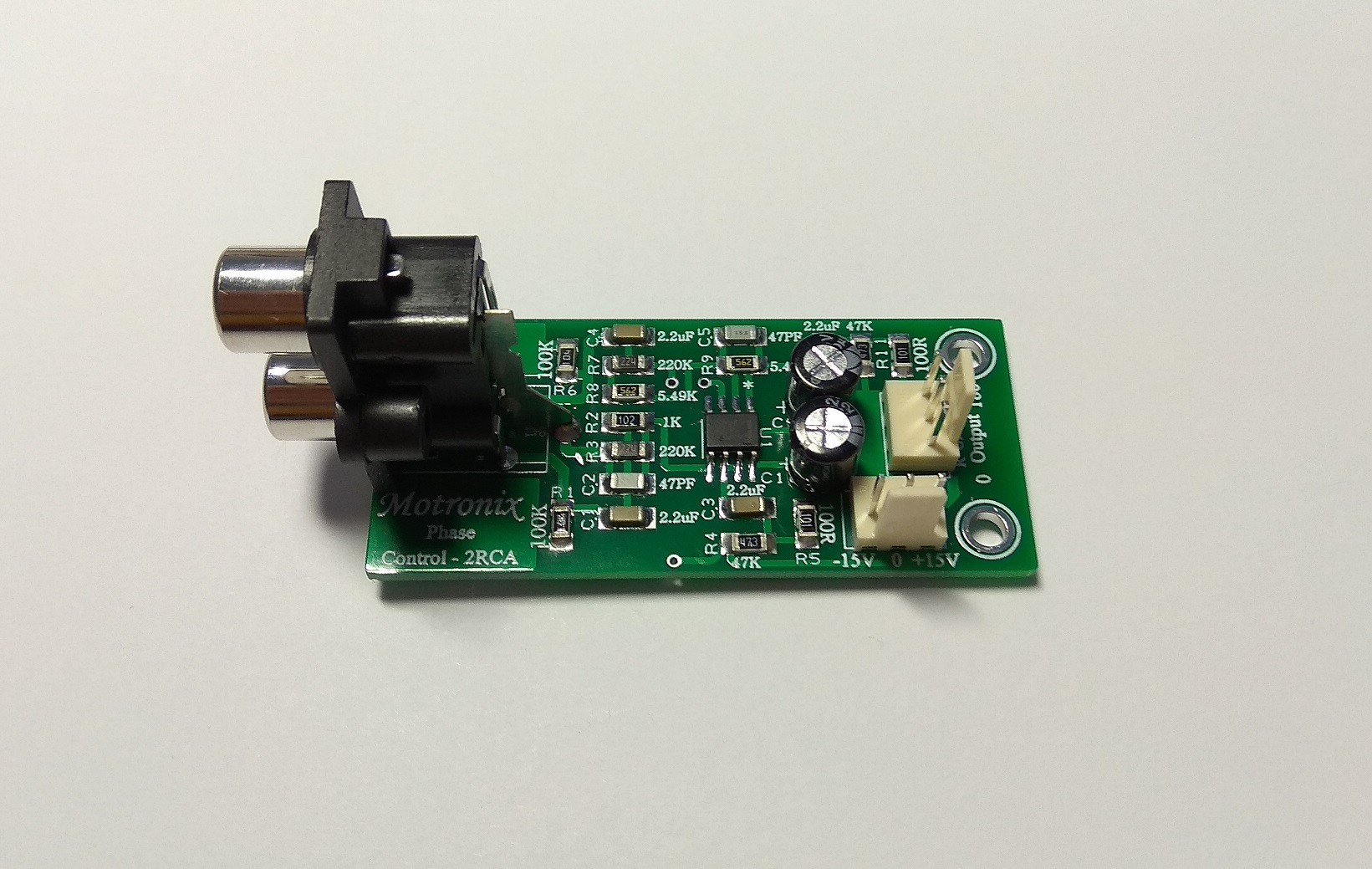

Phase Control-2RCA : 58mm*26mm double-sided HAL,FR4 1.6MM
Phase Control-3 : 62mm*35mm double-sided HAL,FR4 1.6MM

Additional information

Model

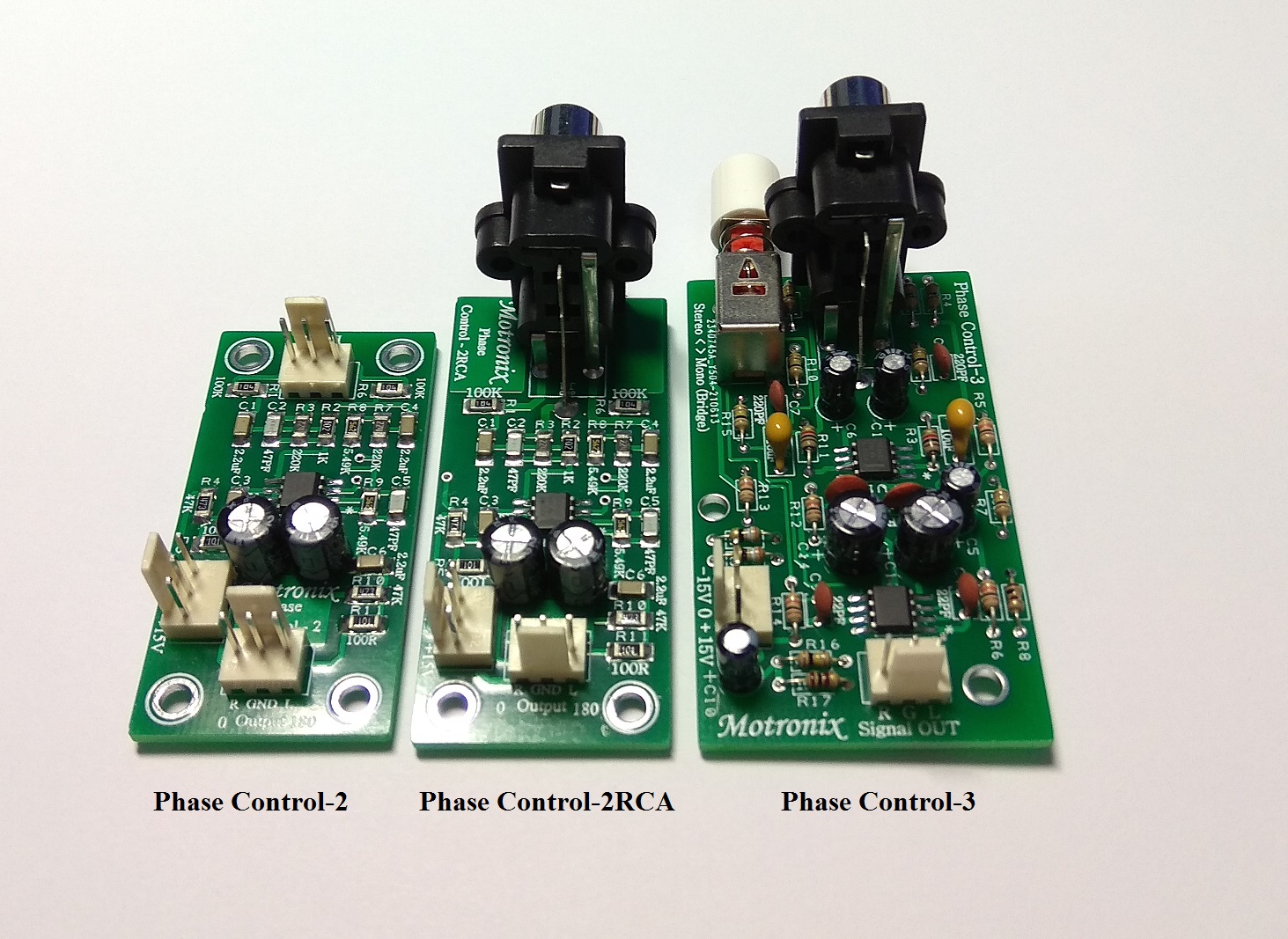

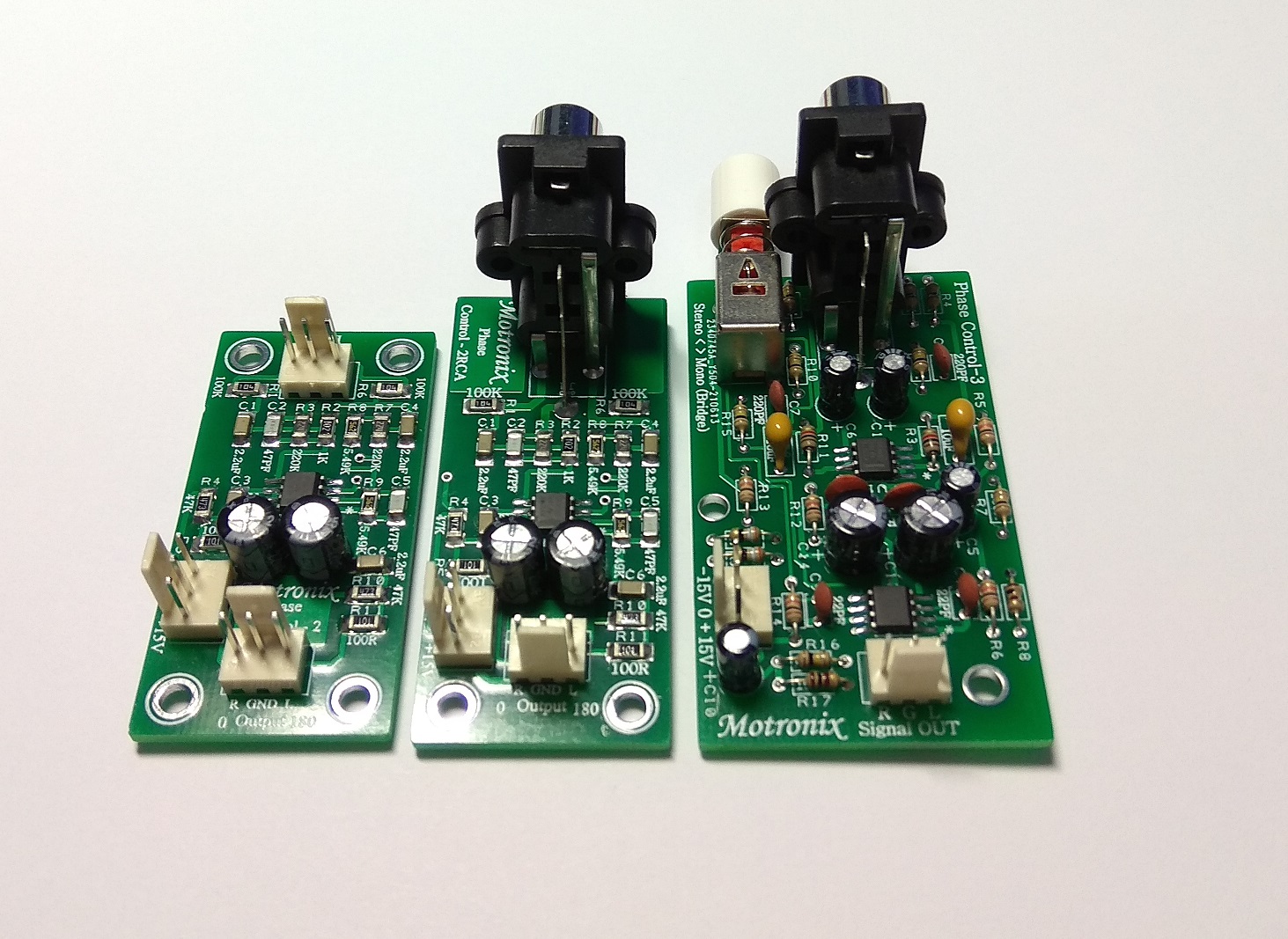

Phase Control-2, Phase Control-2RCA, Phase Control-3
