Description

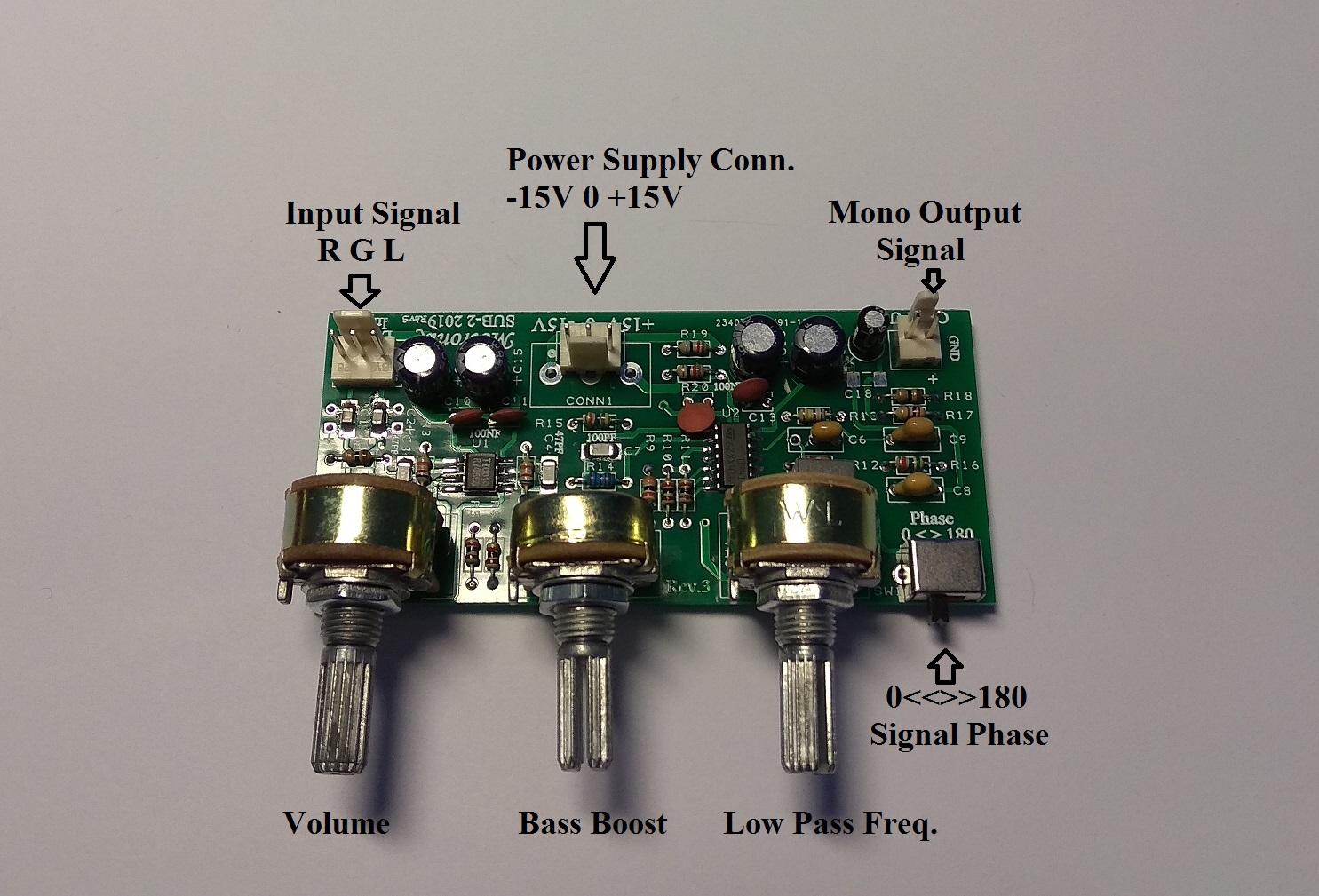

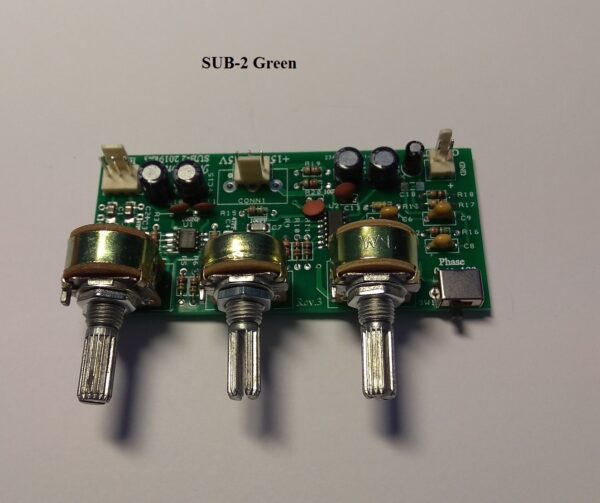

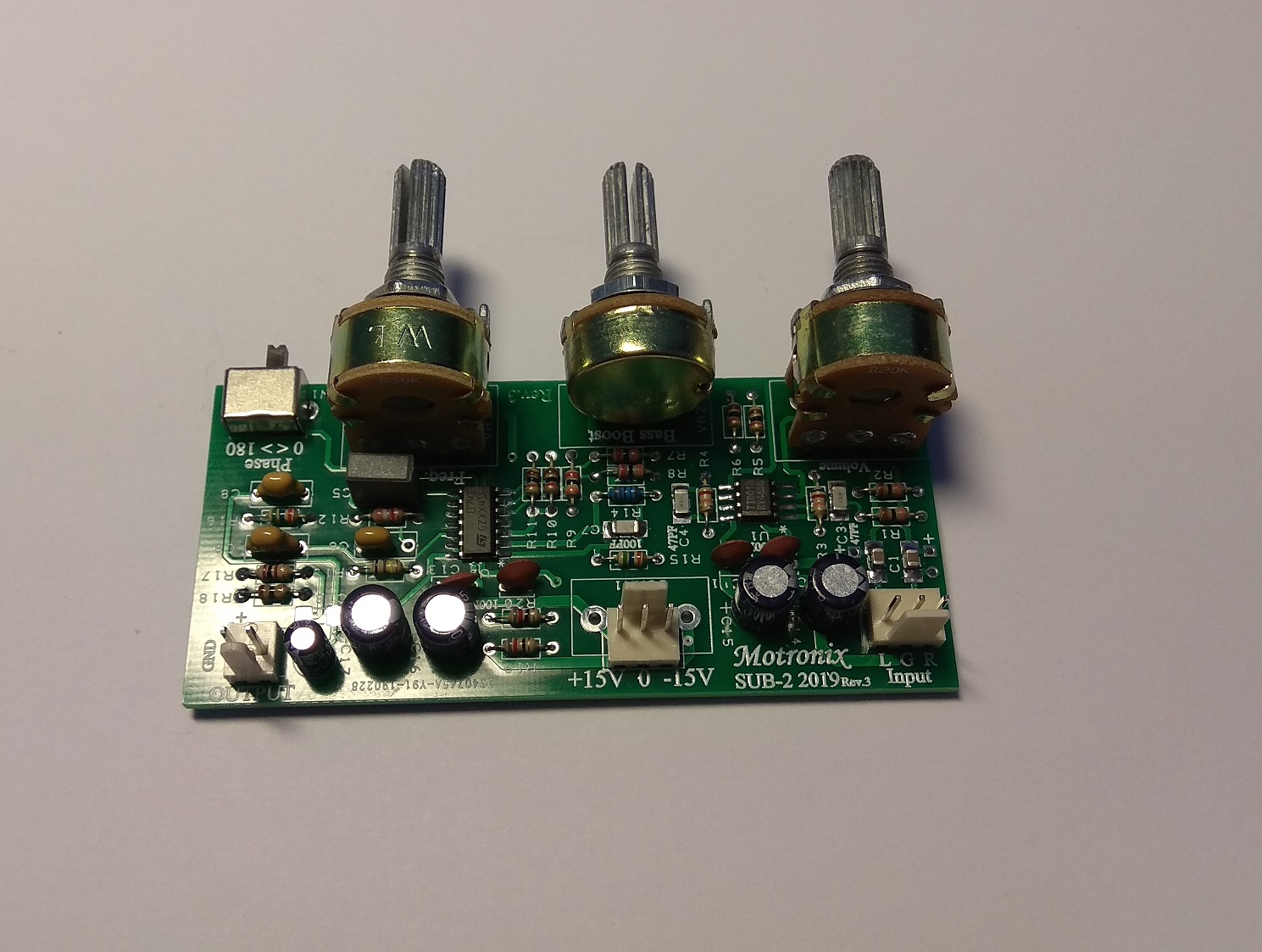

SUB-2

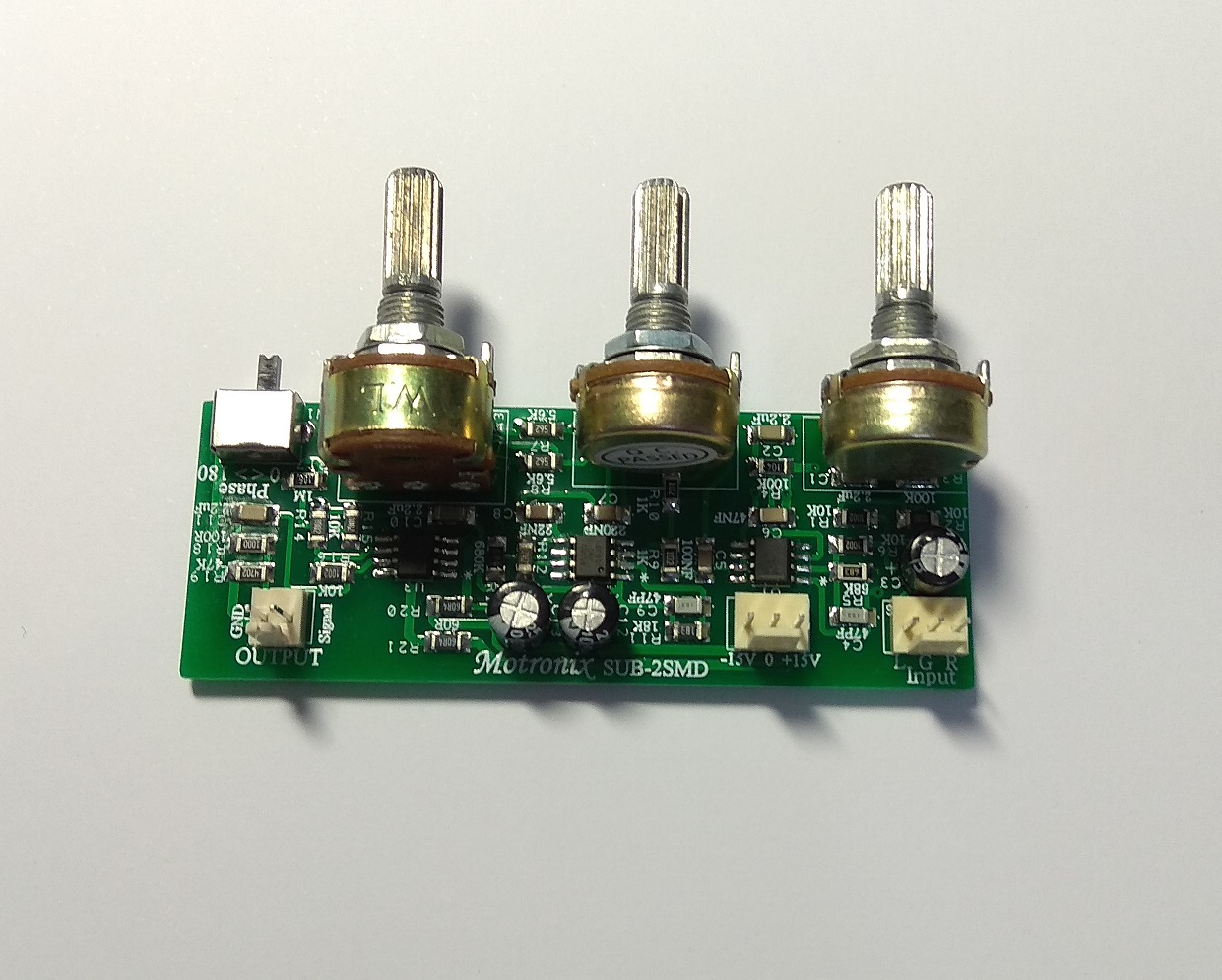

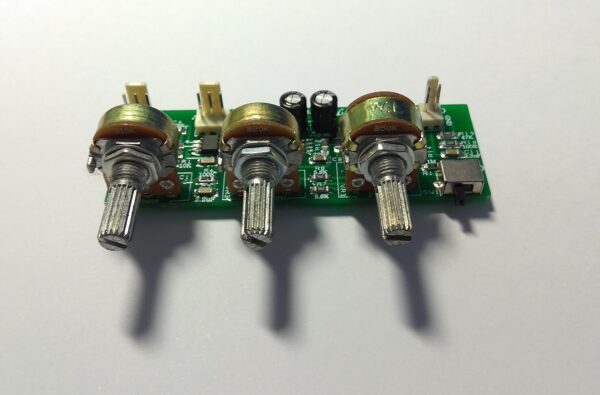

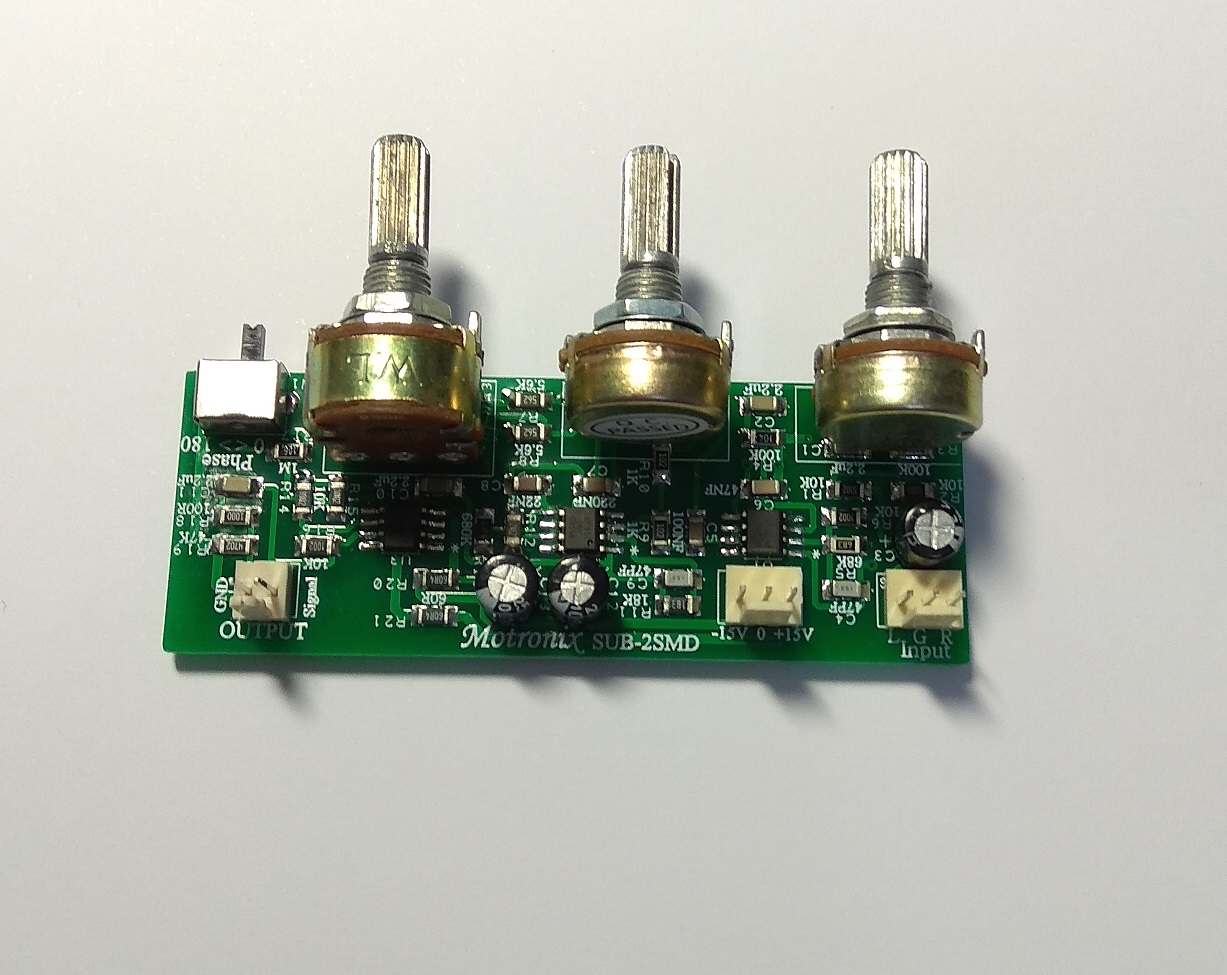

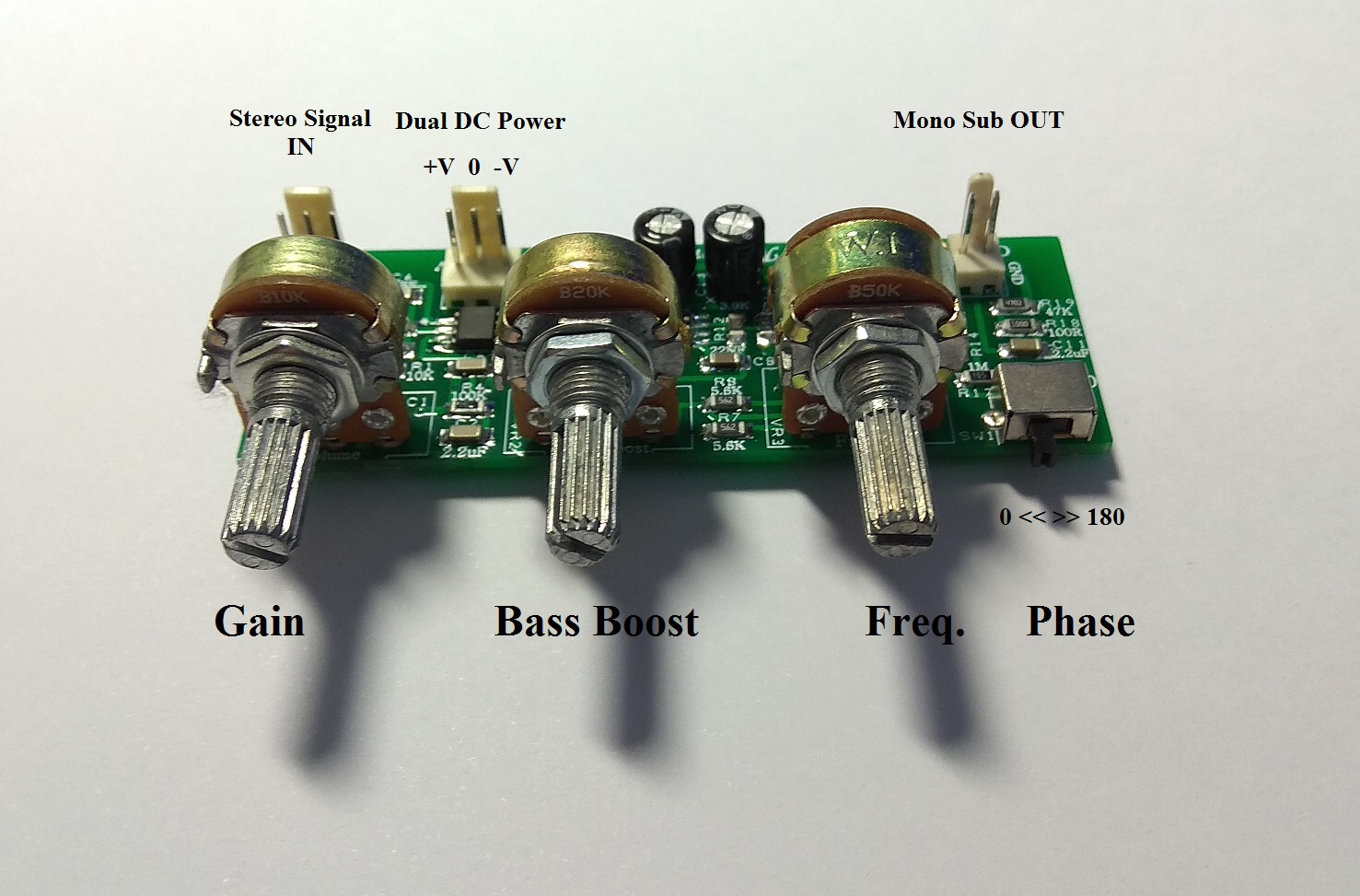

SUB-2SMD
Very High Quality Professional Active Subwoofer Low Pass Filter Crossover Preamp.
Parametric Frequency Control 40Hz~400Hz + Input Volume + Bass Boost 0-15db + Signal Phase Control
Assembled Board Ready to use!!!
High quality Product and reliability PCB FR4 1.6MM
Stereo Buffered Input To Mono Output
Amplification & Filter with Low Noise Op-Amp
We Use ONLY Original Genuine Parts
This item is only PCB with components Assembled

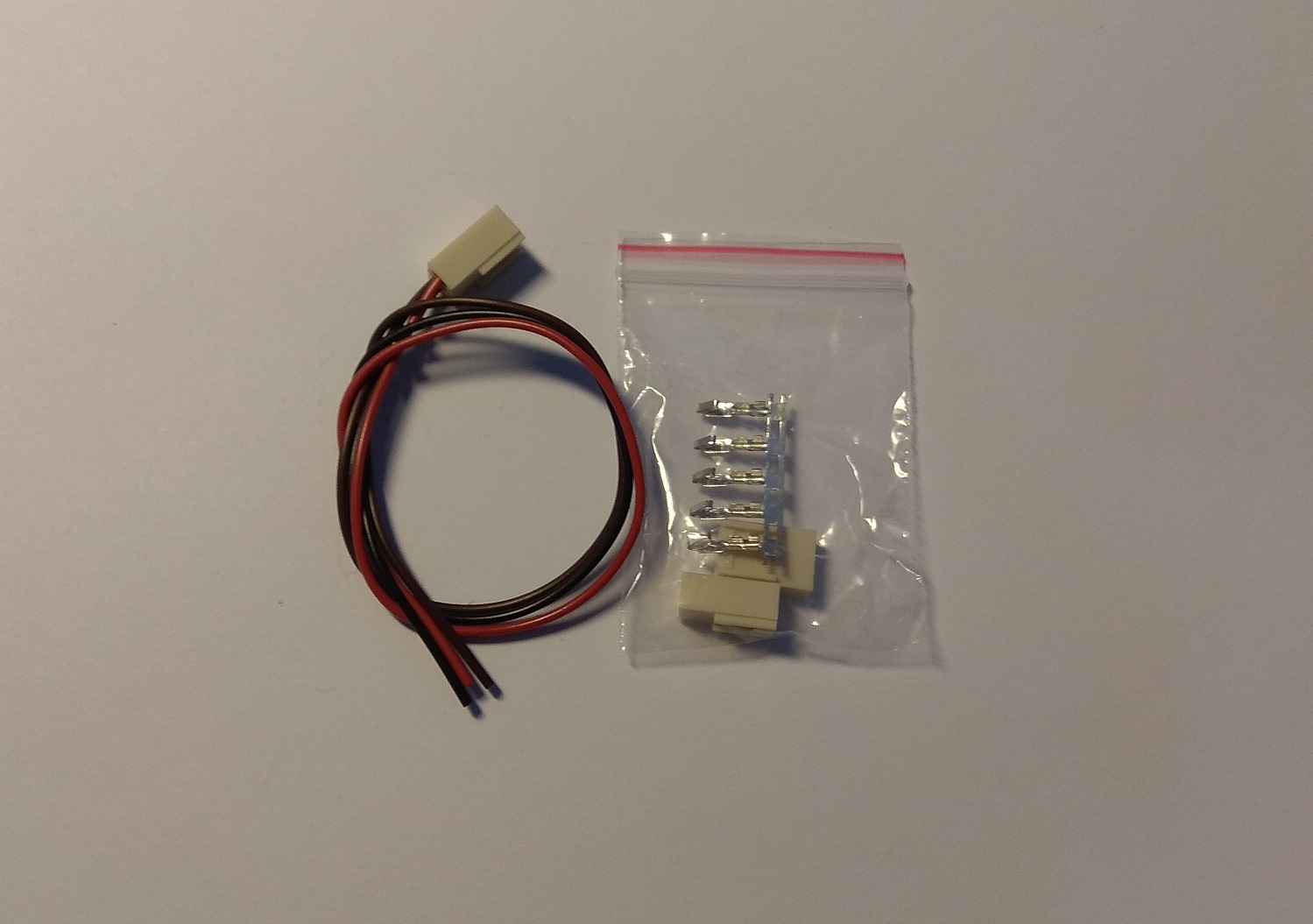

Input & Output Connectors will supply
Working Voltage : 2X12-18VDC (Best Performance @ 2x18vdc)
Recomended Voltage: 2X15VDC (Dual +/-15V)
Current Consumption: 8mA
Frequency Control : Low Pass Filter adjustable 40-400Hz 12db (Can customize by buyer request)
Bass Boost Control : 0-15db @ 45Hz Q Factor 4.6 (Can customize by buyer request)
Phase Level Control : 0 <> 180
Max Pre Out Voltage: 10Vrms @ 2x18vdc P.S (Typical 8Vrms @ 2x15vdc)
PCB Size: 83mm*38mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 25mm (Center to Center)
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier
