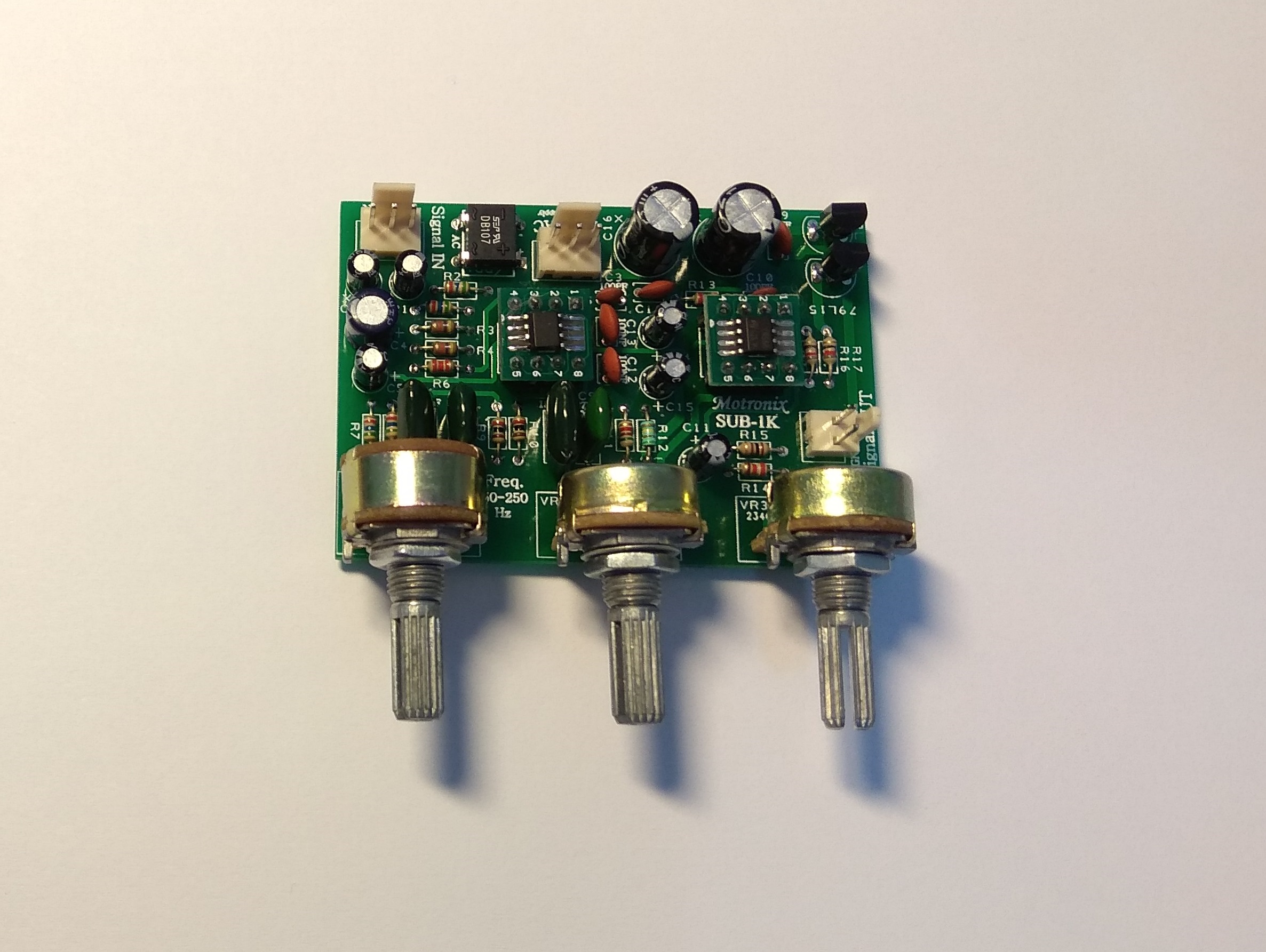

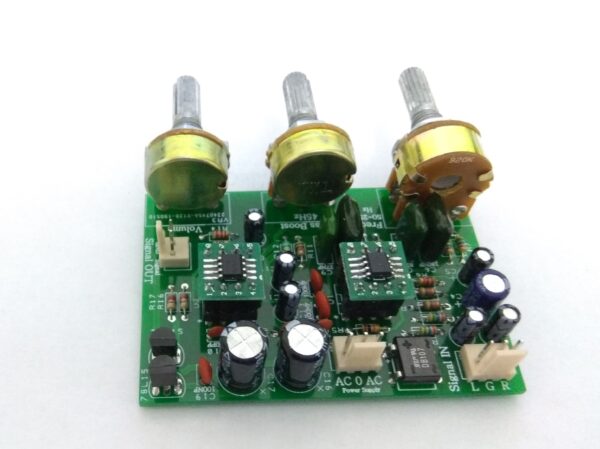

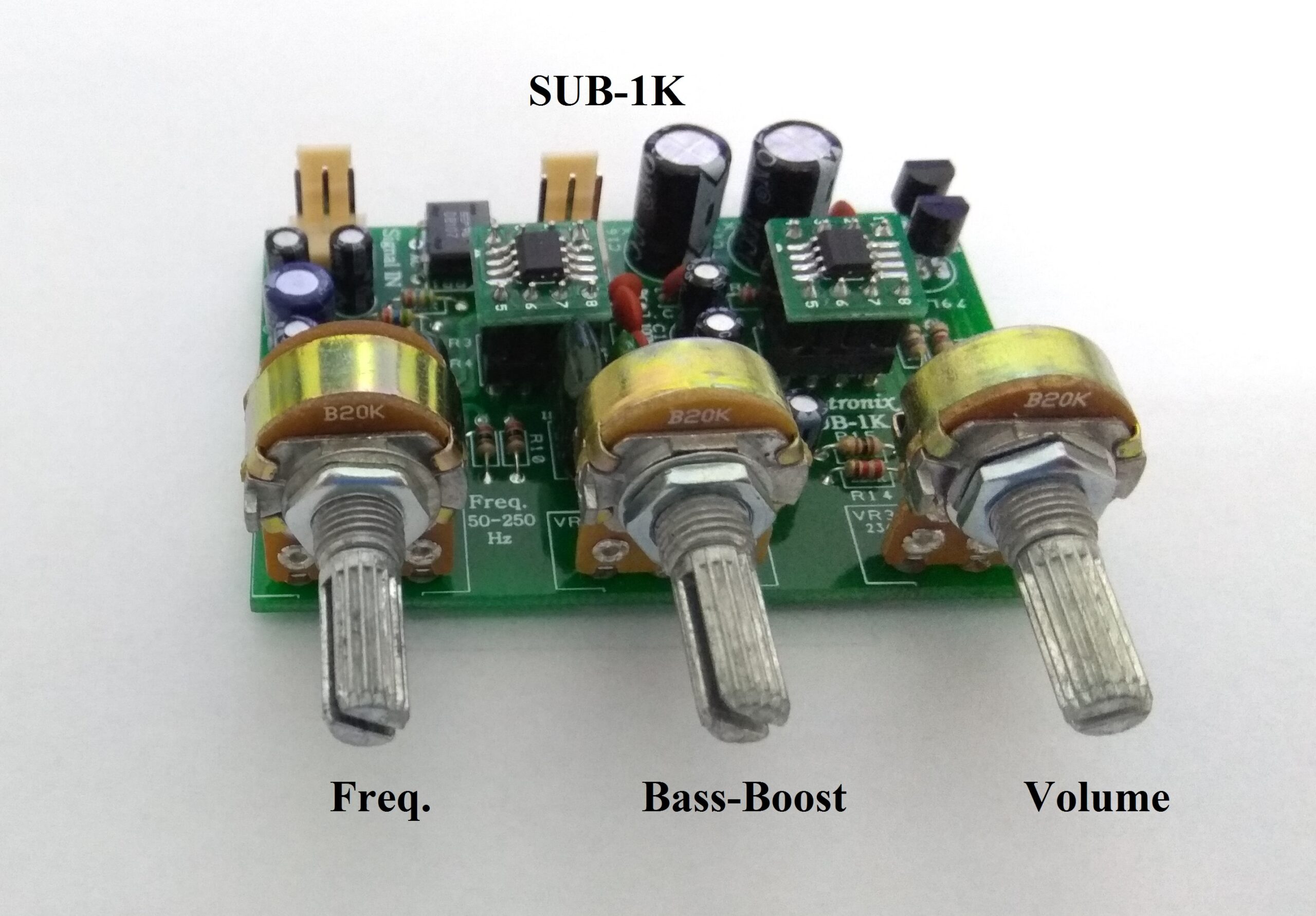

Subwoofer Low Pass Filter Electronic Crossover 50Hz~250Hz Assembled or DIY KIT with 45Hz Bass-Boost Model SUB-1K

$10.00$15.00

SKU: N/A Categories: ,

Description

SUB-1K
Subwoofer Low Pass Filter With Bass Boost
Electronic Crossover For Active Subwoofer
On Board Diode Bridge and Voltage Stabilizers
Amplification and Filter I.C = 4558/NE 5532
We Use ONLY Original Genuine Parts
2 Order Option:
1. DIY KIT You need to Place and solder all the components
2. PCB with components Assembled Ready to Use
 High quality Product and reliability FR4 1.6MM PCB
Stereo Input To Mono Output
Power Input : min.2x12Vac to 2x17Vac max. (Not DC)
Current Consumption: 8mA
Frequency Control : Low Pass Filter adjustable 50Hz~250Hz 12db
Bass Boost Control : 0-15db @ 45Hz

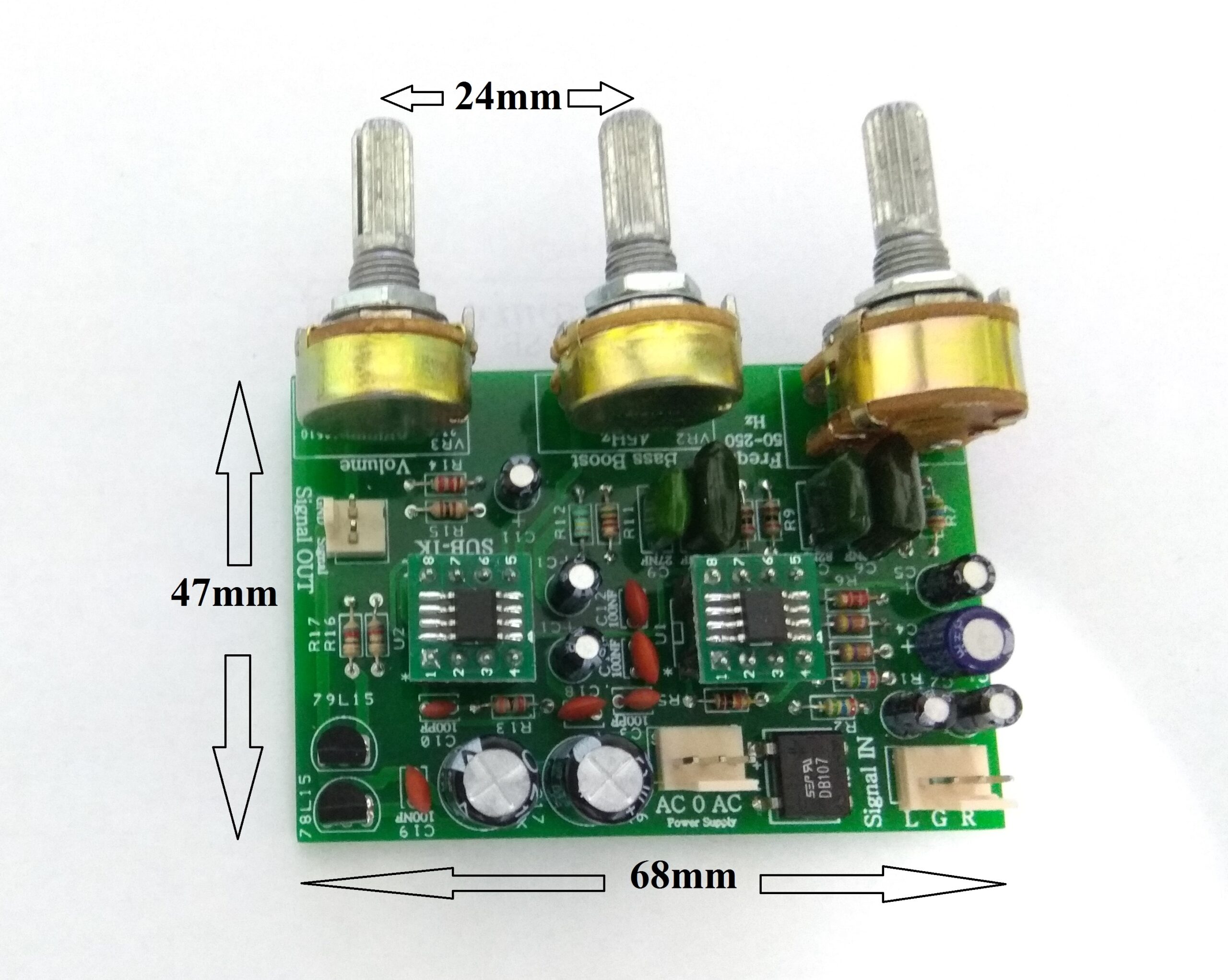

PCB Size: 68mm*47mm Green double-sided HAL,FR4 1.6MM
Potentiometer Gap: 25mm (Center to Center)
