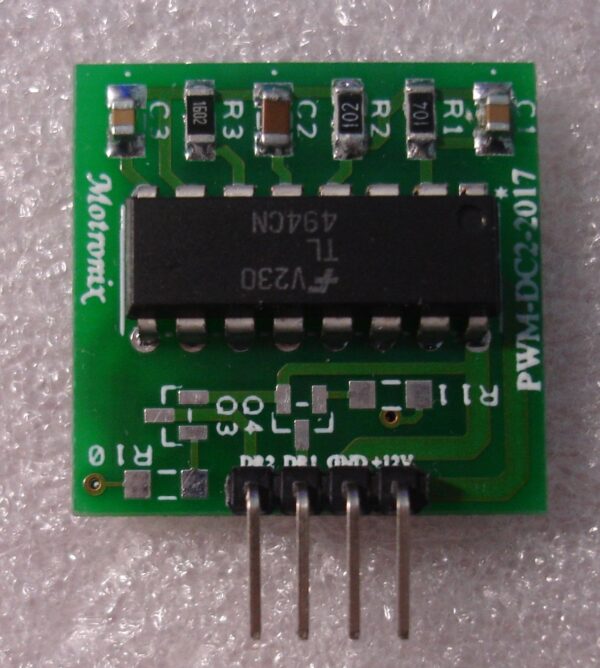

TL494 PWM Module Fixed Frequency Driver Board for DC/DC Converter/Inverter

High quality and reliability

Working Voltage: 9-25 VDC

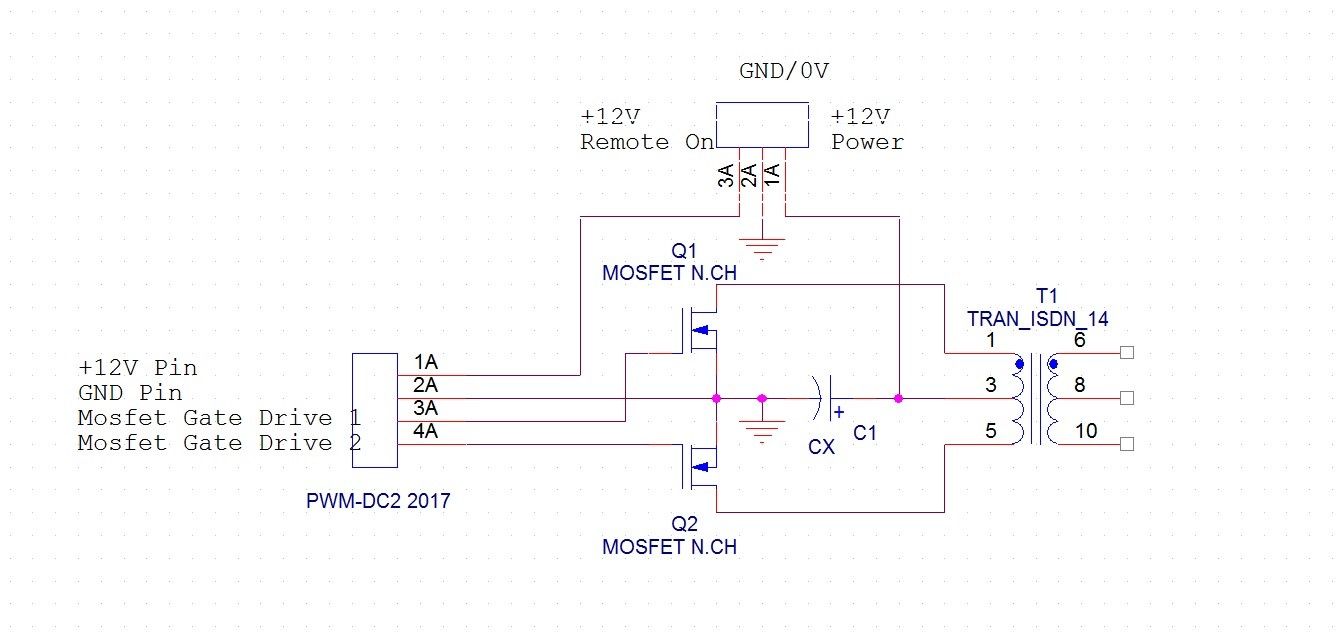

Frequency Drive: 38/50Khz (The module design is a double-ended push-pull output)

Oscillator frequency can be changed by C2/R3 Value

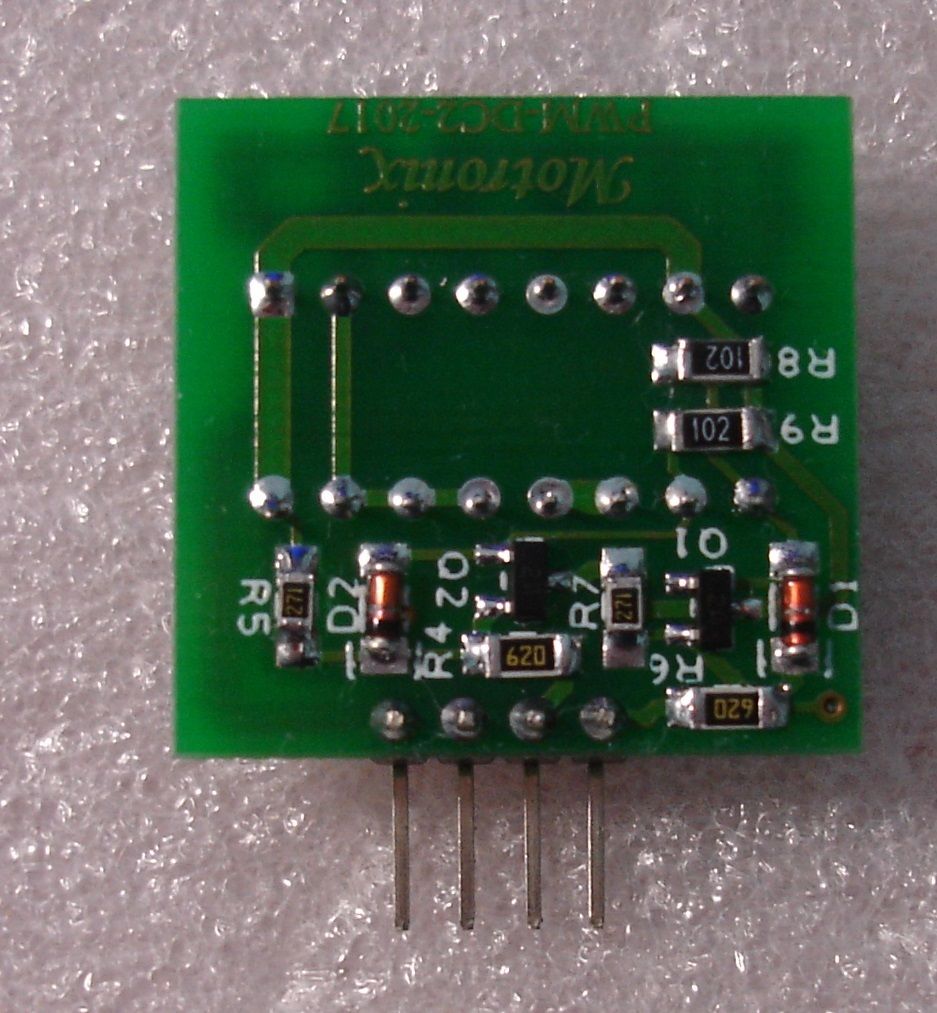

Size:. 25mm*25.5mm double-sided FR4 1.6MM

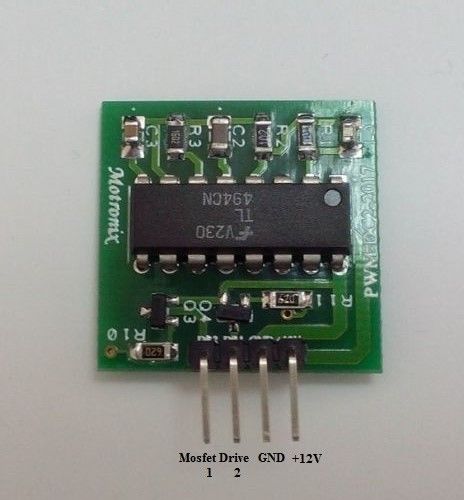

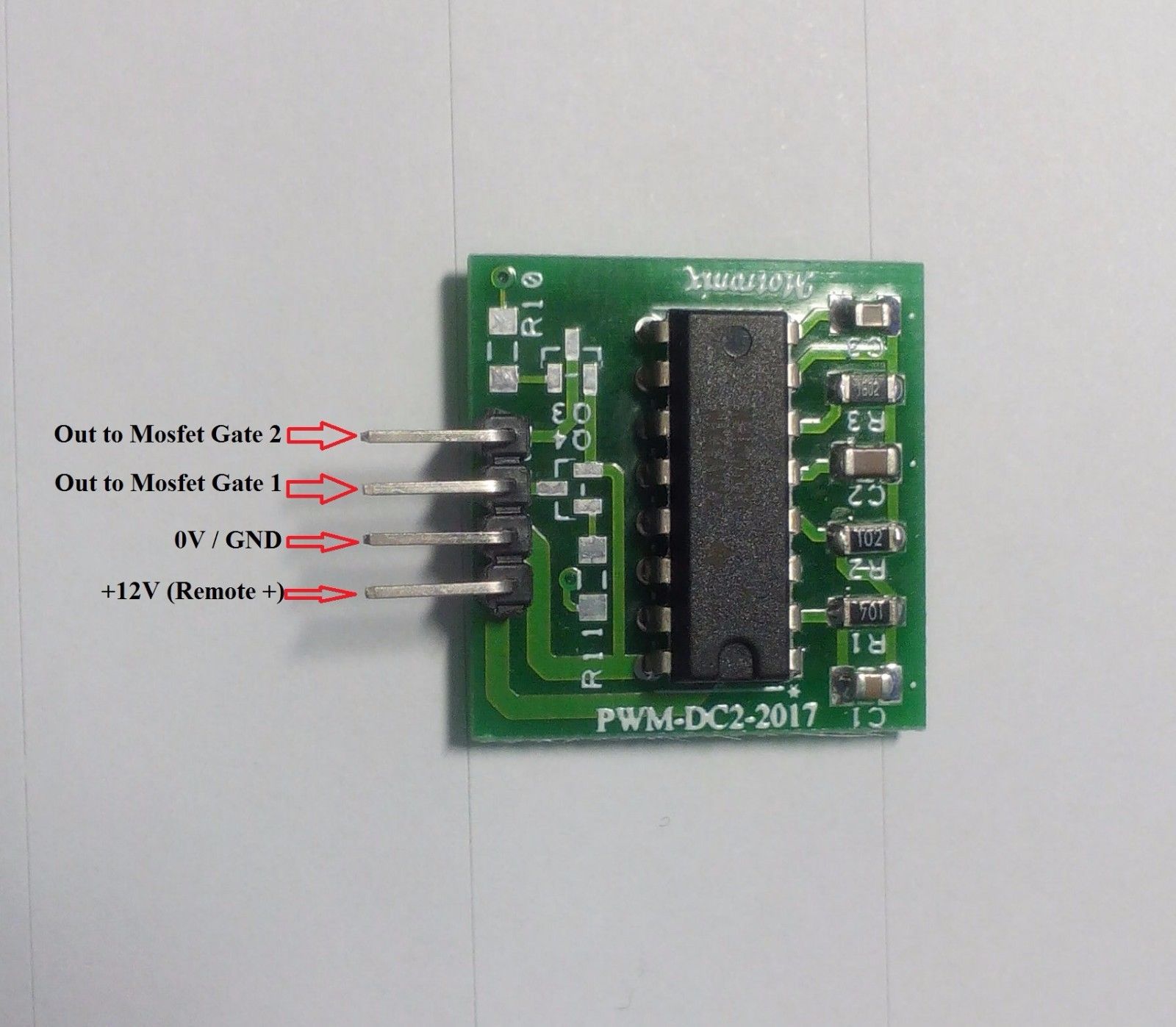

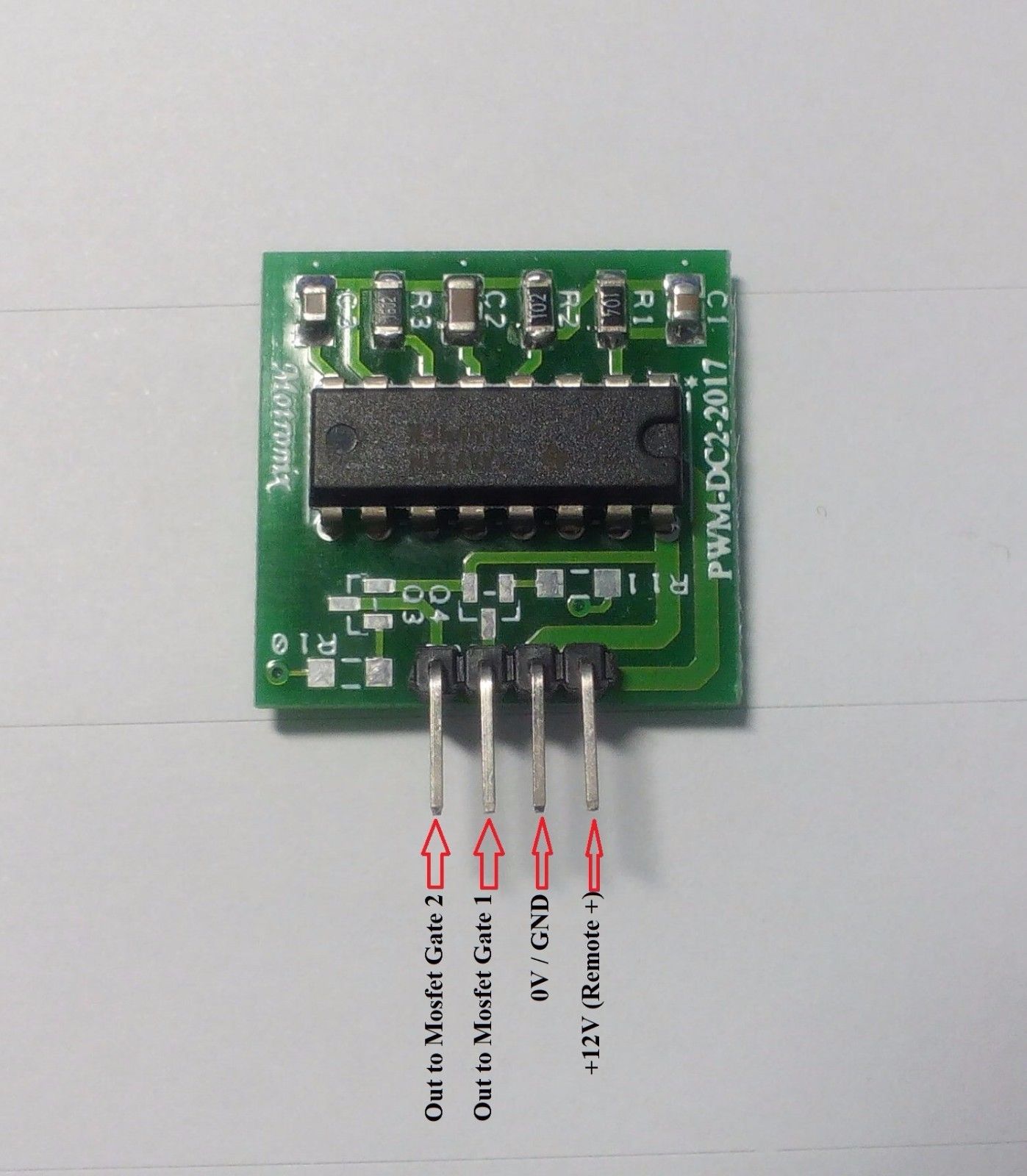

4 PIN PCB Connection: +12V GND/0V Drive 1 Drive 2

Applications: DIY Car Power Supply, Switching Power Supply, DC/DC converters, Inverters, Electric Power Systems
