TN-90 Analog VU Meter Driver With Light dimmer. Passive Read from Speaker OUT

$6.00

Add to Wishlist

Model

Clear

SKU: N/A Category: VU Meters & Peak detectors

Description

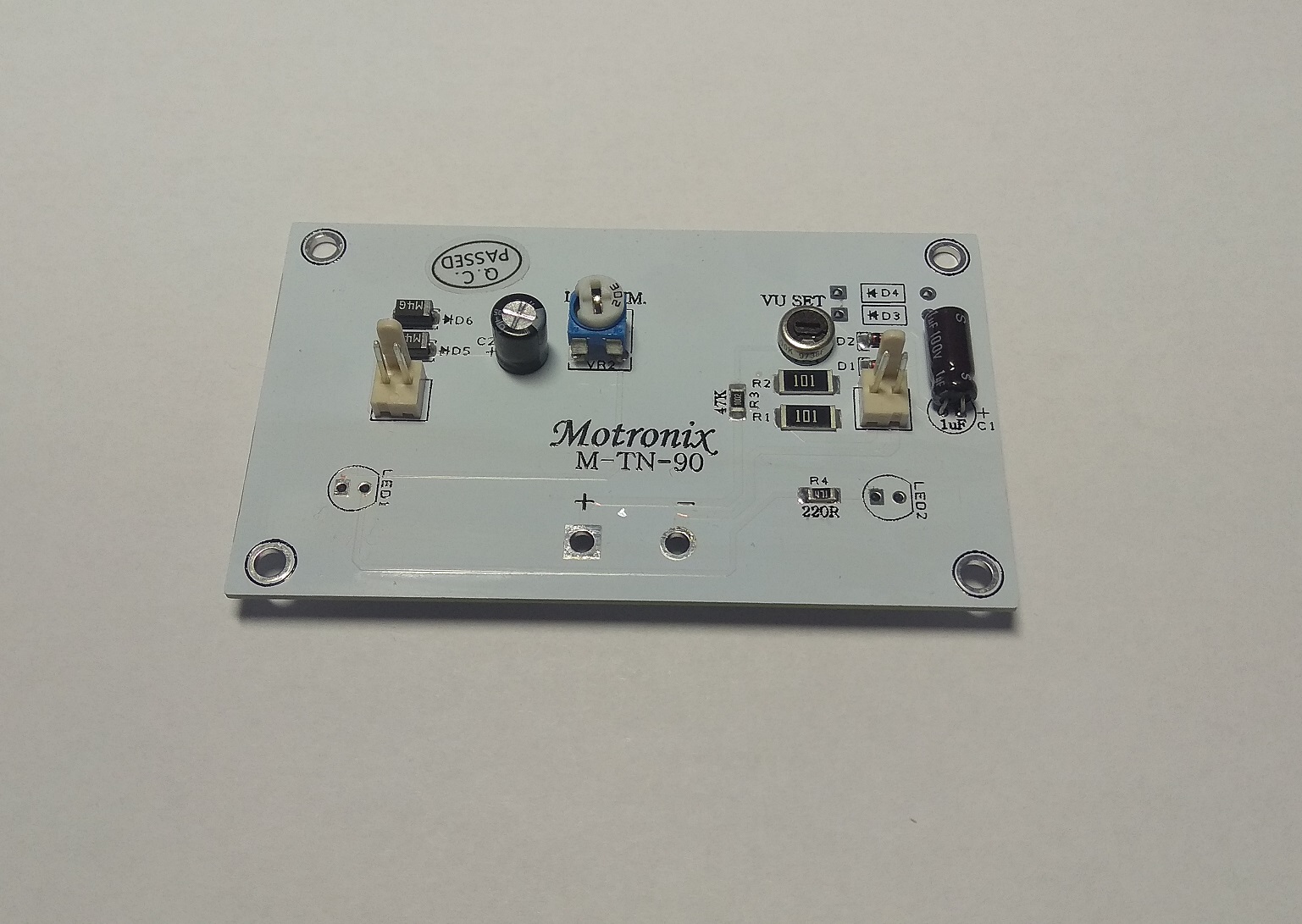

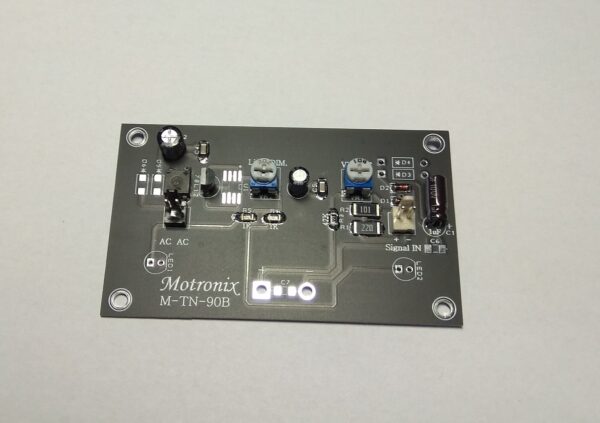

M-TN90 / M-TN90B

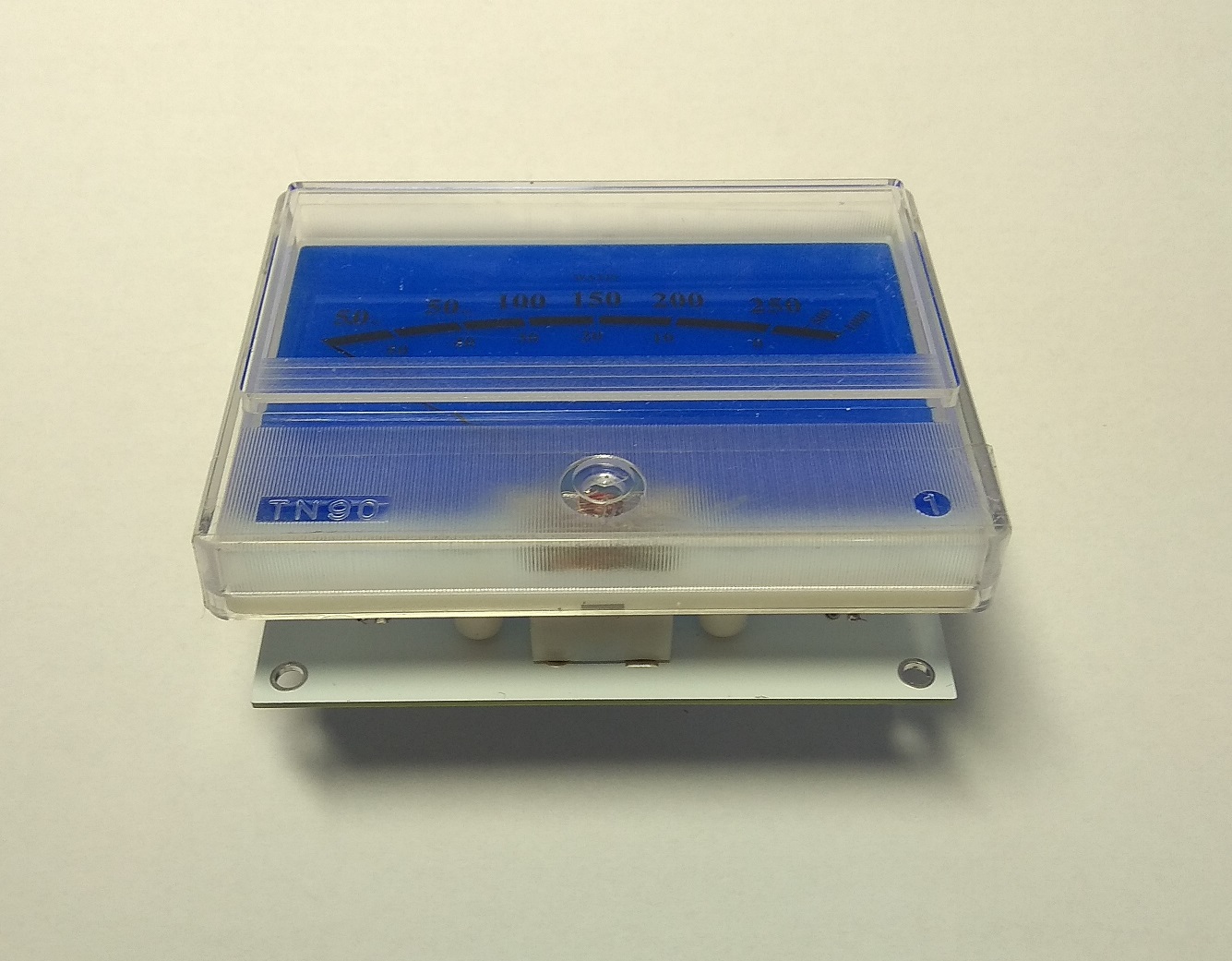

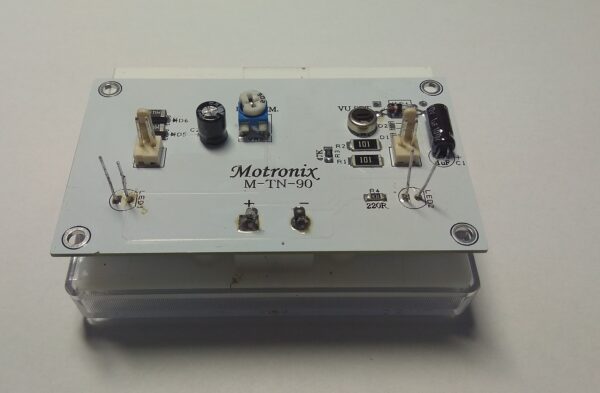

Direct fit the TN-90 VU Meter

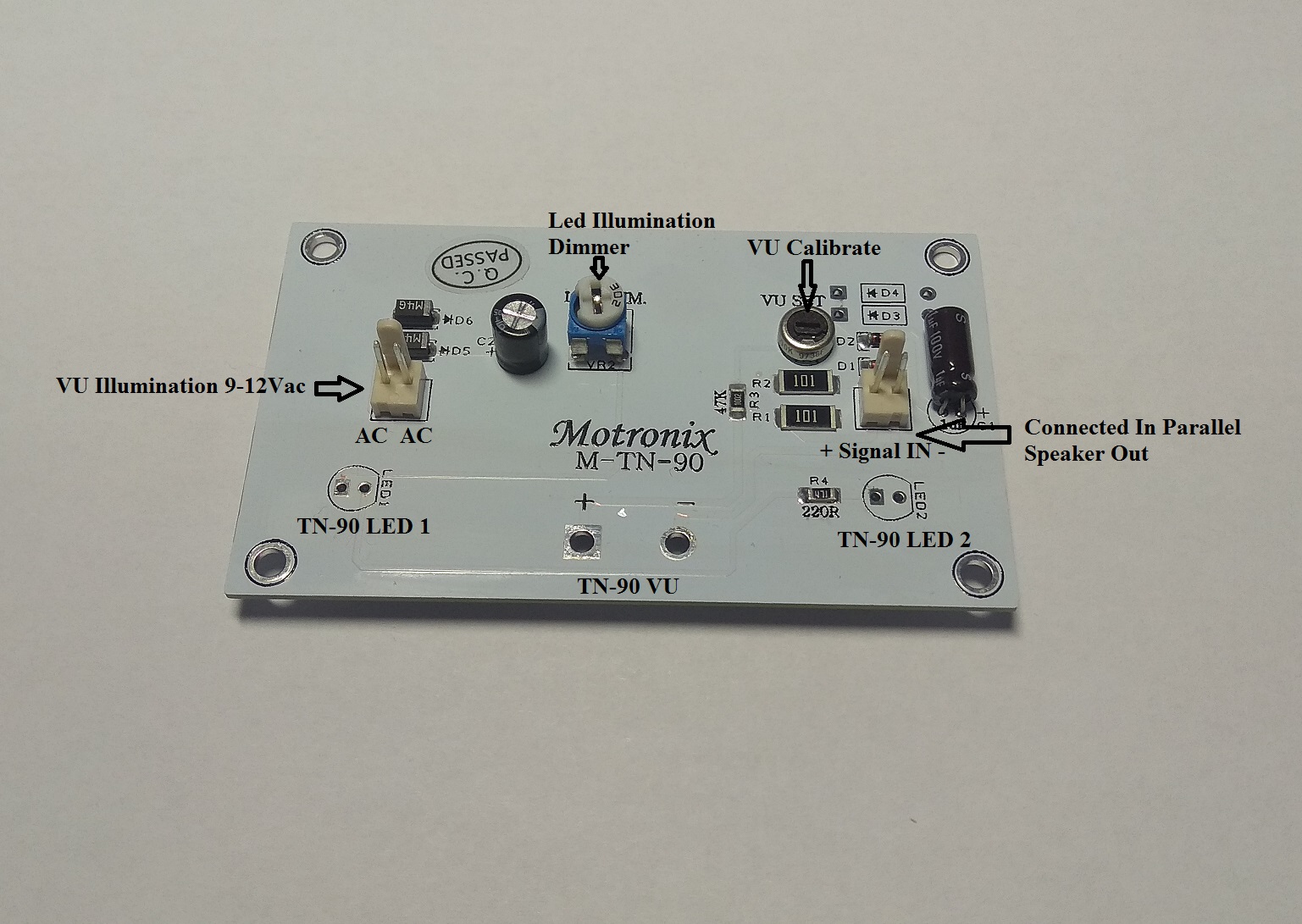

Passive Module (Get signal from Amplifier speaker output)

On board Level adj. trimmer

On board illumination LEDS dimmer

This SALE is only PCB Without TN-90 VU Meter

illumination Voltage : 9-12Vac 100mA (You need to buy/connect to small transformer)

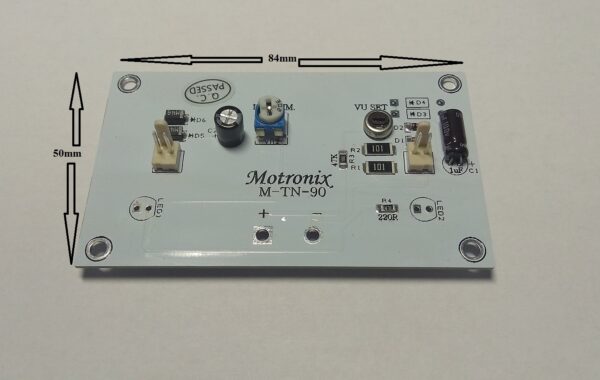

**PCB Size: 84mm*50mm double-sided HAL,FR4 1.6MM**

Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier , PA/DJ Pro Amplifier

Additional information

Model	M-TN-90, M-TN-90B
