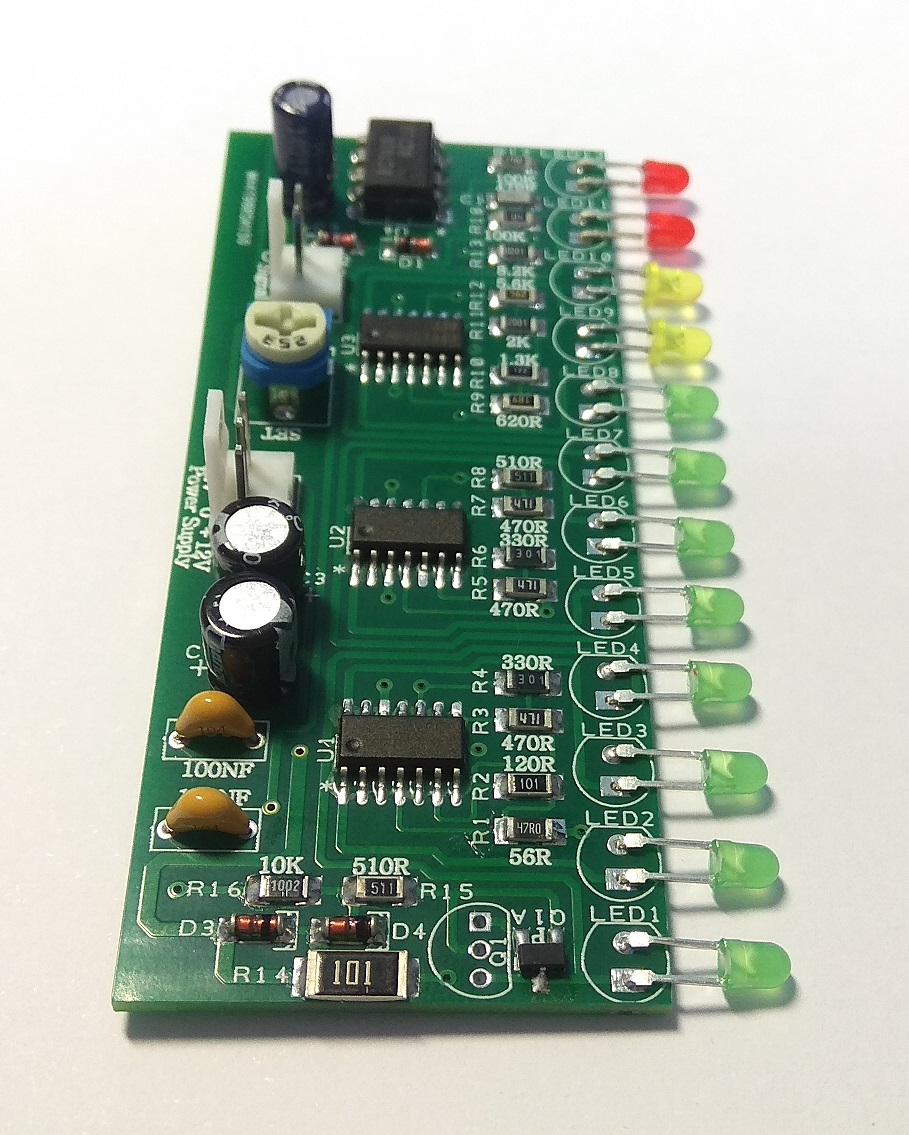

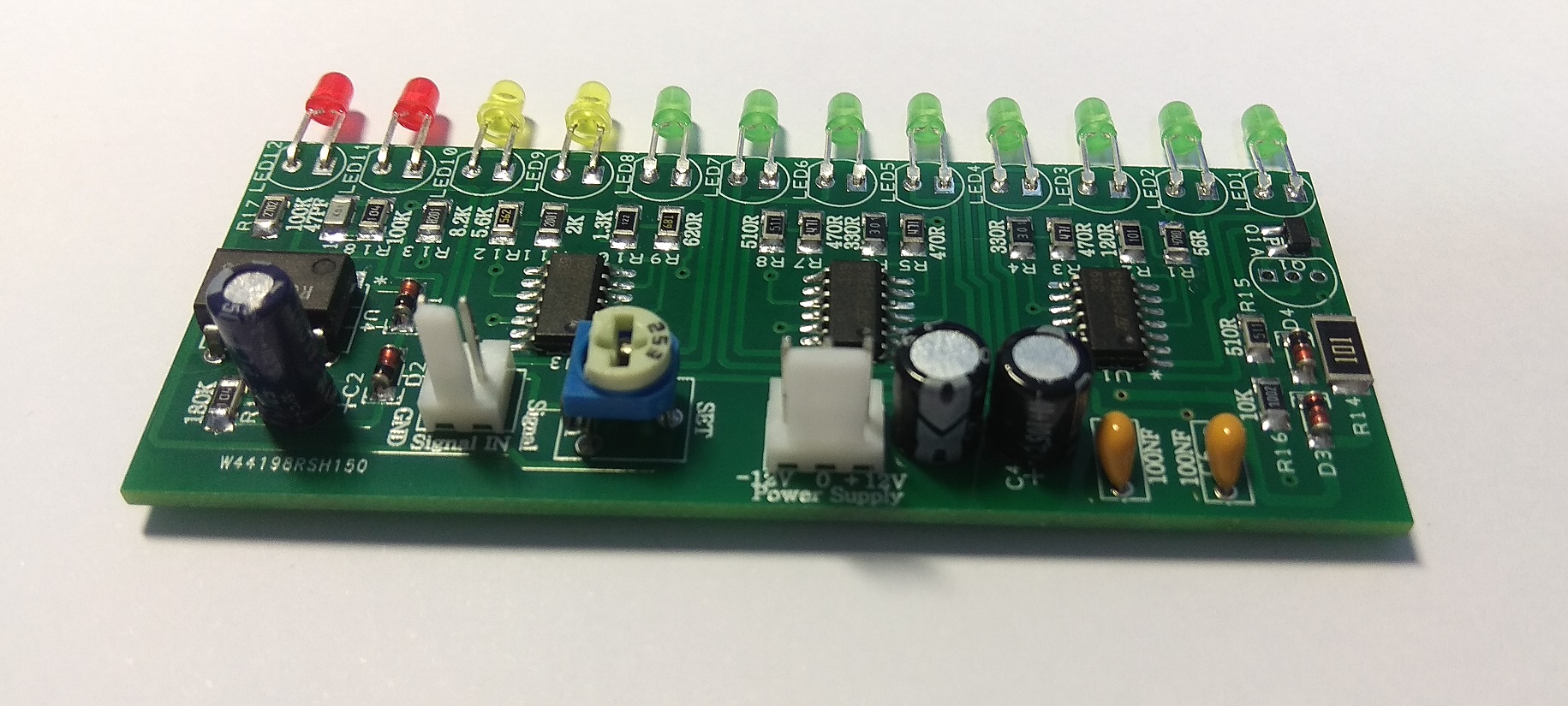

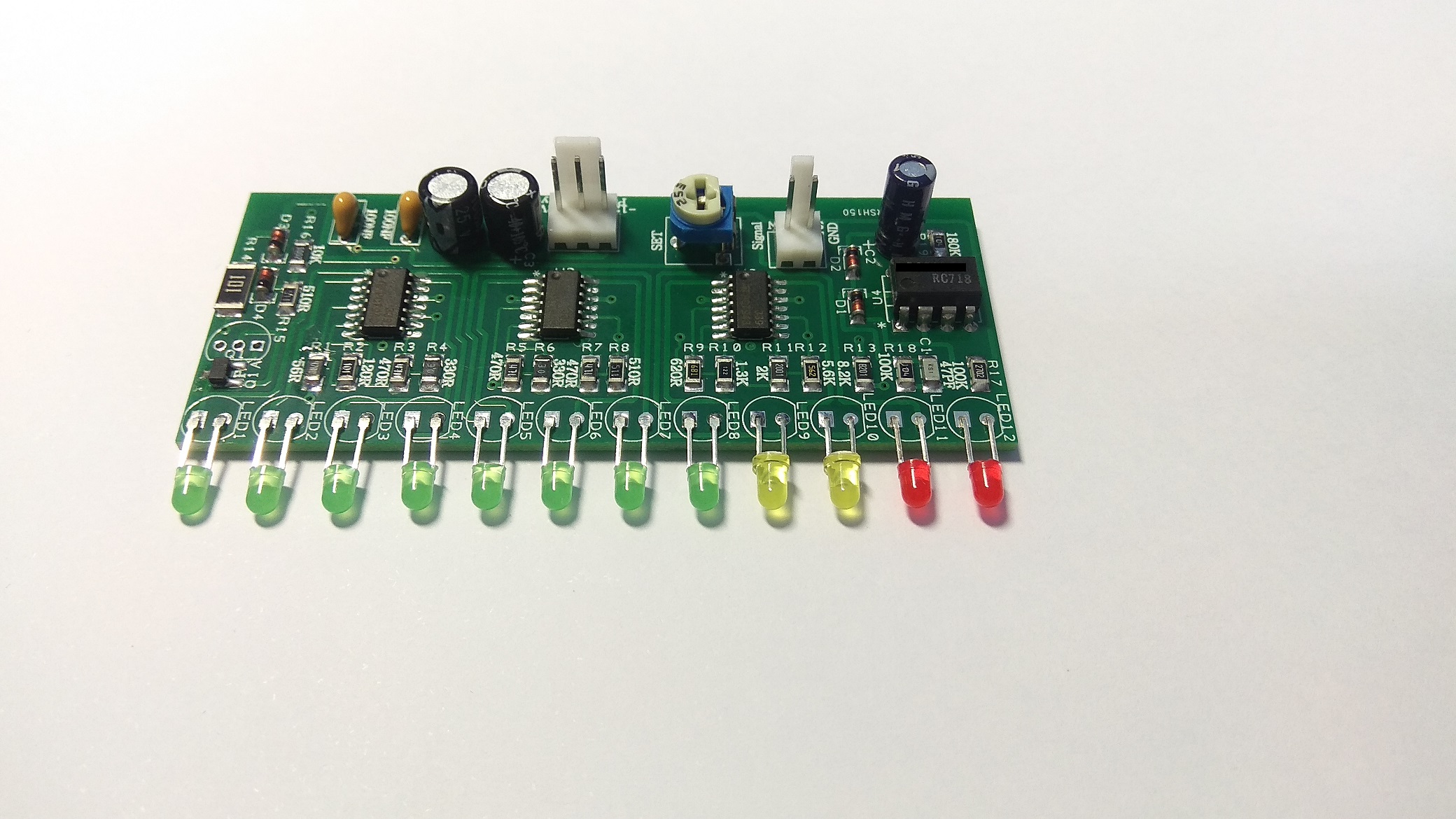

M-VU12 Stereo VU Meter for professional use and recording with 12 Led’s

SKU: N/A Category:

Description

M-VU12
VU Meter for professional use and recording
Price for 2 PCB
12 LEDs
3 Model Option
M-VU12 3db: -21 -18 -15 -12 -9 -6 -3 0 +3 +6 +9 +12
M-VU12 Rev.4CN: -30 -25 -13 -9 -7 -4 -2 0 +2 +5 +8 +15
M-VU12 Rev.2BR: -25 -18 -9 -6 -3 -1 0 +2 +4 +6 +9 +15
All models with Precision Peak Rectifier
Working Voltage: Dual Regulated 15Vdc (+15V 0 -15V)
PCB Dimension : 84mm x 35mm
Leds Gap : 7mm
Applications: Power Level Indicator/VU Meter

Additional information

Model

M-VU12 3db, M-VU12 Rev.4CN, M-VU12 Rev.2BR
