Description

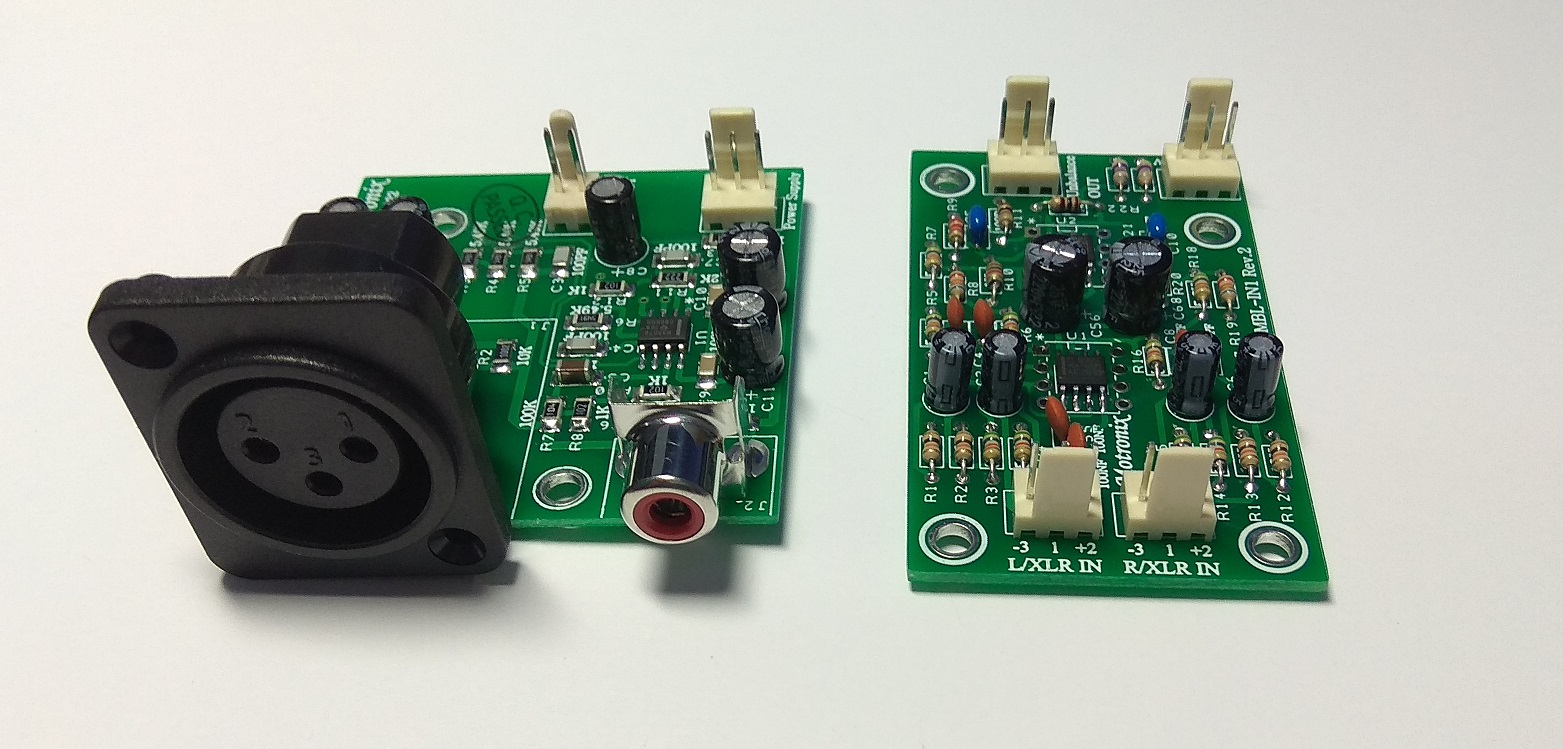

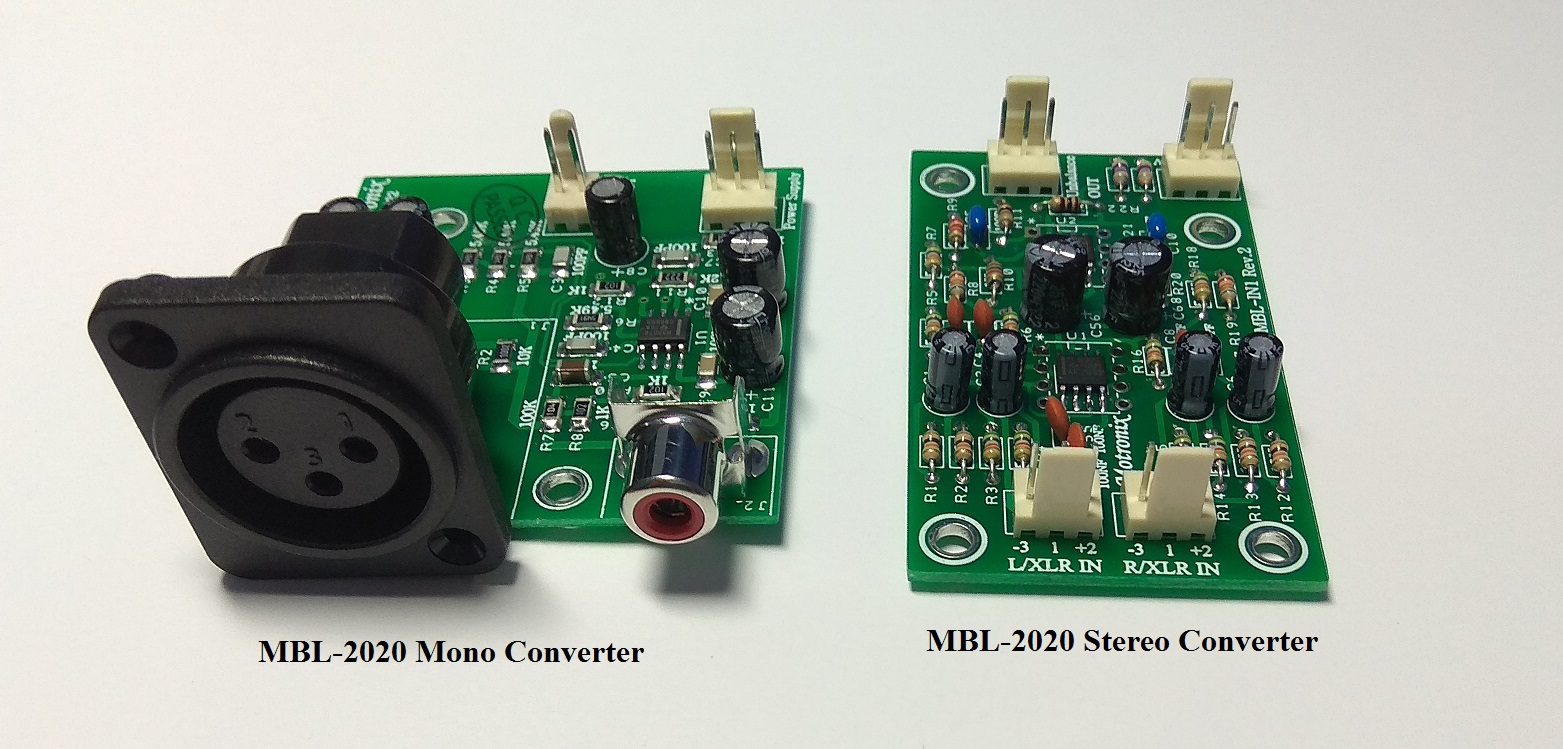

MBL-2020/MBL-IN1
Mono or Stereo Balance to Unbalance Driver Stage Modules
Low Noise OP Amp

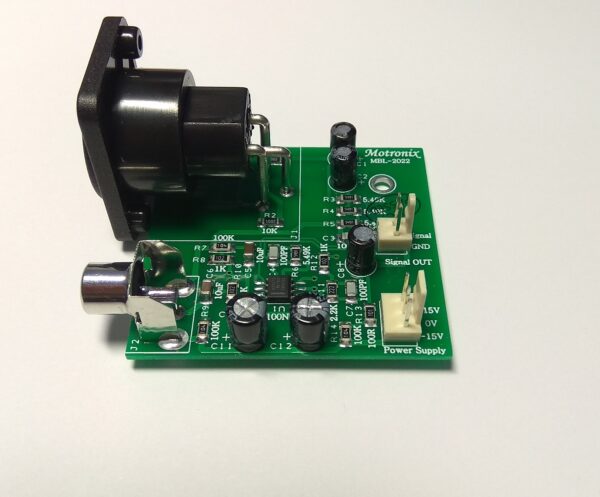

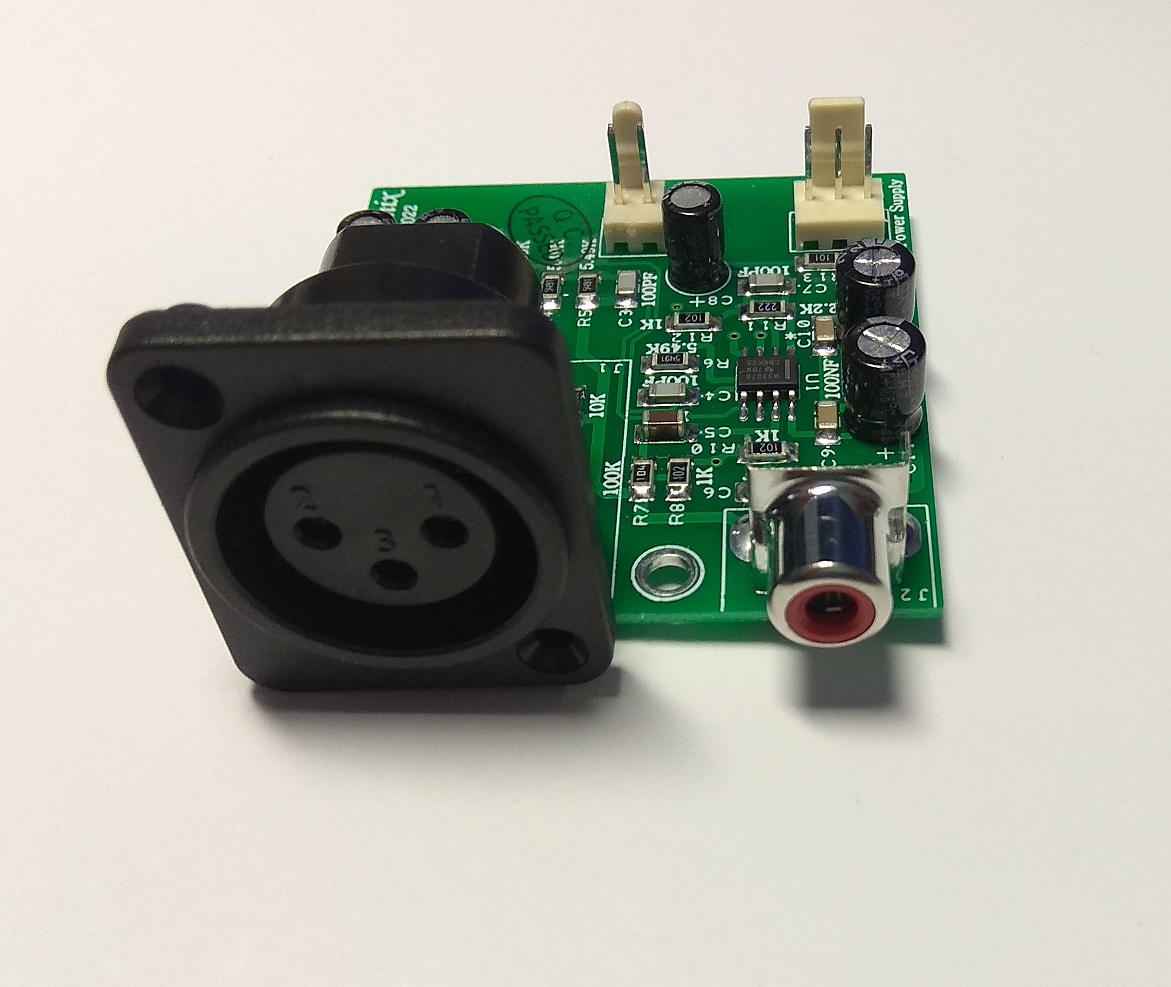

MBL-2020: Mono PCB with Balance XLR and UnBalance RCA Input Connectors

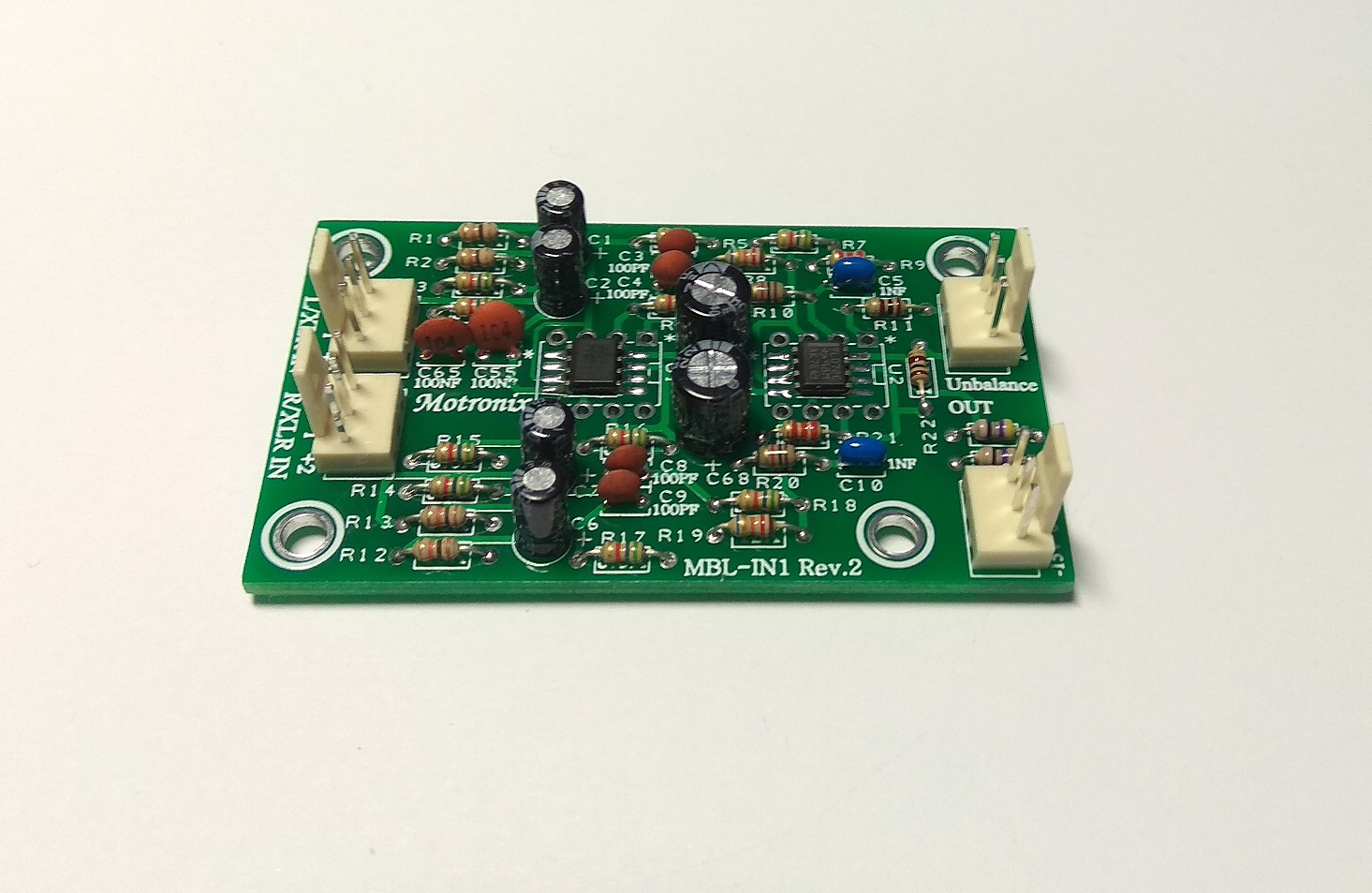

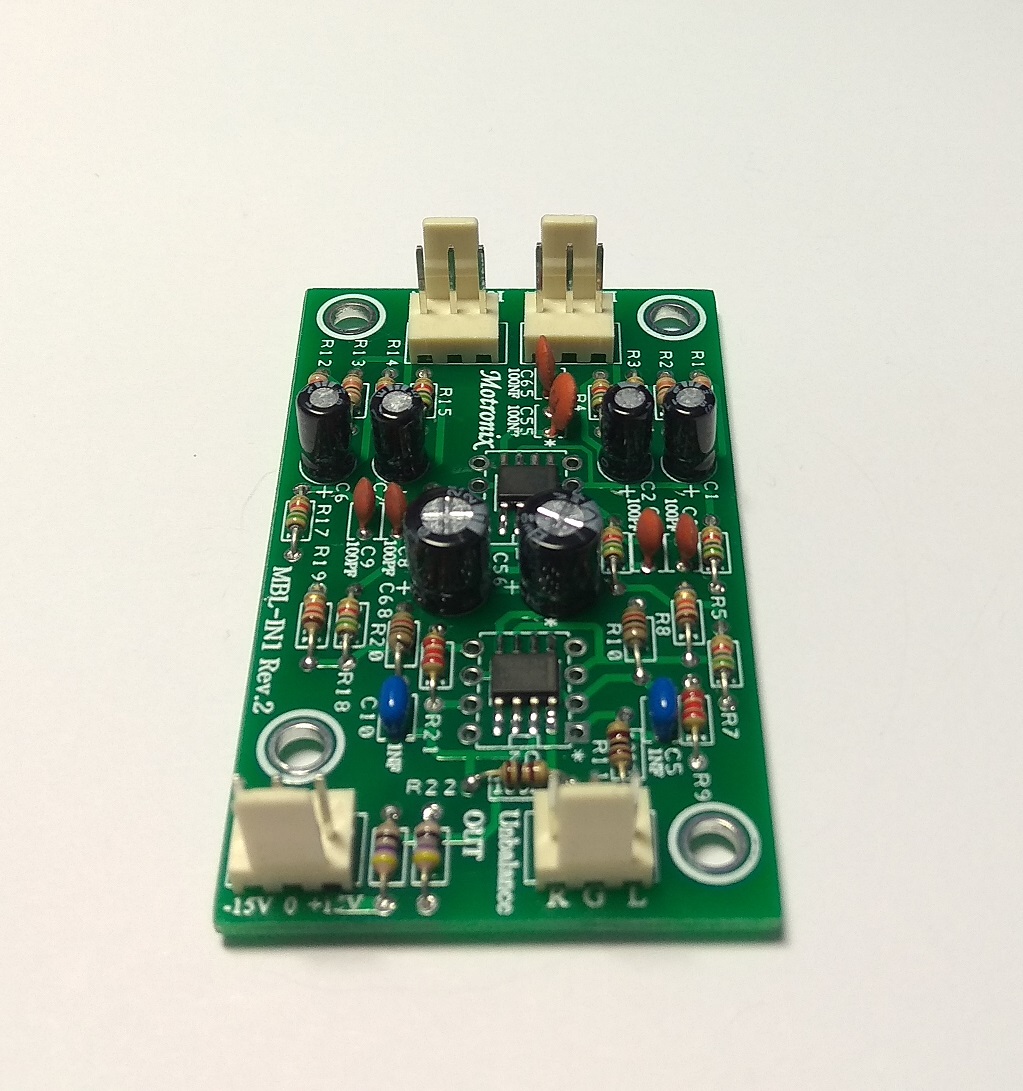

MBL-IN1: Stereo PCB with 2 Balance Molex Inputs
Assembled Ready to Use
High quality Product and reliability FR4 1.6MM PCB
Working Voltage : min.2x12Vac to 2x15Vac max. (Regulated DC)
Current Consumption: 4.5-9mA
Freq. Response: 15Hz-100Khz
PCB Size:

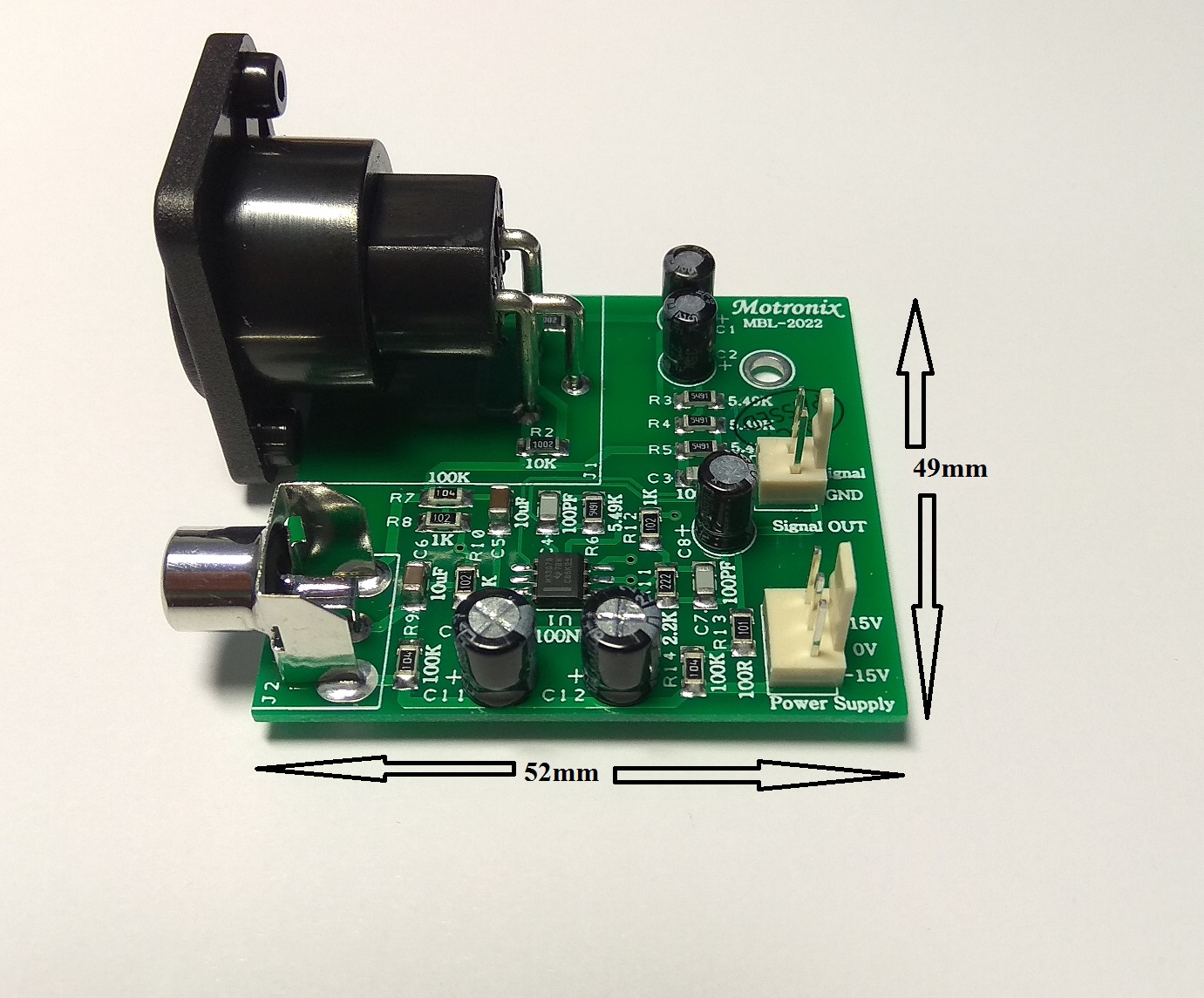

MBL-2020: 52mm*49mm Green double-sided HAL,FR4 1.6MM

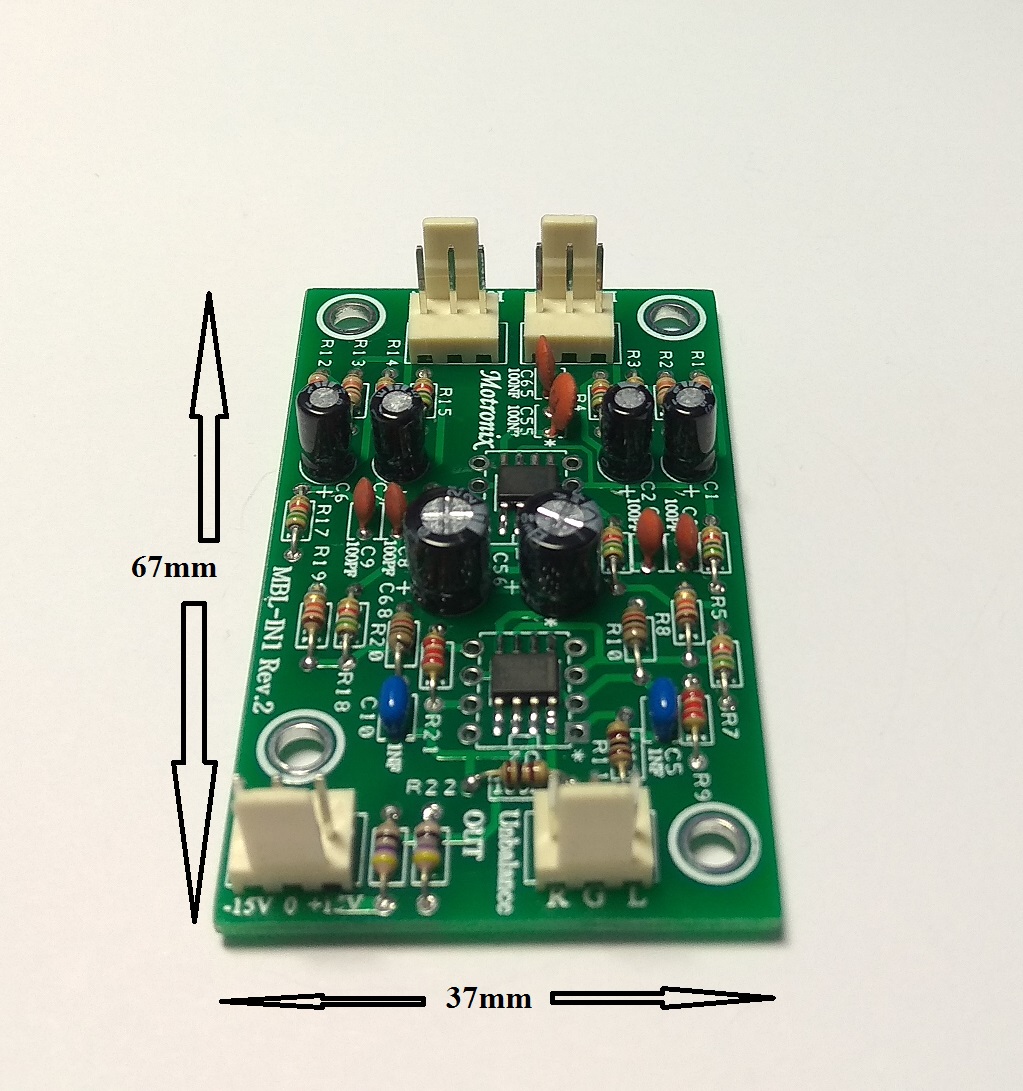

MBL-IN1: 63mm*37mm Green double-sided HAL,FR4 1.6MM
***ALL On Board M/F Connectors and Pins provided***
