XLR-Y1 Stereo XLR/Balance Input to Unbalance Output Driver Stage for Power Amplifiers W.Vol

Availability:

5 in stock

Description

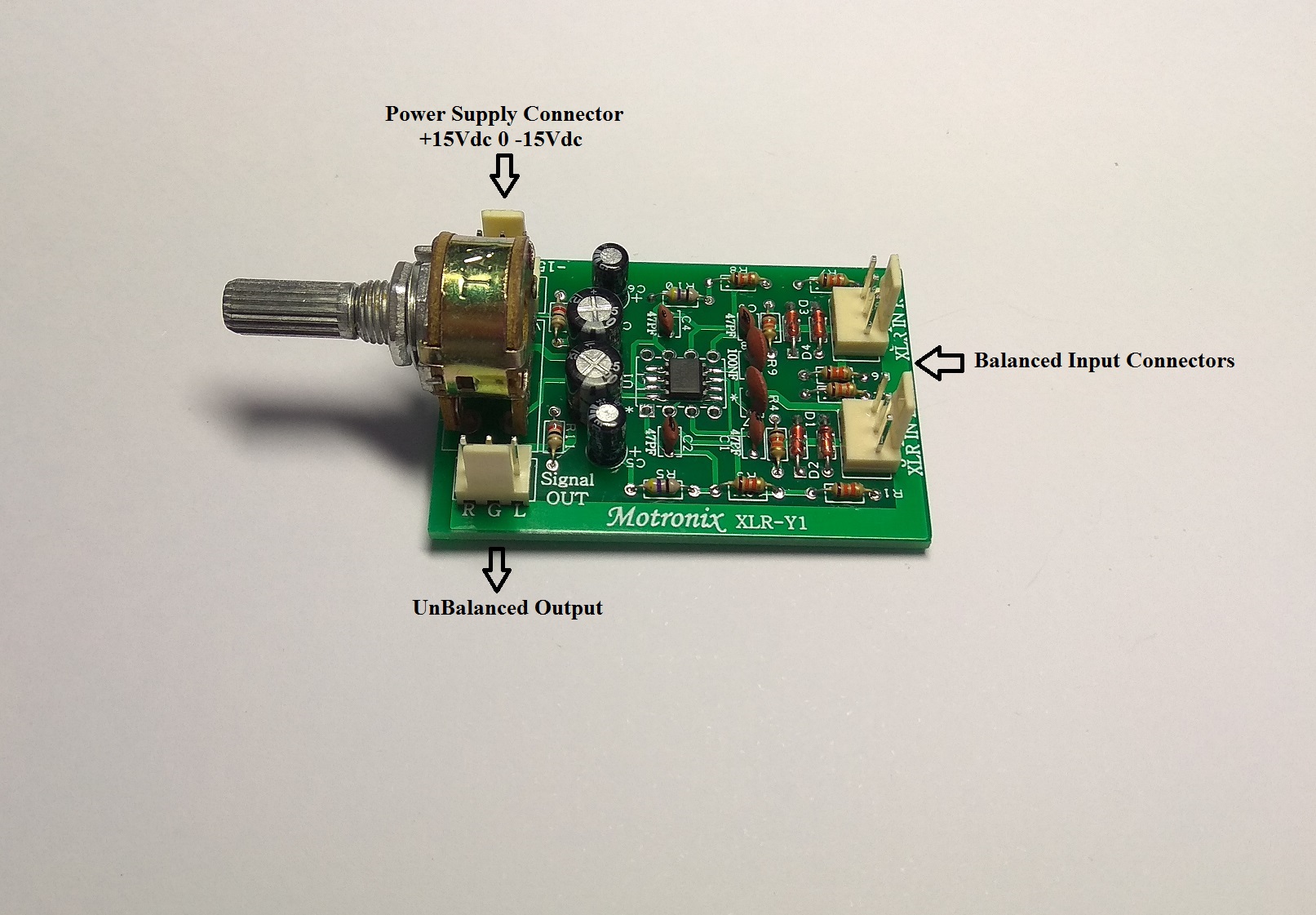

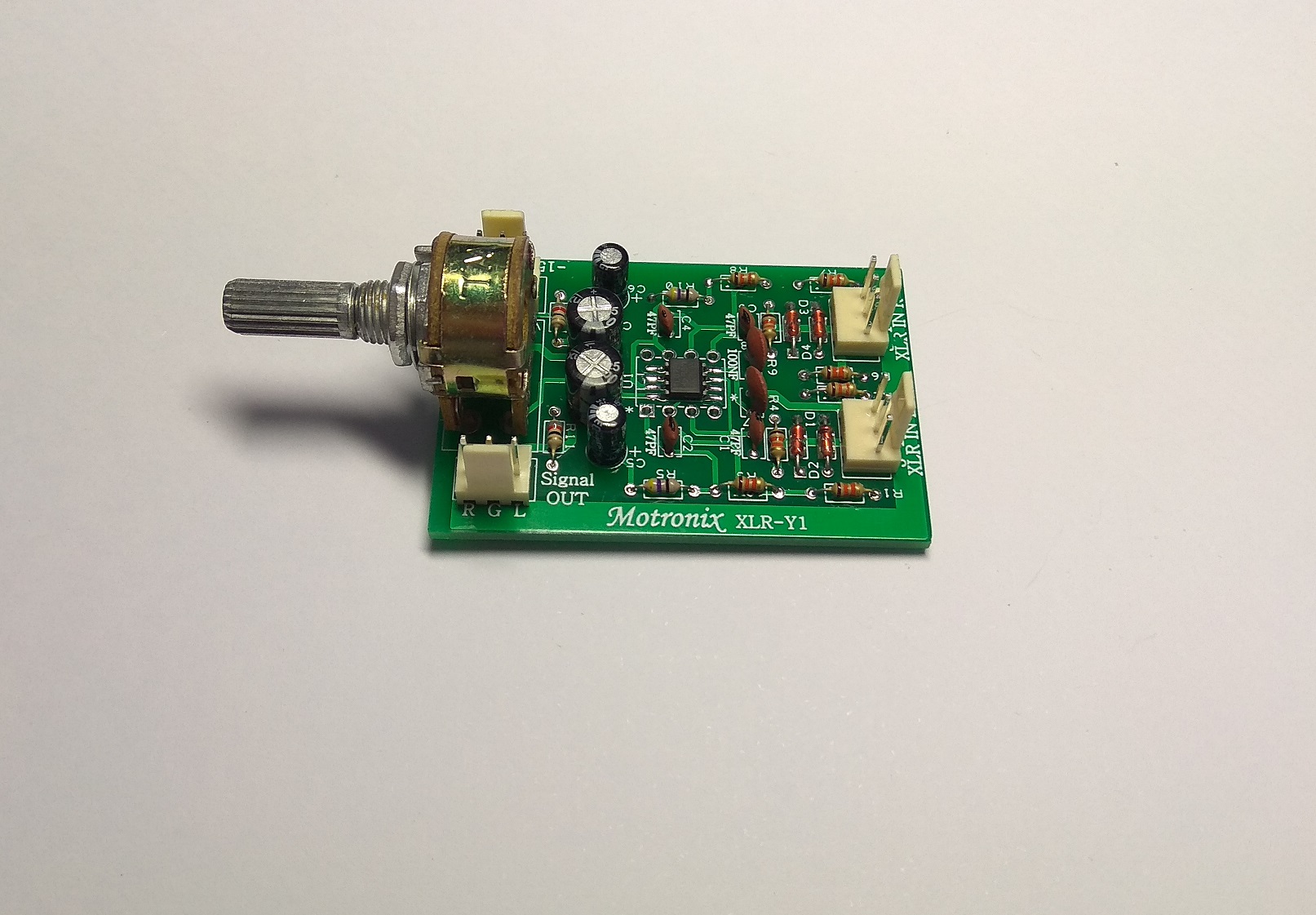

XLR-Y1
Stereo Balance to Unbalance Power Amplifier Driver Stage
This item to Drive all DIY Power amplifiers boards that don’t have Balance Input
Low Noise OP Amp (DIP-8 or SO8)
Balance Input converter to Unbalance With Volume Control
Very simple to build and connect
Working Voltage : min.2x12Vac to 2x15Vac max. (Regulated DC)
Current Consumption: 2.5-9mA
Freq. Response: 15Hz-100Khz
Max Input Level: 4Vrms Balance 8Vrms Unbalance
PCB Size: 53mm*32mm Green double-sided HAL,FR4 1.6MM
***ALL On Board M/F Connectors and Pins provided***
